10. Appendix A: Recommended Cable
Recommended Cable Configurations: DC Supply to Driver
Cable length, wire gauge and power conditioning devices play a major role in the performance of your RMS
Technologies Driver and Motor.
NOTE: The length of the DC power supply cable to the Driver should not exceed 50 feet.

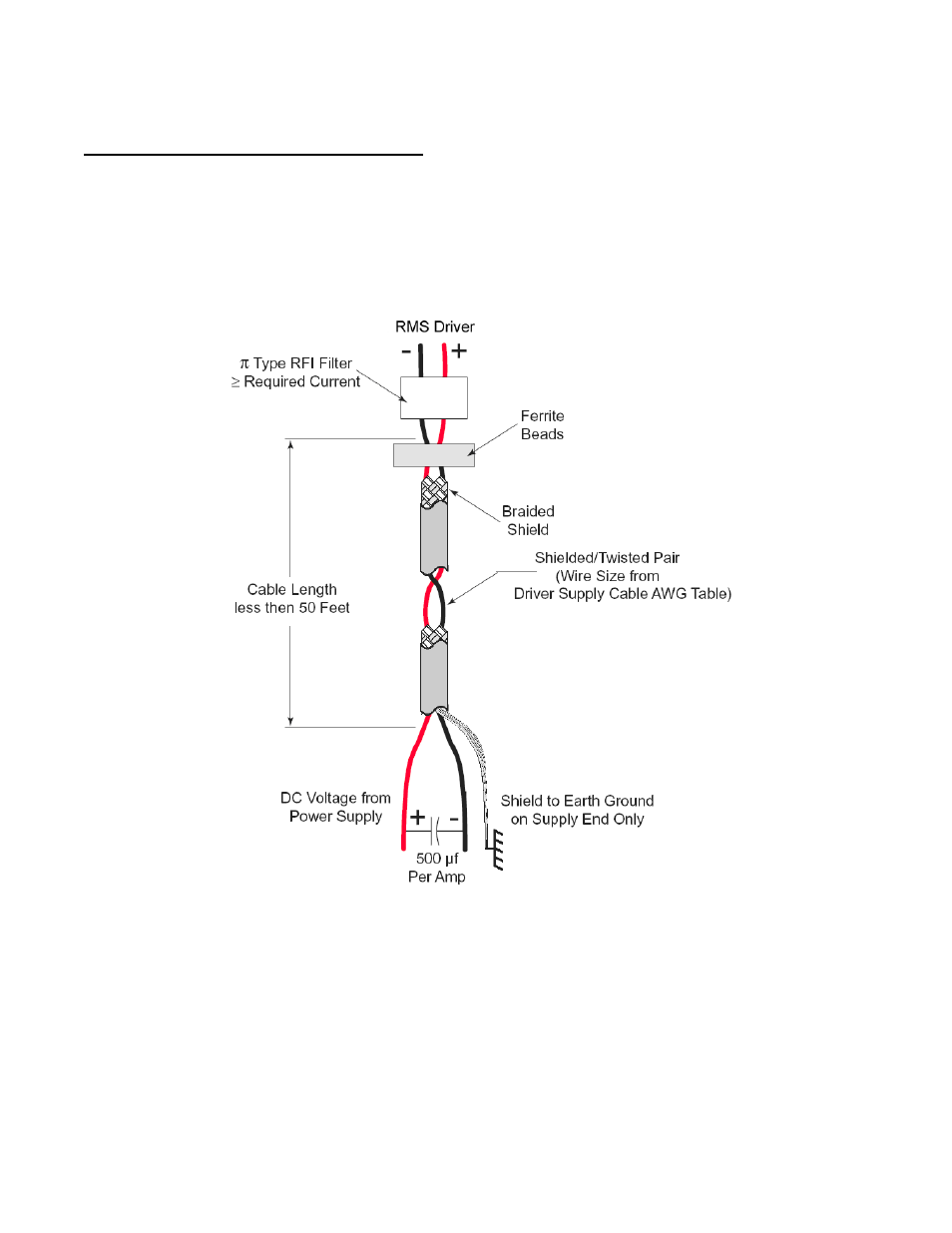

Example A – Cabling Under 50 Feet, DC Power
Example A demonstrates the recommended cable configuration for DC power supply cabling under 50 feet long.
If cabling of 50 feet or longer is required, the additional length may be gained by adding an AC power supply
cable.
Correct AWG wire size is determined by the current requirement plus cable length. Please see the Driver Supply
Cable AWG Table in this Appendix.
