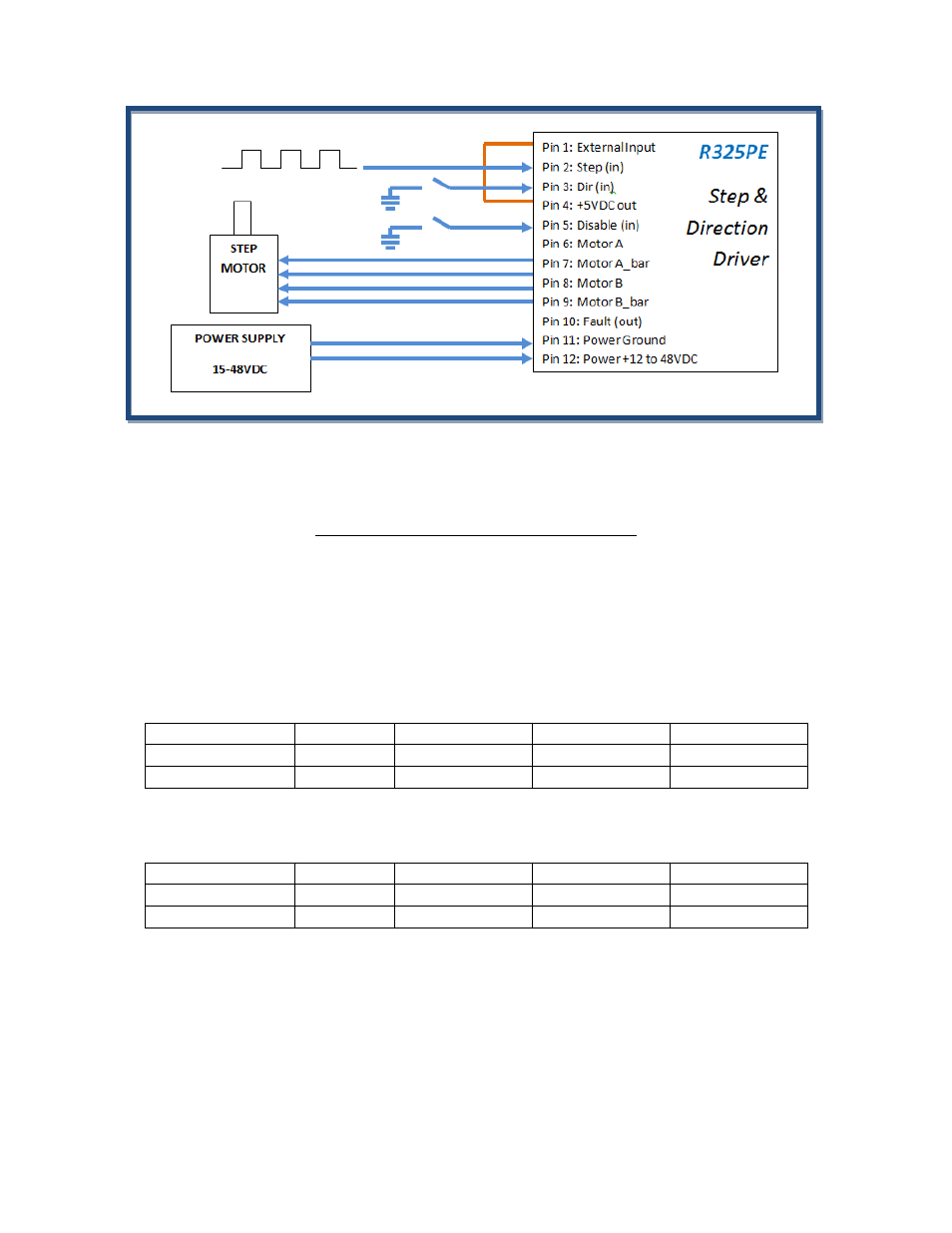

Figure 6.1
Using the R325P with more than 5V
You can choose to supply the optos with the R325P’s internal 5V supply by jumping pins 1 to 4. But if you
choose to use more than 5V, for example, a 24V supply and the step pulse train is also a 0 to 24V low-high
signal, please use the following recommended resistor to limit the current to 10 mAmps. Note: no resistor will
be needed on the actual opto supply line, pin 1.
Step & Direction lines have a 470 ohm internal resistor
Voltage:
5V
10V
12V
24V
Ohms needed:
0
500
1000
2000
Wattage rating:
0
¼ watt
¼ watt
¼ watt
Table 6.1
Disable line has a 1k ohm internal resistor
Voltage:
5V
10V
12V
24V
Ohms needed:
0
1000
1900
3800
Wattage rating:
0
1/8 watt
1/8 watt
¼ watt
Table 6.2
