Coupling size 1° angular
misalignment
2° angular
misalignment
3° angular
misalignment
4° angular
misalignment
E20 0.078 (0.198) 0.156 (0.396) 0.234 (0.595) —
E30 0.095 (0.241) 0.189 (0.480) 0.284 (0.721) —
E40 0.116 (0.295) 0.231 (0.587) 0.347 (0.881) —
E50 0.142 (0.361) 0.284 (0.721) 0.425 (1.080) —
E60 0.153 (0.389) 0.305 (0.774) — —
E70 0.161 (0.409) 0.323 (0.820) — —
E80 0.196 (0.498) 0.393 (0.998) — —

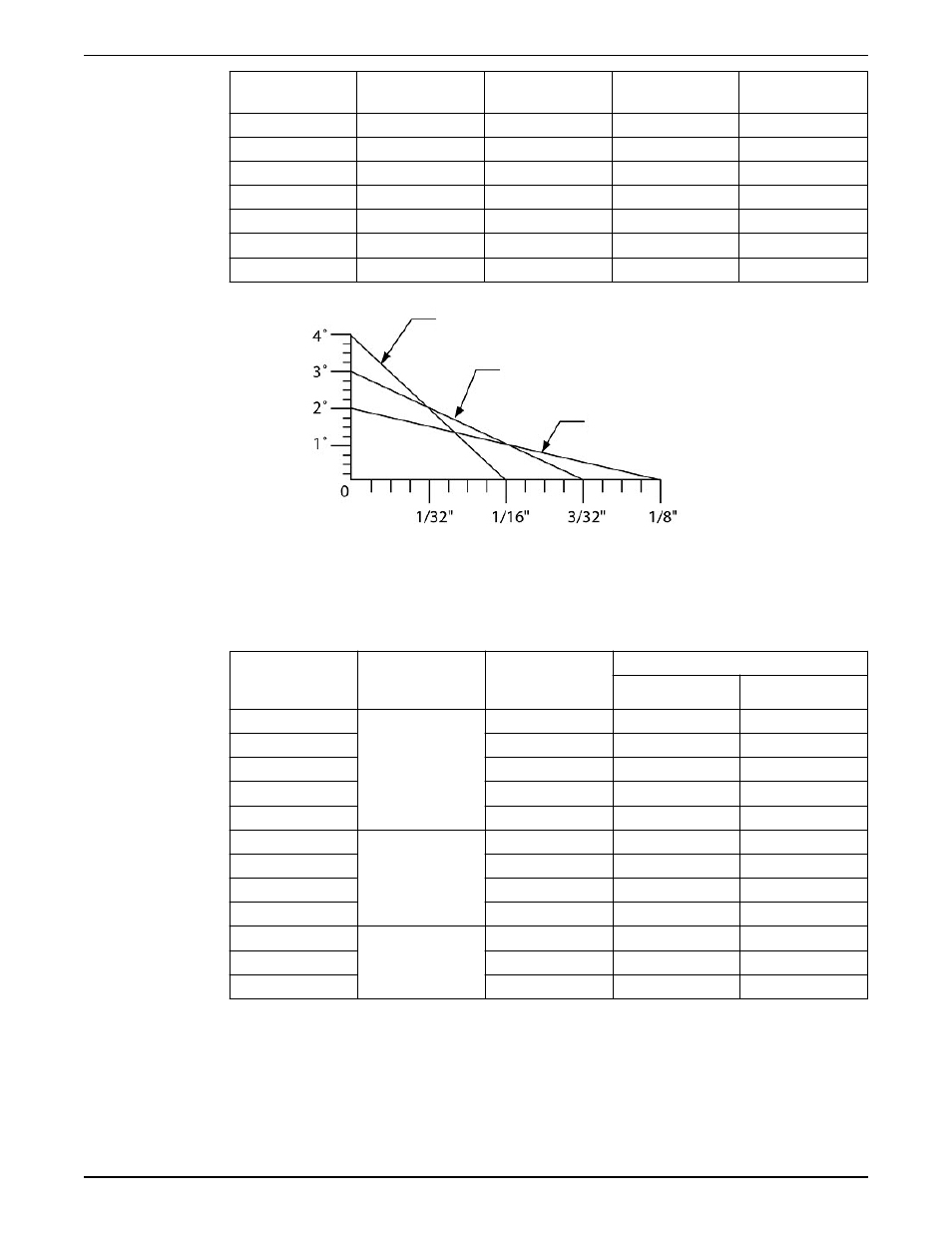

Parallel
Angular
1
2
3
1. Sizes E2 - E10
2. Sizes E20 - E50
3. Sizes E60 - E80
Fastener torque values and maximum RPM for Rexnord Omega couplings
Basic size (see
element)
Element and ring
capscrew torque ft-lbs
(Nm)
Standard hubs set
screw torque ft-lbs
(Nm)
Maximum rpm
Standard
Spacer
E2 17 (2) 7 (1) 7500 7500
E3 7 (1) 7500 7500
E4 14 (2) 7500 7500
E5 23 (3) 7500 7500
E10 23 (3) 7500 7500
E20 30 (3) 50 (6) 6600 4800
E30 50 (6) 5800 4200
E40 100 (11) 5000 3600
E50 100 (11) 4200 3100
E60 75 (8) 167 (19) 3800 2800
E70 167 (19) 3600 2600
E80 167 (19) 2000 1800
Final alignment
You cannot perform the final alignment until you initially operate the pump long enough
to reach operating temperature. When the pump reaches the normal operating
temperature, then secure the pump and re-check the alignment. Make sure that you
compensate for temperature accordingly.
Installation
Series 1510 Installation, Operation, and Maintenance Manual 21
