Page 20
1
2
1.
Straight edge
2.
Feeler guage

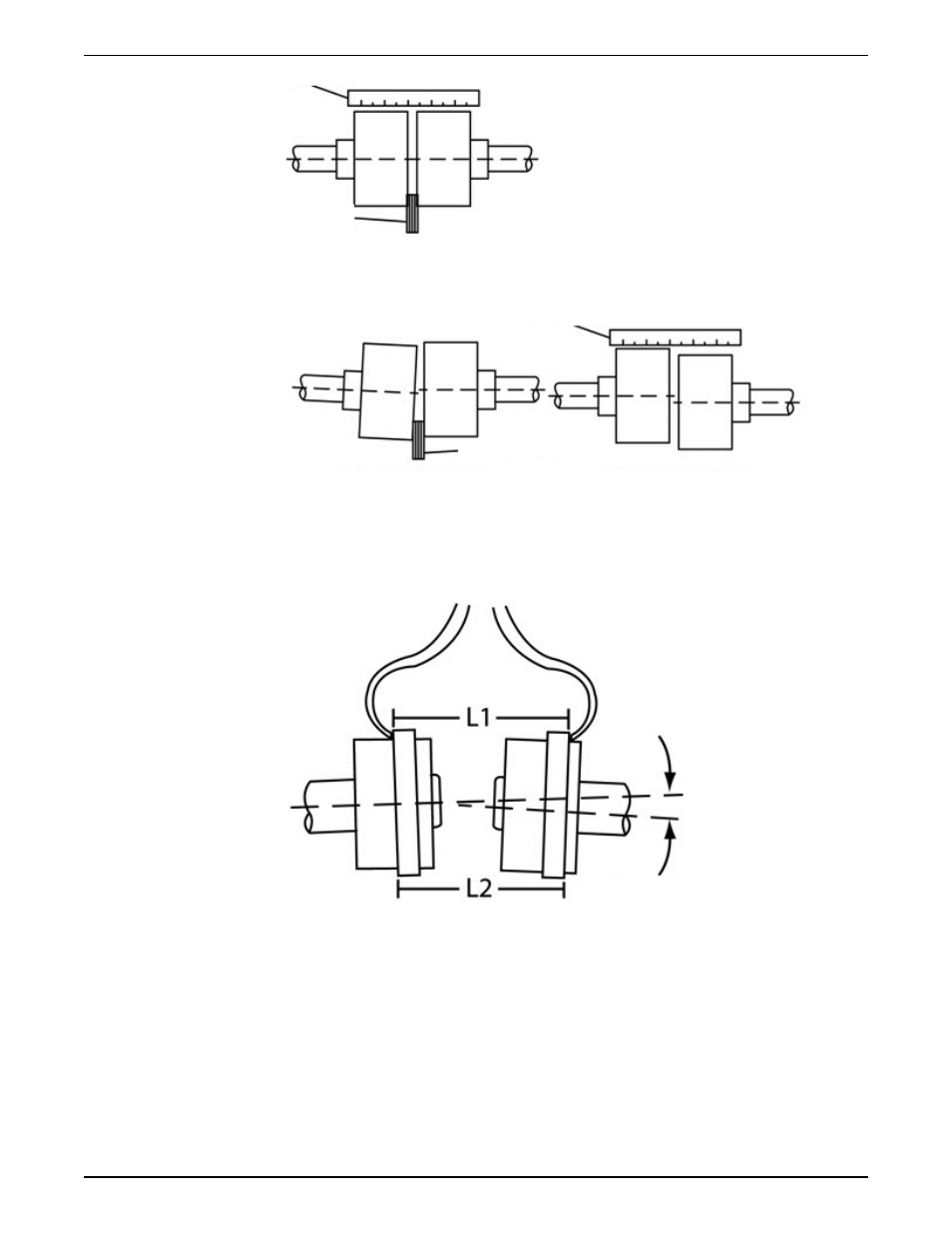

Figure 3: Check the alignment using a straight edge - correct
1
2
Angular
Parallel
1.
Straight edge
2.
Feeler guage
Figure 4: Check the alignment using a straight edge - incorrect
In this figure, the arrows show the angular misalignment:
Figure 5: Check the alignment using calipers
Align the pump using a dial indicator
1. Check the angular misalignment:
a) Mount the dial indicator base to one coupling half, or shaft.
b) Position the dial indicator button on the front face or rear face of the opposite
coupling half.
c) Mark the index lines on the coupling halves as this figure shows:
Installation
18
Series 1510 Installation, Operation, and Maintenance Manual
