Vending
35
512680
6. Before installing coin slide extension, make sure
ground wire is tucked under control shield to
provide clearance for coin slide. Refer to
Installing Extension Onto Coin Slide:
Option 1
1. Insert coins and partially extend coin slide.
2. Insert coin slide on its side through meter case
opening. Then rotate 90 degrees to its proper
orientation.
3. Return coin slide and hook slide pins onto meter
case.
4. Continue coin slide installation according to
manufacturer’s instructions.
5. Check to make sure coin slide is operating
properly by inserting coins and starting a cycle.
The IN USE light will turn on, or flash if it is
already on, to indicate proper operation.
NOTE: To avoid long run-down time (45 minutes
factory default) when testing operation, refer to
Test Setting section.
Installing Extension Onto Coin Slide:
Option 2
1. Install coin slide according to manufacturer’s
instructions.
2. Insert coins into coin slide and slowly push slide
in. Stop before coins fall into coin box. This will
allow installing extension through meter case
service door opening.
3. Install slide extension onto top of coin slide using
two screws. Refer to Figure 42.
4. Check to make sure coin slide is operating
properly by inserting coins and starting a cycle.
The IN USE light will turn on, or flash if it is
already on, to indicate proper operation.
NOTE: To avoid long run-down time (45 minutes
factory default) when testing operation, refer to
Test Setting section.

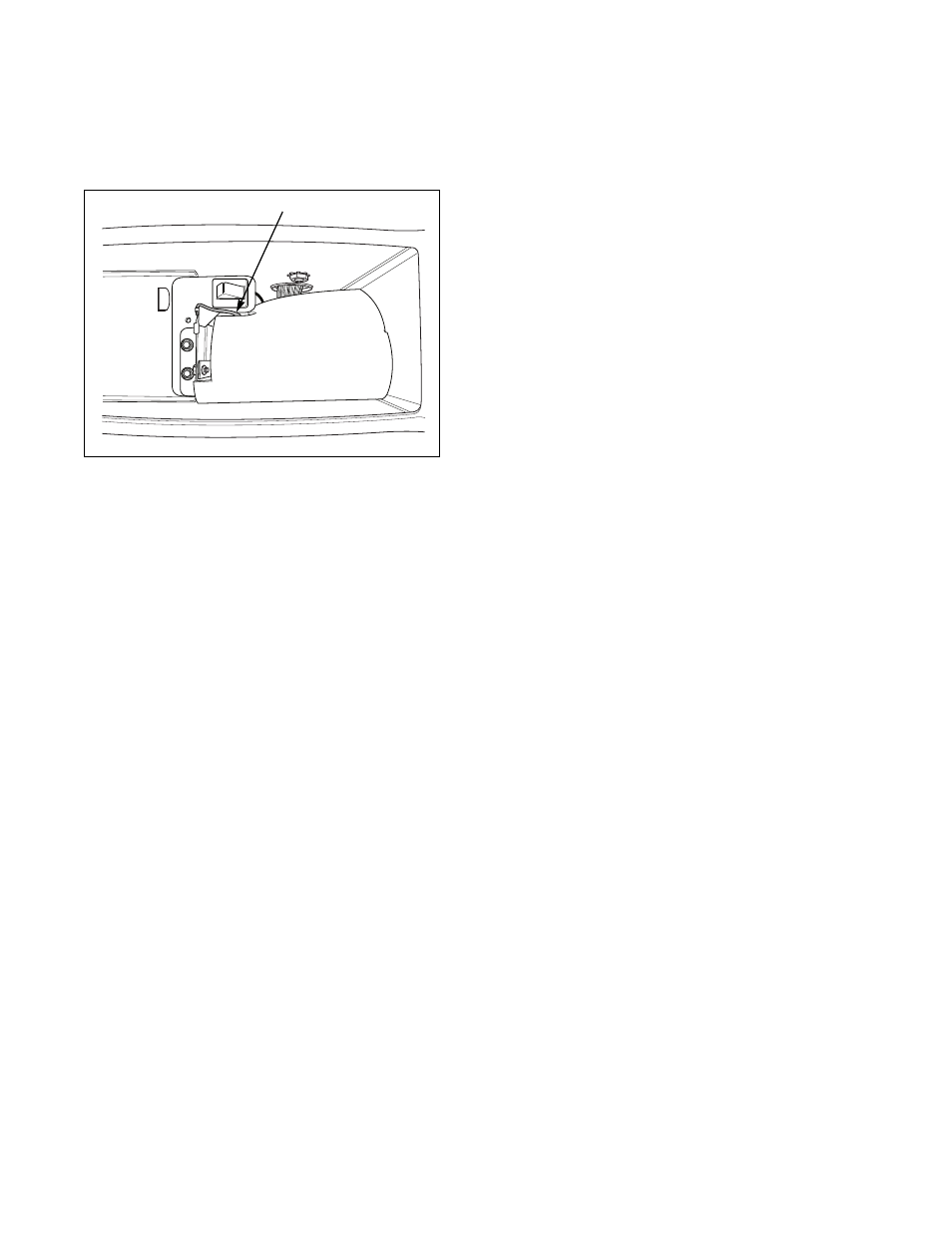

TLW2157N
Figure 43
Ground Wire Placement
