Installation
512680 8
Before You Start

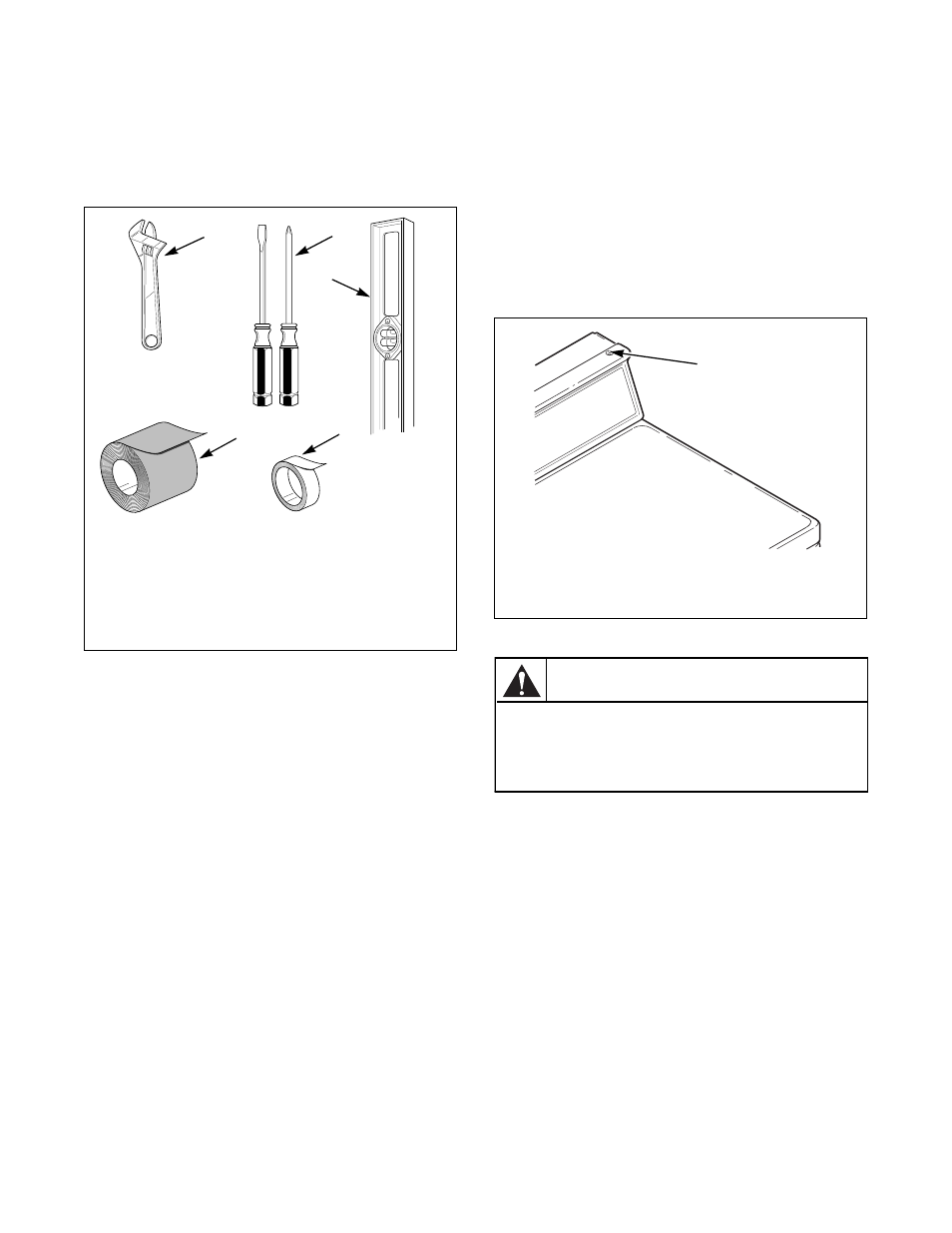

Tools
For most installations, the basic tools you will need
are:
Figure 1
NOTE: An 8 in. (20.32 cm) coin drawer is required
for coin operated MDC and NetMaster models with
standard capacity meter case and high capacity
meter case models starting with Serial Nos.
beginning 1010. High capacity meter case MDC
and NetMaster models with Serial Nos. beginning
0910 through 1010 require a 7.21 in. (18.31 cm)
coin drawer.
Card Reader Models
The machine is shipped from the factory with the
Electronic Control Diagnostic Harness Assembly
unplugged. To avoid unauthorized manual
programming or vending perform the following steps.
1. Open service door. Refer to Figure 2.
2. Locate diagnostic harness on electronic control.
3. Plug connectors for “white/black” wire and “red/
blue” wire together.
.
D818I
1 Wrench
2 Screwdrivers
3 Level
4 Teflon Tape
5 Duct Tape
1 2
3
4 5
FLW6R
1 Service Door
Figure 2
1
Any disassembly requiring the use of
tools must be performed by a suitably
qualified service person.
W299
WARNING
