Installation
512680 14
Multi-Dryer Installation Exhaust
Requirements

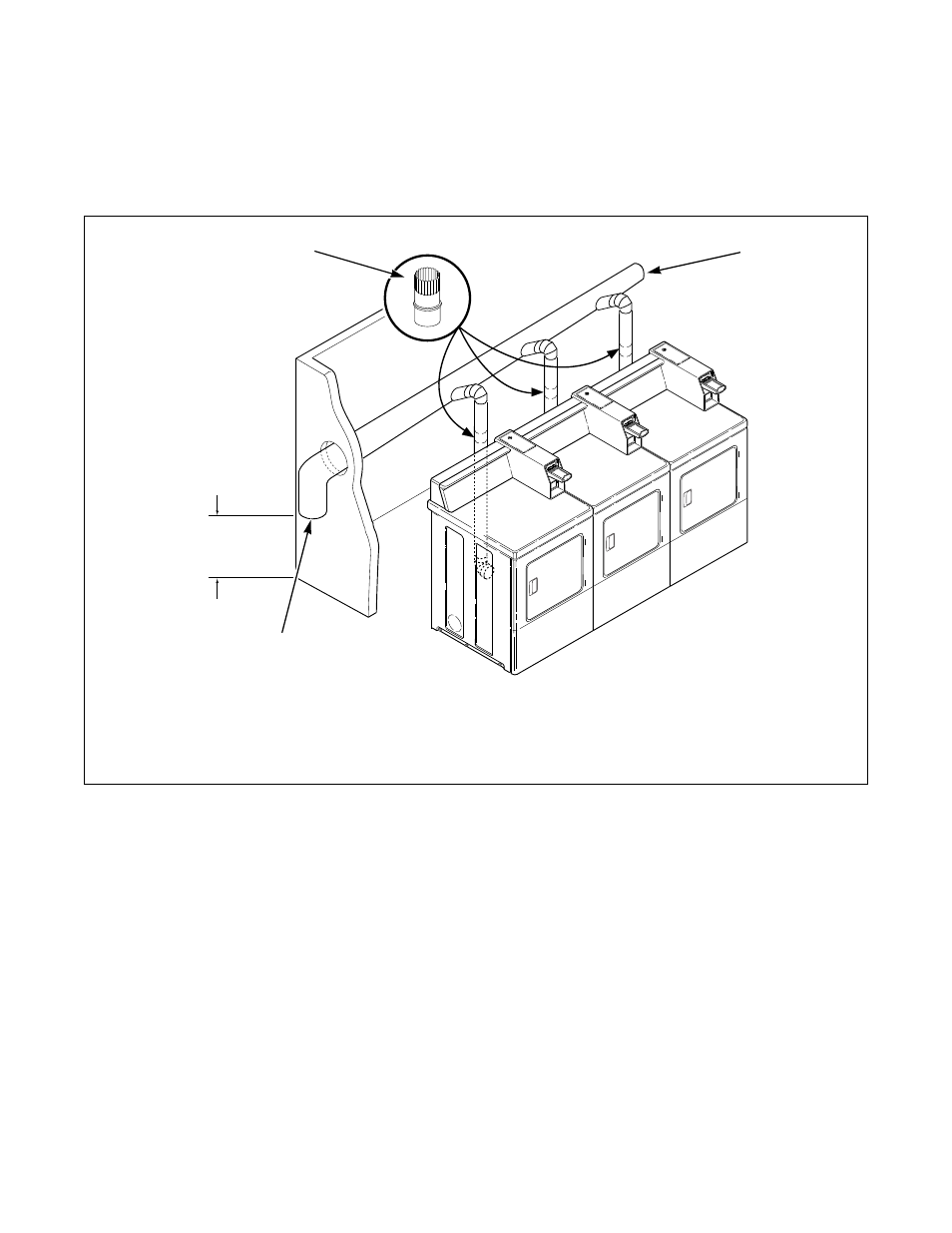

Figure 6 shows a typical example of a multiple dryer
installation. Note how each dryer has its own exhaust
system vented to the central exhaust duct.
Figure 6
D797I
1 58786 Backdraft Damper (Available through
your local authorized parts source)
3 Weather Hood or Sweep Elbow
(No cap or screen)
2 Clean Out Cover (Must be provided). Inspect
monthly.
2 1
3
METERED MODELS
ILLUSTRATED
24 in. (61 cm)
MINIMUM CLEARANCE
TO ROOF/GROUND
