Installing Extension Onto Coin Slide: Option 1

1. Install slide extension onto top of coin slide using

two remaining screws and lockwashers. Refer to

Figure 37.

2. Insert coins and partially extend coin slide.
3. Insert coin slide on its side through meter case

opening. Then rotate 90 degrees to its proper

orientation.

4. Return coin slide and hook slide pins onto meter

case.

5. Continue coin slide installation according to

manufacturer’s instructions.

NOTE: During coin slide installation, make sure

activation lever is up and off the switch. Refer to

Figure 38.

6. Check to make sure coin slide is operating

properly by inserting coins and starting a cycle.

The IN USE light will turn on, or flash if it is

already on, to indicate proper operation.

NOTE: To avoid long run-down time (45 minutes

factory default) when testing operation, refer to

Test Setting section.

Installing Extension Onto Coin Slide: Option 2

1. Install coin slide according to manufacturer’s

instructions.

2. Insert coins into coin slide and slowly push slide

in. Stop before coins fall into coin box. This will

allow installing extension through meter case

service door opening.

3. Install slide extension onto top of coin slide using

two screws and lockwashers. Refer to Figure 37.

NOTE: Make sure extension lever is above switch

activation lever.

4. Check to make sure coin slide is operating

properly by inserting coins and starting a cycle.

The IN USE light will turn on, or flash if it is

already on, to indicate proper operation.

NOTE: To avoid long run-down time (45 minutes

factory default) when testing operation, refer to

Test Setting section.

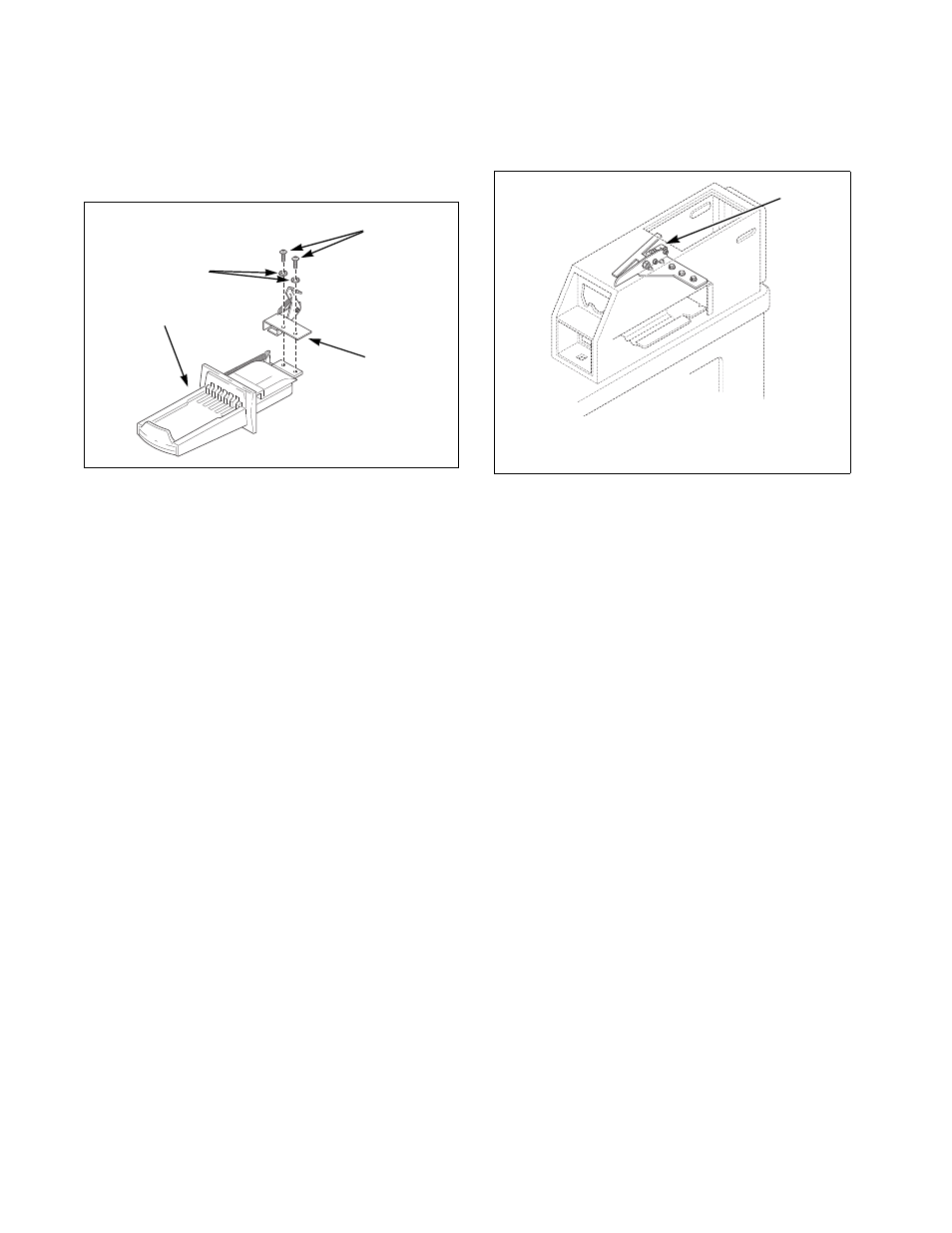

Figure 37

Coin Slide

Slide

Extension

Attaching

Screws

Lockwashers

TLW1564K

TLW2090N

Lever Off Switch

Figure 38

TLW2090N
