Installation
19
512680
IMPORTANT: Use only a new U.L. listed No. 10
(copper wire only) three or four conductor power
supply cord kit rated 240 Volts (minimum) 30
Amperes and labeled as suitable for use in a clothes
dryer.

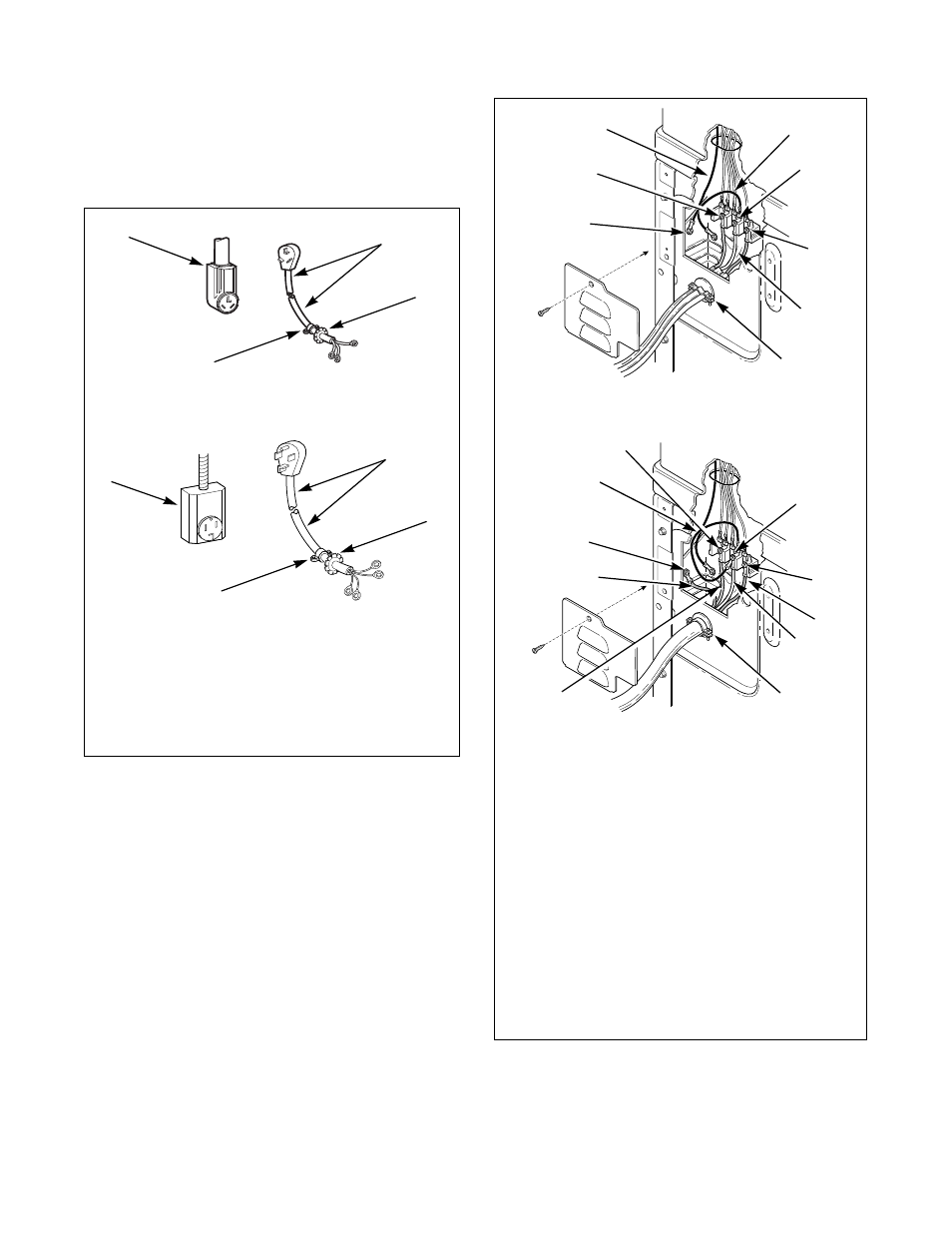

Figure 10
D275I
D006I
1
Typical Receptacle
2
Power Cord
3
Strain Relief Nut
4
Strain Relief
D275I
1
2
3
4
THREE-WIRE
1
2
3
4
FOUR-WIRE
D679I
D680I
NOTE: Dryer is shown with access cover removed for
illustration purposes only. NEVER operate the dryer
with access cover removed.
1
Ground Wire
2
Ground to Neutral Wire
3
Neutral Terminal
4
“L2” Terminal
5
Center Wire (Neutral)
6
Strain Relief (Not supplied with dryer)
7
Ground Screw
8
“L1” Terminal
9
Black Wire
10
White Wire (Neutral)
11
Red Wire
Figure 11
D679I
1
8
7
6
5
4
3
2
THREE-WIRE CONNECTION
D680I
1
8
7
6
10
4
3
1
11
9
FOUR-WIRE CONNECTION
