Slide Extension Assembly – Models
Starting Serial No. 1211

1. Remove slide extension parts from parts

accessories bag included in unit.

2. Install extension lever with arm that has one star

facing down. Refer to Figure 39.

NOTE: If more switch down-force is required,

install lever with arm that has two stars facing

down to provide additional switch travel.

3. Install extension lever with rounded corner

facing away from extension bracket using bolt,

washer and nut. Refer to Figure 40.

4. Install extension bracket and lever assembly onto

coin slide bracket using two screws and locknuts.

IMPORTANT: Install coin slide bracket with side

marked “A” facing up and toward extension

bracket and lever assembly. Refer to Figure 41.

5. Install coin slide extension assembly onto top of

coin slide using two remaining screws and

lockwashers. Refer to Figure 42.

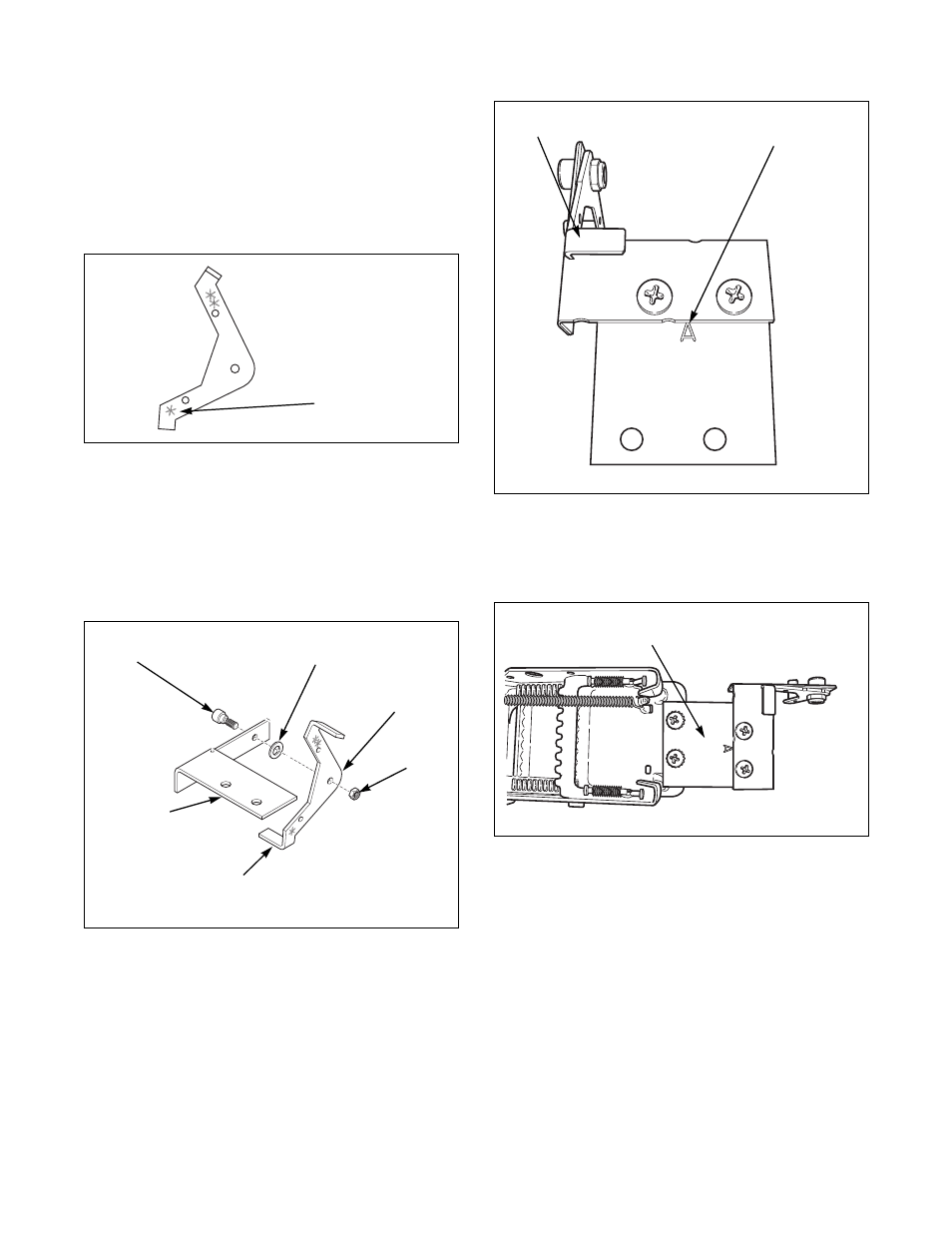

Figure 39

Figure 40

One Star

TLW2088N

TLW1580K

Extension

Bracket

Bolt

Washer

Extension

Lever

Nut

Rounded

Corner

TLW1580K

Figure 41

Figure 42

Coin Slide Bracket -

Letter "A"

Extension Bracket and

Lever Assembly

TLW2155N

Coin Slide Extension

Assembly

TLW2156N
