Vending

512680

Slide Extension Assembly – Models
Through Serial No. 1211

(Coin Slide Models with standard capacity meter

case and high capacity meter case models with

Serial Nos. beginning 1010 only)

NOTE: High capacity meter case models with

Serial Nos. beginning 0910 through 1010 require a

coin slide with a switch installed on it.

1. Remove slide extension parts from parts

accessories bag included in unit.

2. If installing a Greenwald coin slide, position

extension lever (to be installed on extension

bracket) with arm that has one star facing down.

Refer to Figure 35.

3. If installing a Monarch or ESD coin slide,

position lever with arm that has two stars facing

down. Refer to Figure 35.

4. Install extension lever with rounded corner

facing away from extension bracket using bolt,

one or two flat washers (shims) (use number of

washers included in kit) and nut. Refer to Figure

36. Make sure washers are flat against bracket.

5. Torque nut between 2 and 2.26 Nm (18 and 20

inch-pounds), or tighten nut firmly.

6. Install extension spring in bracket hole and hole

in upper arm of lever. Refer to Figure 36.

7. Bend loops closed after installation.
8. Check to make sure the lever swings freely.

TLW2088N

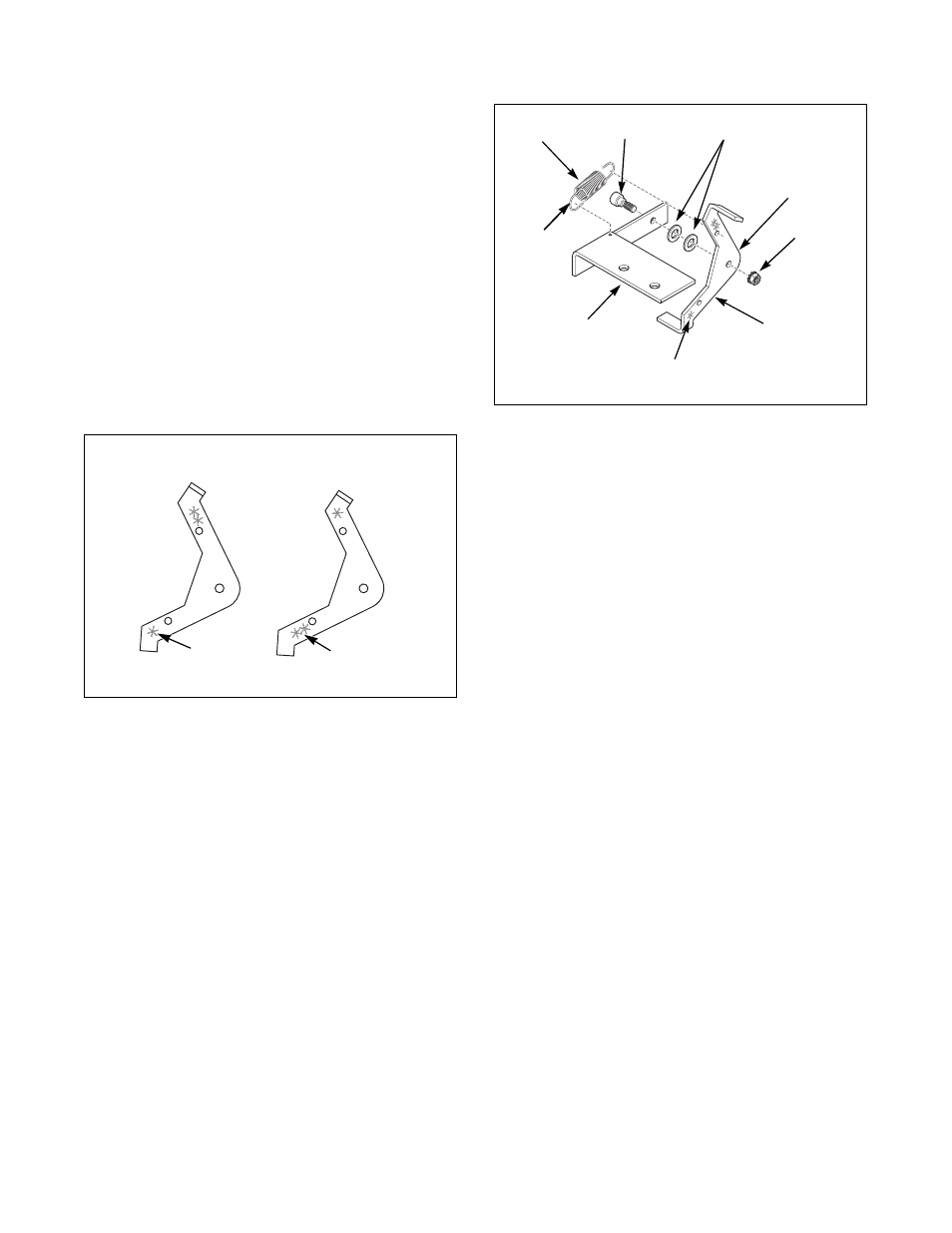

Figure 35

Greenwald

Coin Slide

Monarch or

ESD Coin Slide

One Star

Two Stars

TLW2089N

Figure 36

TLW2089N

Extension Bracket

Spring

Bolt

One or Two

Flat Washers (Shims)

Nut

Extension Lever

Star(s) Facing Down

Loops

Rounded Corner
