Each light source has its own color temperature. Therefore, when the main
light source lighting an object is changed, press the SET button for a while and
adjust the AWC again.
Note:
● This is a fixed setting and will not be changed in a change in the
surrounding light conditions.

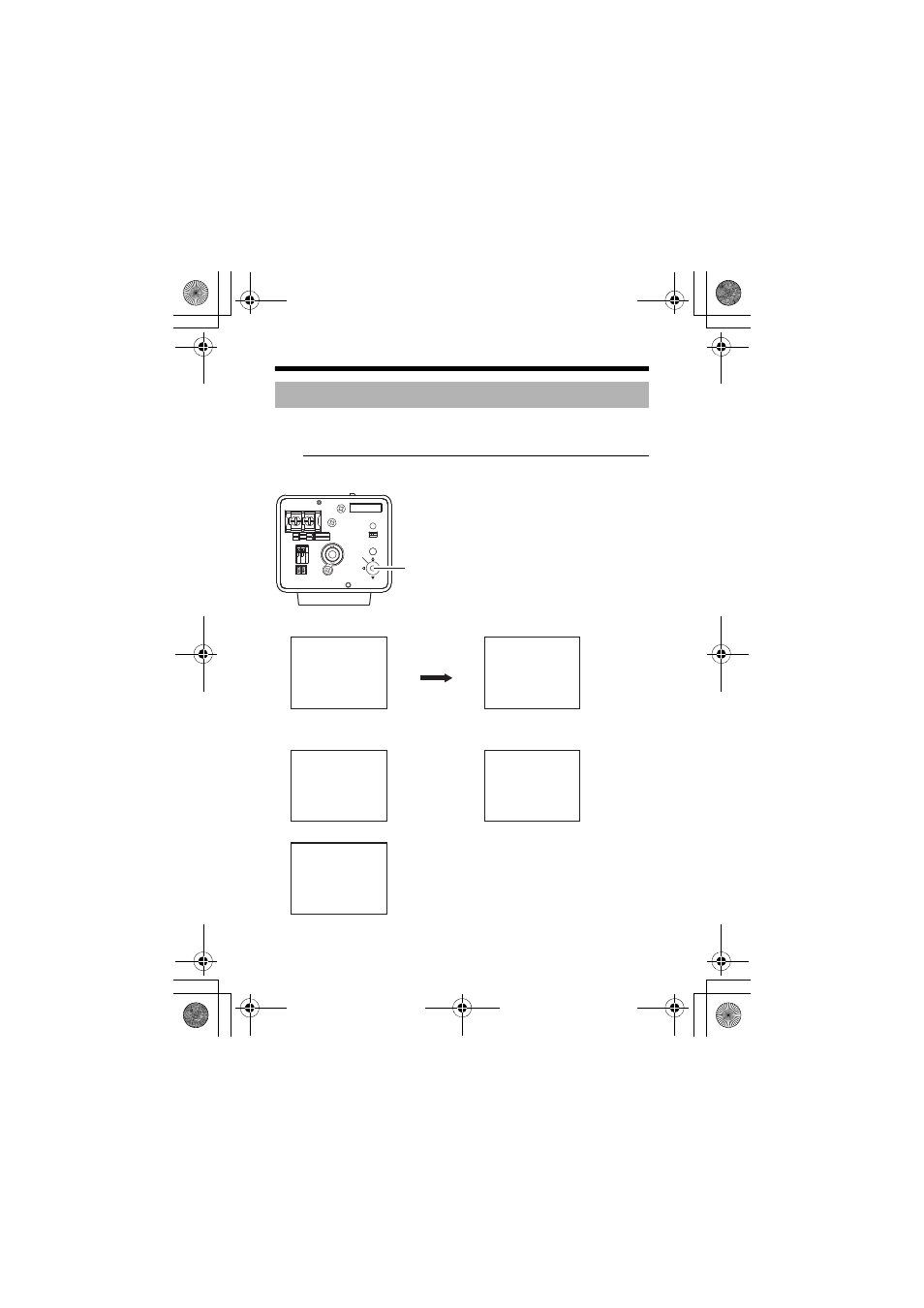

Adjusting the AWC (one touch manual balance)
AWC OK
AWC ERROR : HIGH LIGHT
AWC ERROR : NG OBJECT
AWC OPERATION
AWC ERROR : LOW LIGHT
2
3
CLASS 2 ONLY
ISOLATED POWER ONLY SEE INSTRUCTION
MANUAL
POWER
VIDEO OUT
SELECTOR
SET
MENU
INT LL +
1 2
DC12V d
AC24V H
SET button
Ⅵ Error display
Object error
Insufficient Illumination
Excessive Illumination
