Adjusting the back focus, A pg. 26) – American Dynamics ADCTDN0230P User Manual
Page 26
26
This camera is adjusted to a optimum wide range for CS-mount lens before
shipment but readjustment is required when using zoom lens or C-mount lens
or when the lens focus ring is out of focus. Use the following methods to adjust
the back focus.

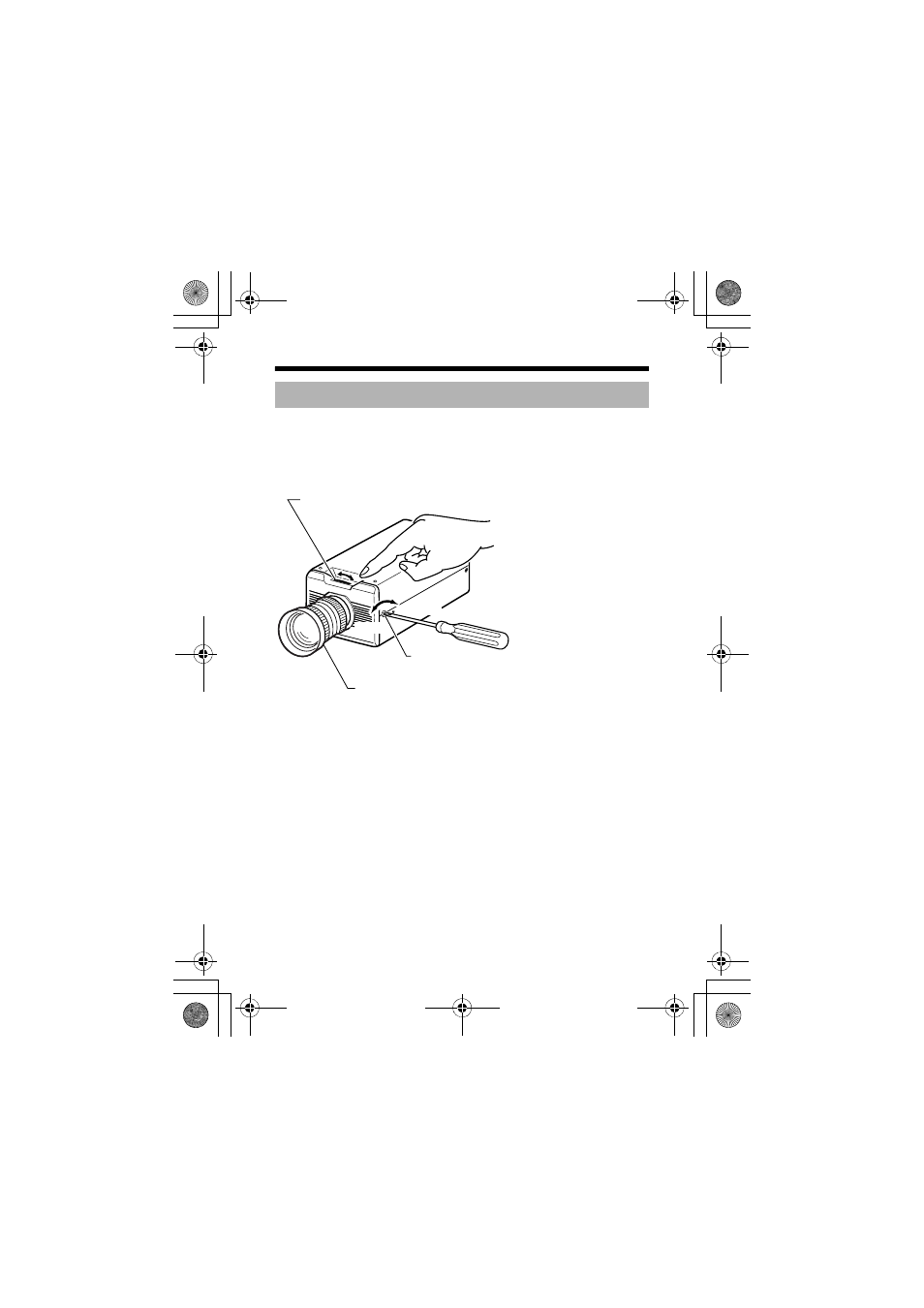

Adjusting the back focus
Back focus adjustment ring
Lens focus ring
Back focus locking screw (M2.6)
Tighten
Loosen
