23

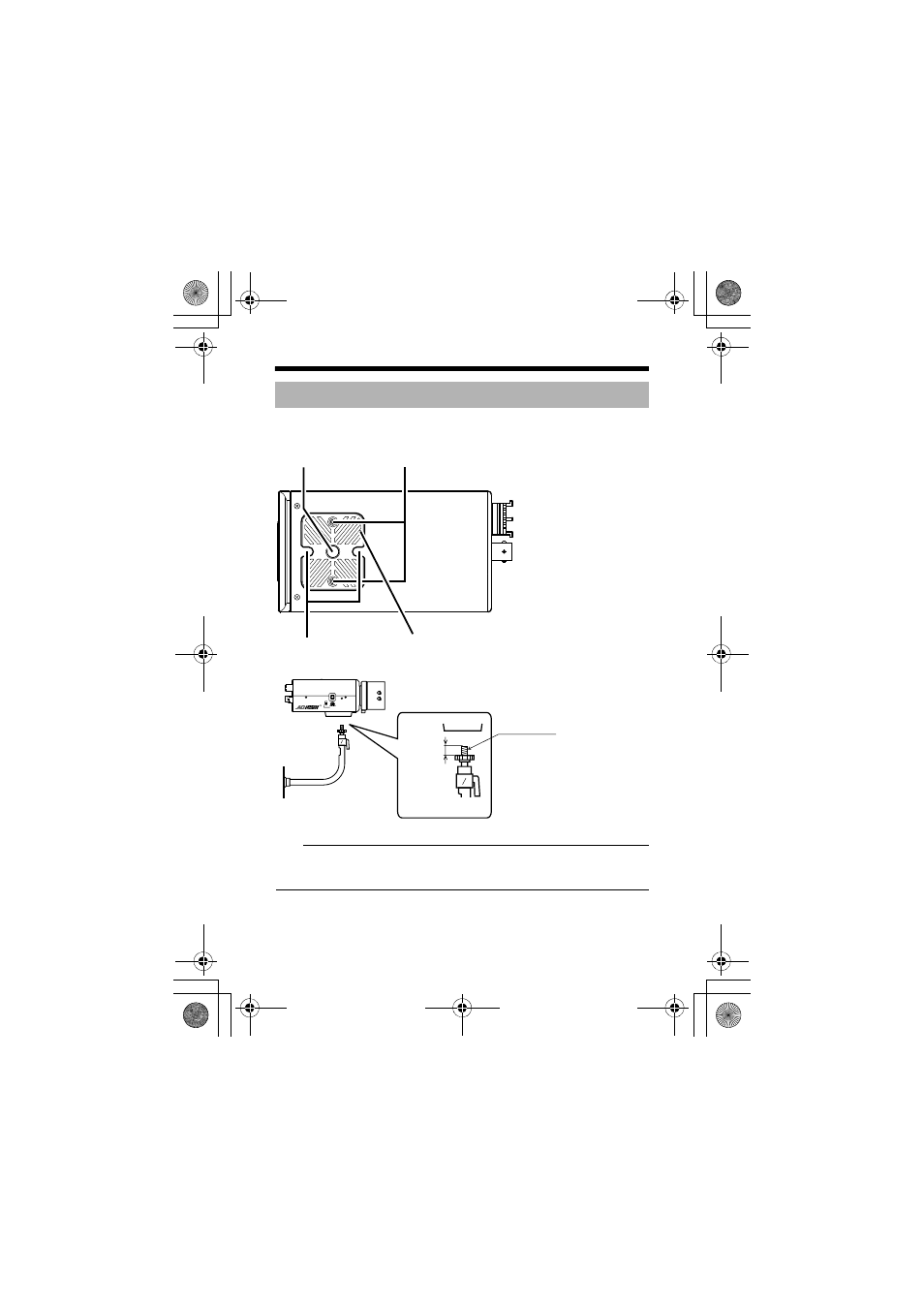

When mounting the camera on a mount, pan/tilt and the like, use the camera-
mounting screw hole located on the camera-mounting bracket.
Note:
● Use a camera-mounting screw with a length between 5mm and 7mm from
the camera-mounting face. Do not use a screw that is longer than the
specified length. It may damage the internal parts.
Mounting the camera
IRIS
VIDEO DC LEVEL
Camera-mounting
screw hole Camera-mounting bracket fixing
screws (x2: M2.6 x 6 mm)
Rotation-preventive hole Camera-mounting bracket
between
5mm and
7mm
(¼ - 20UNC)
