Setup

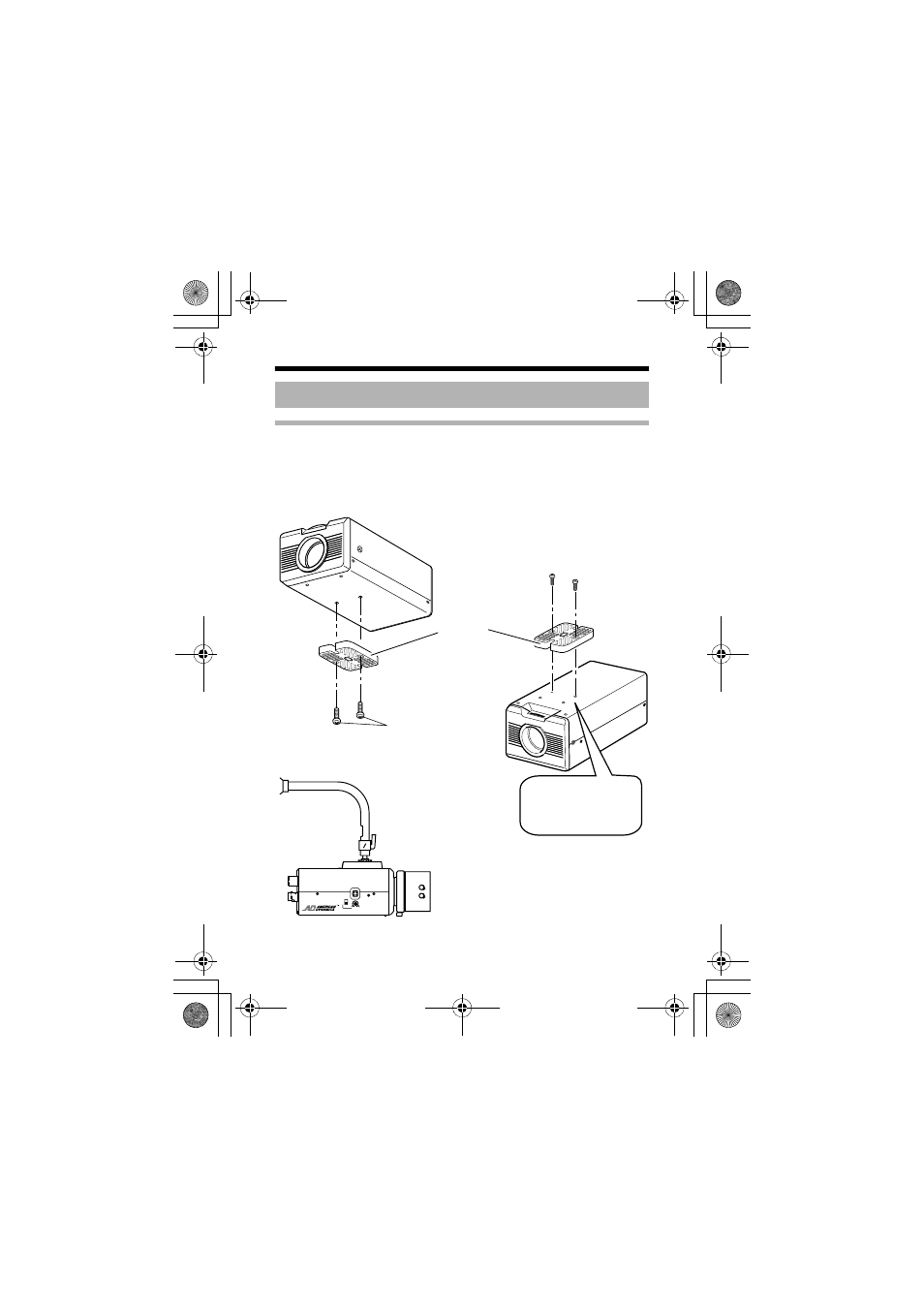

Mounting the camera-mounting bracket on top of the camera
The camera-mounting bracket is originally mounted at the bottom of the
camera before shipment but it can also be mounted on top of the camera.
● Ask a professional to replace the camera-mounting.
Mounting the camera (continued)
IRIS
VIDEO DC
LEVEL
1
2
3
Camera-mounting
bracket
Camera-mounting
bracket locking screws
(x2: M2.6 x 6 mm)
To mount the camera-
mounting bracket on top of
the camera, use the screw
holes on the back panel.
