6. Once the drivers are stored on the computer, connect
the OMNIKEY reader to the port (USB, ExpressCard, or
PCMCIA) and start the installation process. When the
Windows Hardware Wizard requests for the driver, select
Install from a list or specific location.
7. Check Include this location in search and specify the
location where the drivers are stored (for example:
C:\Omnikey\5x21_V1_2_0_5). Click Next. When
installation is complete, click Finished.
Note: If using unsigned BETA drivers, choose the Don’t
search, I will choose the driver to install radio button.
After finishing the installation your OMNIKEY Smart Card
Reader is ready for use.
Installation Check
Ensure your device is recognized and listed in the Windows
Device Manager dialog as OMNIKEY 5x21 in the Smart Card
Reader section.
Note: This OMNIKEY Reader is CCID compliant, therefore, you
can use a generic Windows CCID driver to operate the reader.
However, a generic driver does not allow you to utilize the
readers advanced features and functions.
1. Go to the device manager:
Start > Settings > Control Panel. Click System.
2. From the System Properties dialog, select the Hardware
tab and click Device Manager. Expand the Smart Card
readers option to ensure that OMNIKEY 5x21 is found.
Proceed to the Diagnostic Tool section for testing the
installation.
Diagnostic Tool
1. Download the latest OMNIKEY Diagnostic tool, by going
to: http://www.hidglobal.com/omnikey . Select Driver
Downloads.
2. Select your OMNIKEY product and operating system.
Choose to download the OMNIKEY Diagnostic tool
and confirm the license agreement. When download is
complete, click Run.
Note: The Diagnostic tool only works with OMNIKEY readers.
For older drivers, the Diagnostic tool is also available from the
Control Panel.

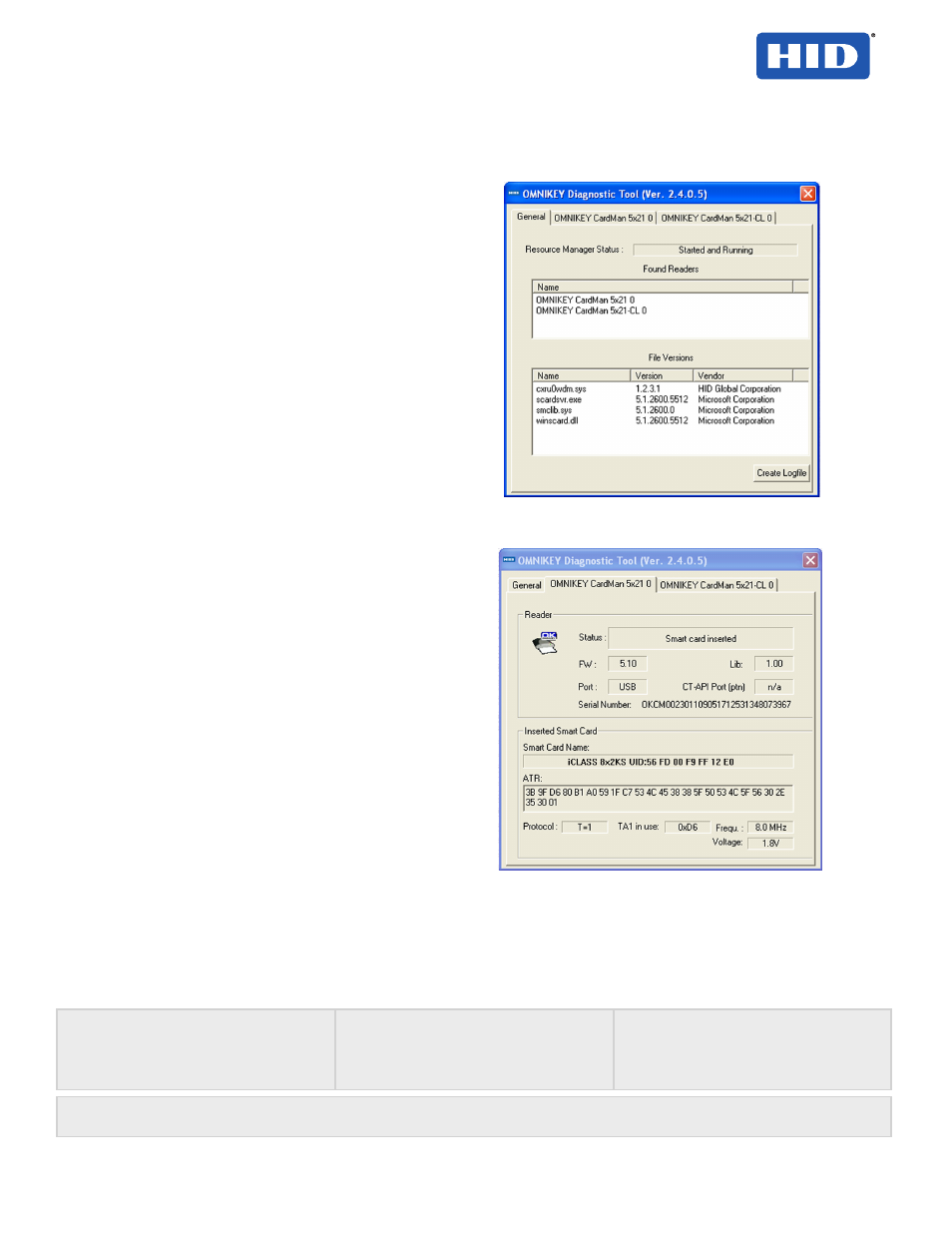

Start the OMNIKEY Diagnostic tool from the program shortcut,
go to Start > Programs > OMNIKEY.
Within the Diagnostic tool, the General tab lists all the
connected OMNIKEY Smart Card readers, along with driver
information. The APIs tab references the installed API DLLs.
Additional tabs show connected reader details (per the available
contact and contactless interface).
For a functional test, insert a working smart card into the reader.
As a result, an ATR string and other card details display.
