HID Juniper and ActivID AAA OOB - Manual (Page 21)

4TRESS AAA Out-of-Band Authentication (SMS) and Juniper® Secure Access | Integration Handbook
External Release | © 2012-2013 HID Global Corporation/ASSA ABLOY AB. All rights reserved. Page | 21

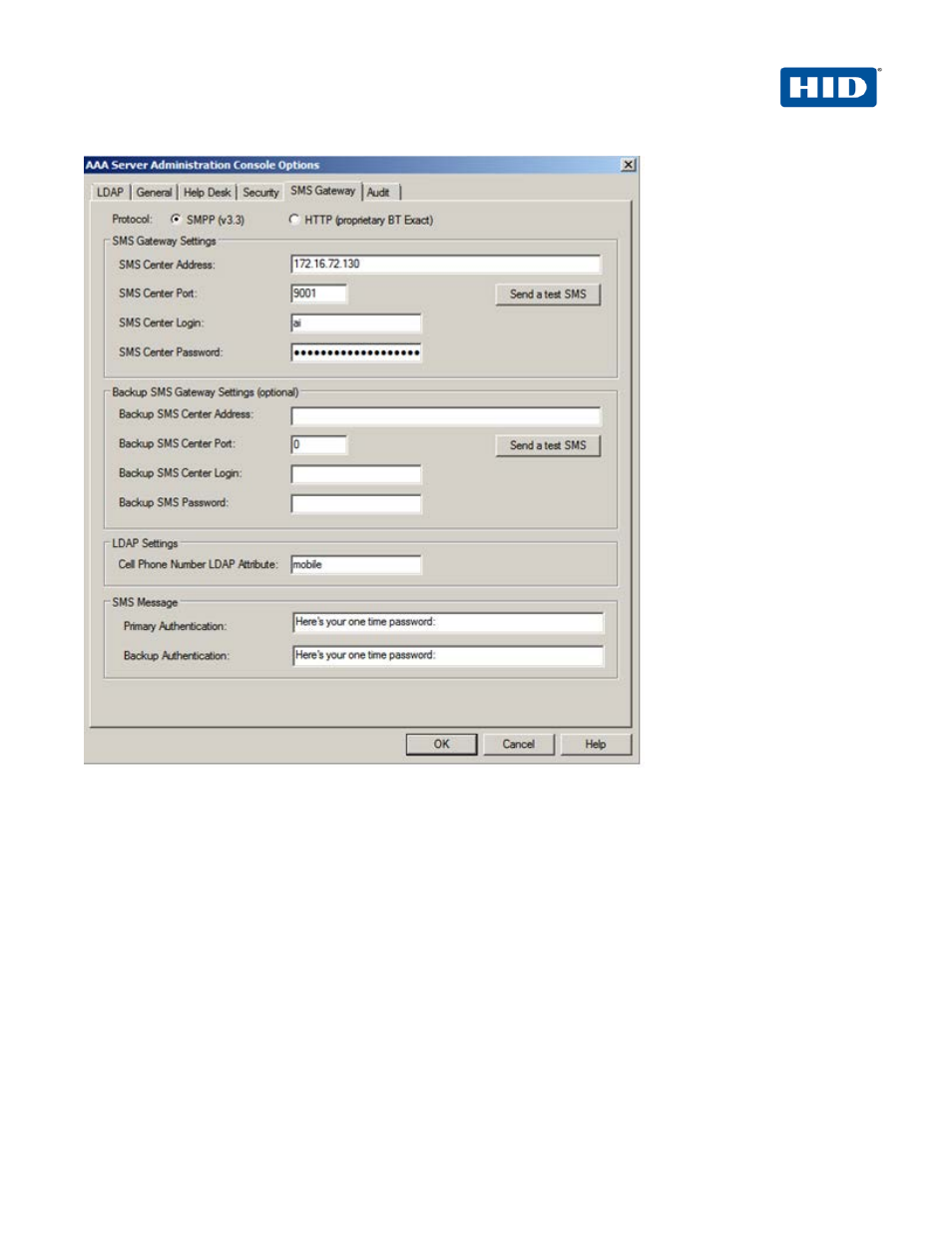

• Protocol—Select the Protocol to use for sending the SMS to the cell phone.
• SMS Center Address—Enter the IP address or domain name of the SMS Center’s server.
• SMS Center Port—Enter the port number for the SMS Center’s server.
• SMS Center Login and SMS Center Password—Enter the credentials that the 4TRESS AAA Server
uses to authenticate to the SMS.
• LDAP Settings—Define the attribute in the Cell Phone Number LDAP Attribute field. This is the one in
which the cell telephone numbers are stored in your organization’s LDAP directory.
• SMS Message—Enter the text desired for primary and backup, if needed (for example, Here is your
one-time-password:).
3. Click Send a test SMS for the primary gateway, and for the backup, if configured.
4. Click OK.
