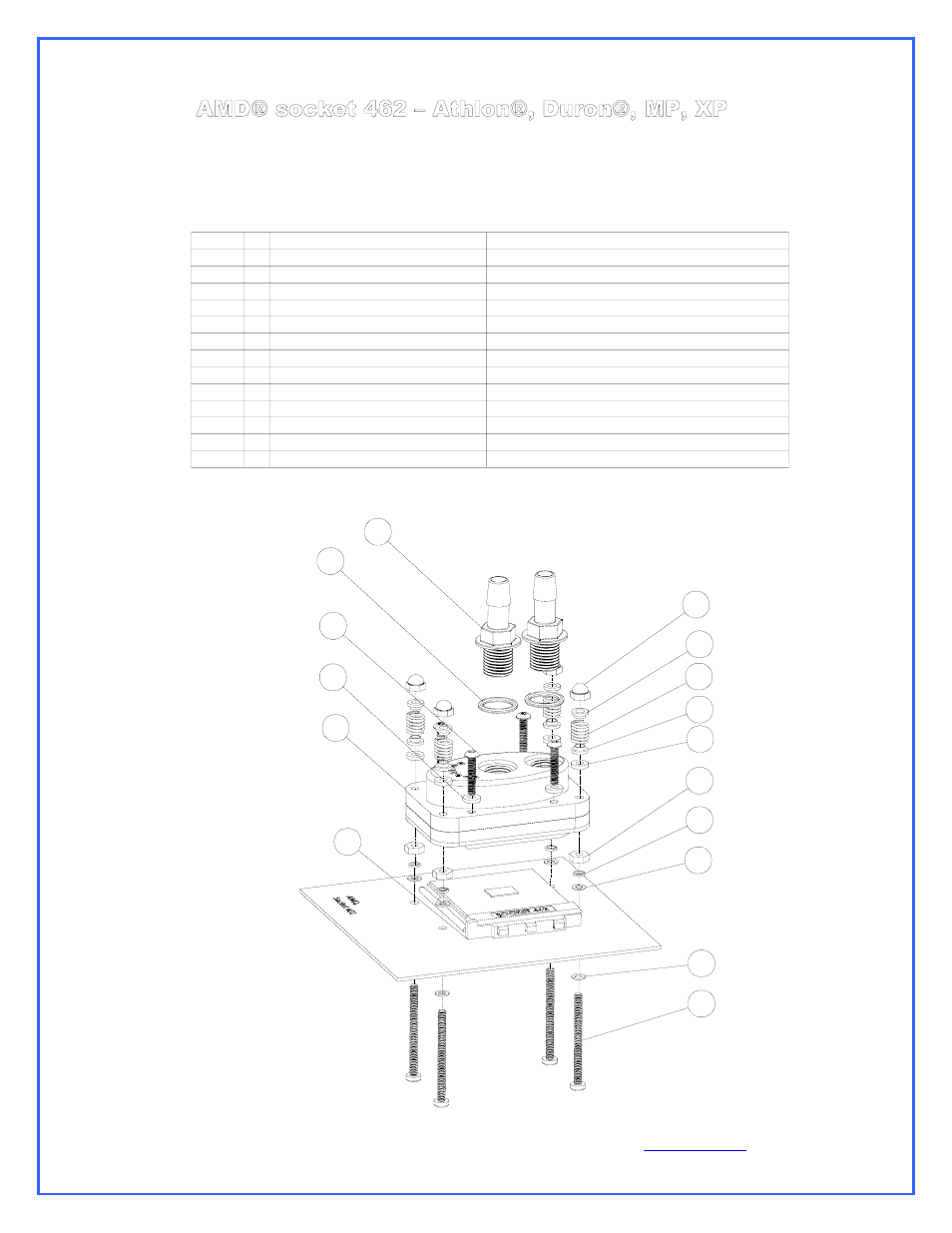

It is necessary to remove the pre-installed hold-down plate prior to installation. Simply unscrew the 4 button head screws holding the
assembly together using the provided 5/64 Allen wrench, remove the hold-down plate, and re-install the screws with the provided nylon
washers instead as shown below.
Copyright Swiftech 2005 – All rights reserved – Last revision date: 4-16-05 - Information subject to change without notice – URL: http://www.swiftnets.com
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28 th Street, Signal Hill, CA 90755 – Tel. 562-595-8009 – Fax 562-595-8769 - E Mail: [email protected]
PAGE 12 of 20
ITEM #QTY. PART NO. DESCRIPTION
A 1 socket462
B 1 storm-assy2
C 2 1-4-straightx3-8-barb 1/4" NPSM Barb fitting
D 2 O-RING-9557K473 1-4'" NPSM barb fitting O-Ring
E 4 92949A151 6-32 x 3/4" button socket head screw
M 8 16FW006062 .31x.14x.06 nylon washer
F 4 6-32-Acorn-nut
G 4 SPRING6 70927compressed-to-0337
H 8 12SWS0444 NYLON SHOULDER WASHER
I 4 6-32-nut 6-32 nut
J 4 LOCK-WASHER#6
K 8 FW140X250X0215FB BLK black fiber washer
L 4 6-32X1.750 6-32 x 1 3-4" philips screw
C
D
F
H
G
H
M
B
E
M
I
J
K
K
L
A
