Intel® xeon™ socket 603/604 – Swiftech H20 APEX User Manual

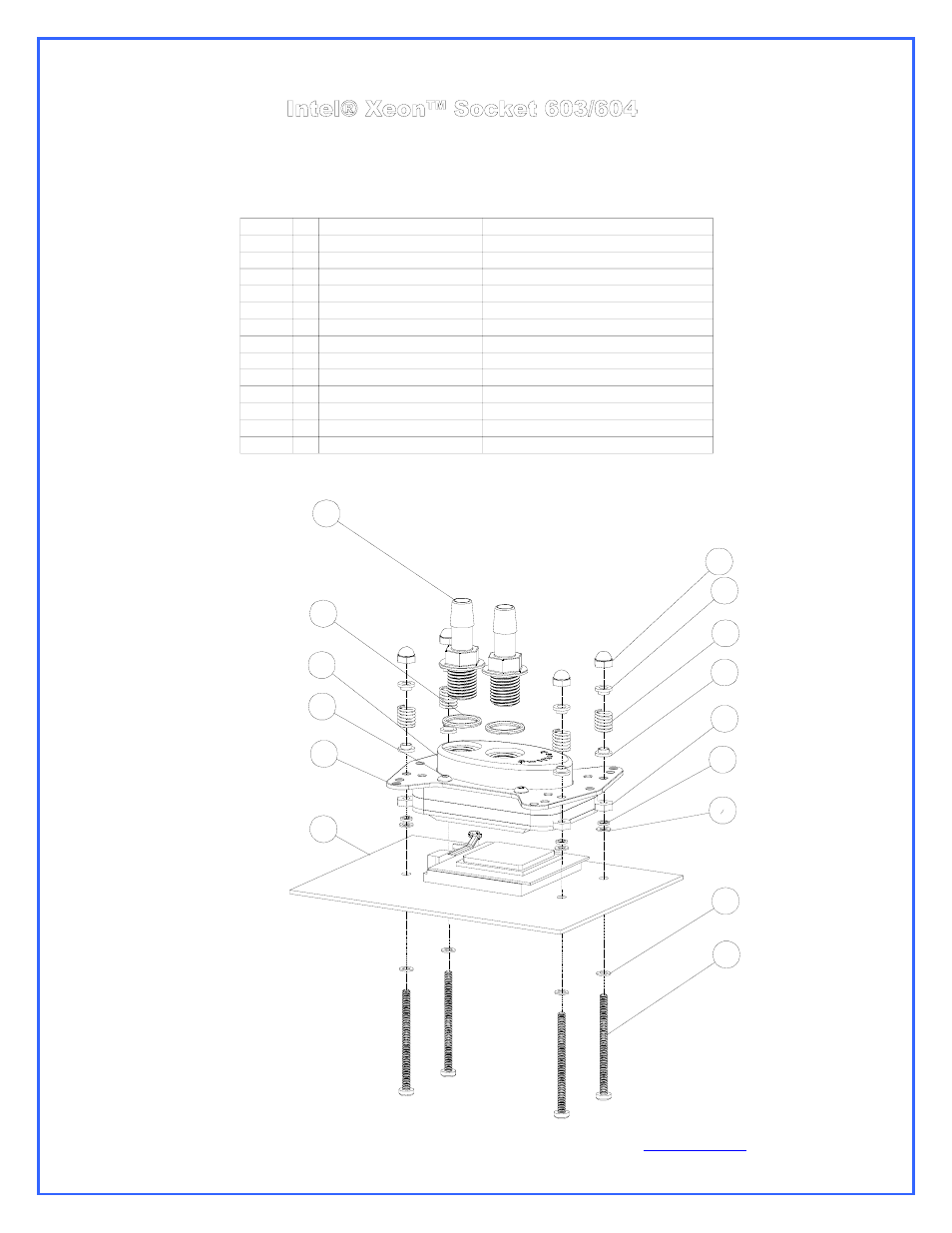

Page 11

Use all parts from “common parts pack” except Philips screws: replace with the enclosed 6-32 1 7/8” long screws, instead of the 1 ¾”
long supplied in the common parts pack.
The following parts are only compatible with Xeon processors operating at 533Mhz and below, and are not compatible with Intel Xeon
“Nocona” class processors (800Mhz Front Side Bus) which require a different retention mechanism available in option.
Copyright Swiftech 2005 – All rights reserved – Last revision date: 4-16-05 - Information subject to change without notice – URL:
http://www.swiftnets.com
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28
th
Street, Signal Hill, CA 90755 – Tel. 562-595-8009 – Fax 562-595-8769 - E Mail: [email protected]
PAGE 11 of 20
ITEM #QTY. PART NO.
DESCRIPTION
A
1 Socket-603-604-dual
B
1 storm-assy2
C
1 STORM-HOLD-DOWN-R1Storm Universal hold-down plate
D
2 1-4-straightx3-8-barb
1/4" NPSM Barb fitting
E
2 O-RING-9557K473
1-4'" NPSM barb fitting O-Ring
F
4 92949A151
6-32 x 3/4" button socket head screw
G
4 6-32-Acorn-nut
H
4 SPRING6
70927compressed-to-0337
I
8 12SWS0444
NYLON SHOULDER WASHER
J
4 6-32-nut
6-32 nut
K
4 LOCK-WASHER#6
L
8 FW140X250X0215FB BLKblack fiber washer
M
4 6-32x1.7-8-philips
D
E
B
C
A
G
I
H
I
J
K
L
L
M
F
