Installation guide
Parts
QTY
PARTS
QTY
MCW6000™ water-block
1
Spring loaded screw assemblies
2
Worm drive clamps
2
Sk8 hold-down plate
1
NOTE TO USERS: SOME OPTERON MOTHERBOARDS (MSI BRAND) DO NOT USE AMD STANDARD RETENTION MECHANISM. PLEASE USE
INTEL PENTIUM 4 (SOCKET 478) HOLD-DOWN PLATE & CLIPS INSTEAD WITH THESE MOTHERBOARDS.
This product is intended for expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your
components. Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following
instructions are subject to change without notice. Please visit our web site at
dates.
4
5
6
7
8
2
1
3
3
ITEM NO.
Q TY.
PART NO.
DESCRIPTIO N
1
1 M C W 6000-R2
M C W 6000 flat ba se wate r-block
2
1 S754-RETENTIO N-r2
SK8 ho ld-down p late fo r AM D K8
3
1 K8_M otherboa rd
AM D K8 (Athlon 64 & Op teron) m otherb oard+ pro cessor assy.
1 co unter-plate
1 m otherb oard
1 re tention-fram e
4
2 91772A158-6-32X1.75
6-32 x 1 3/4" p hilips screw
5
2 93286A041-W A SHER
zinc pla ted wa sher
6
2 885
spring
7
2 spa cer-205x140x773
te nsion lim iter
8
2 6-32 nylon reta ining washer
6-32 nylon reta ining washer

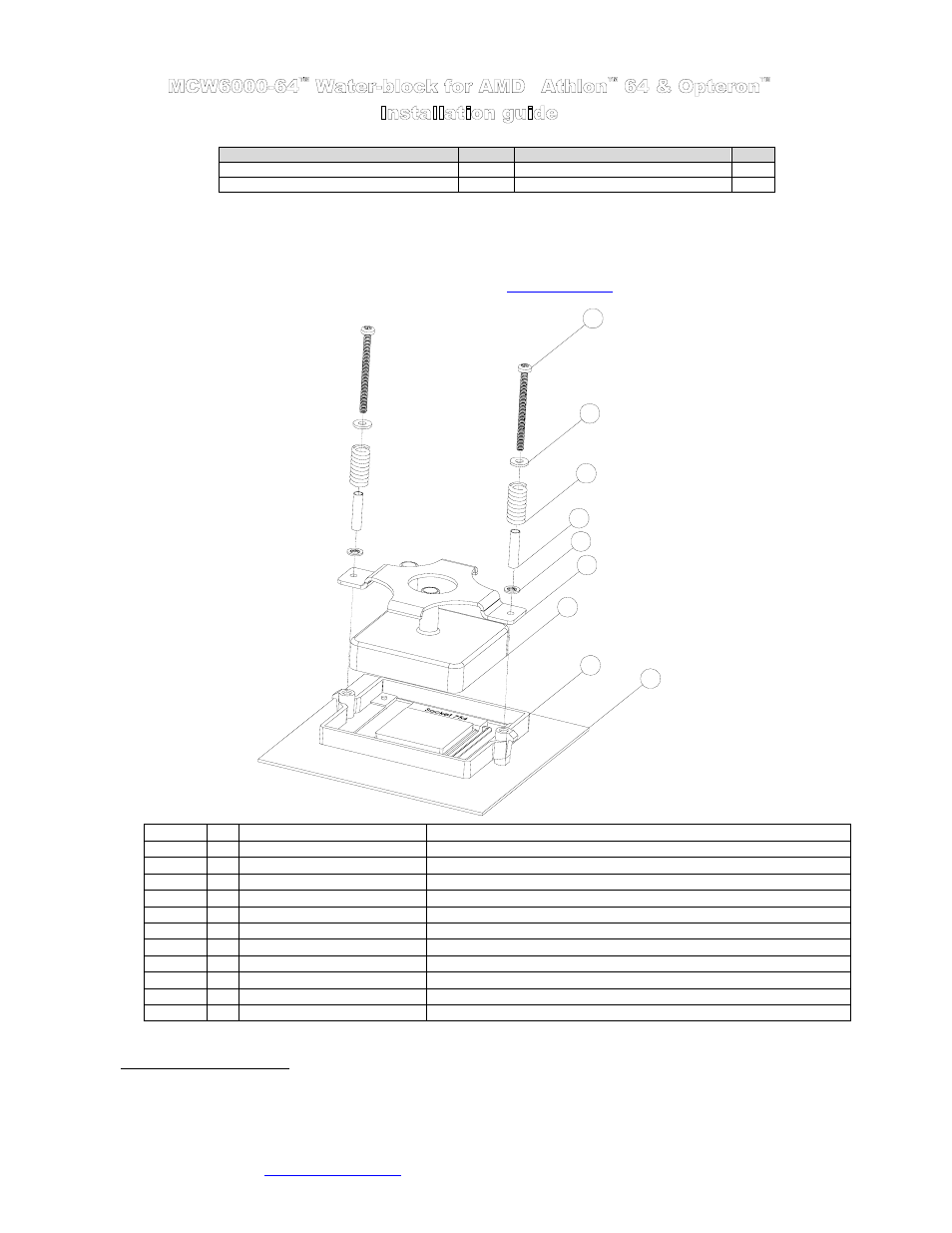

Figure 9
1.
Preparing your motherboard
Remove the existing heat sink
Carefully clean the CPU.
Lightly coat the CPU with the included Arctic Céramique thermal compound. Application will vary depending on the type of
processor. We recommend visiting http://www.arcticsilver.com for detailed instructions.
