Installation guide
Parts list
Parts
QTY
PARTS
QTY
MCW6000-P™ water-block
1
3T spring/clip assemblies
2
Worm drive clamps
2
SK7 hold-down plate
1
This product is intended for expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to
your components. Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The
following instructions are subject to change without notice. Please visit our web site at
tes.

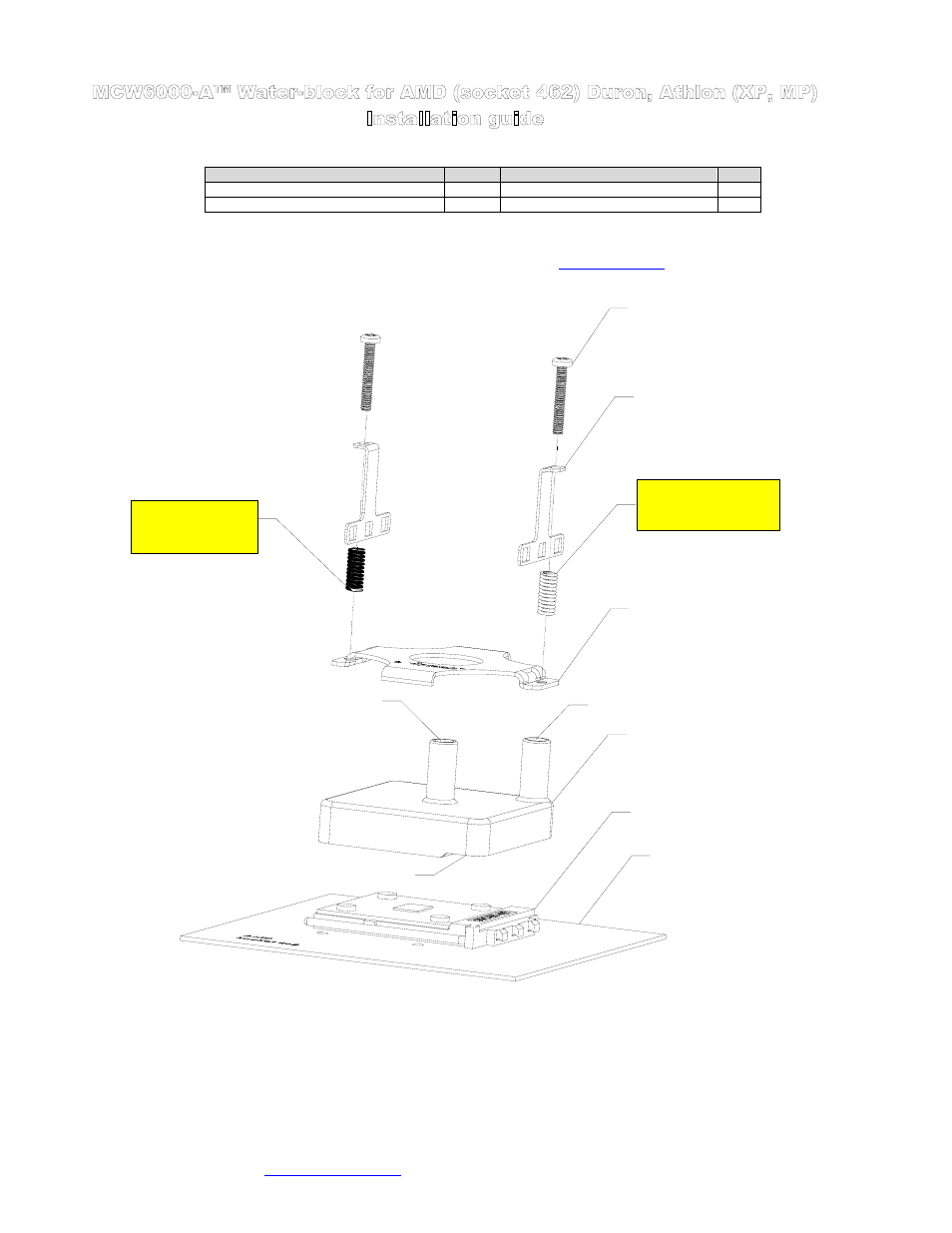

6 -3 2 x 1 .0 0 " p h ilip s
3 -T c lip
M C W 6 0 0 0 -A w a te r-b lo c k
so c ke t 4 6 2 m o th e rb o a rd
so c ke t "C a m b o x "
S te p s id e o ve r " C a m b ox "
IN L E T
D IS C H A R G E
STIFF spring
black color
SOFT spring
metallic color
SK7 hold-down plate
Figure 1
