Parts list
Parts QTY PARTS QTY
MCB-120™ Housing assembly 1 Coolsleeves™ 20” (*)
Retention hardware (screws, etc.) 1 PCI Pass-Thru kit 1 (*)
½” tubing 2’ (*) Worm drive clamps 4 (*)
(*) Only included with complete kit

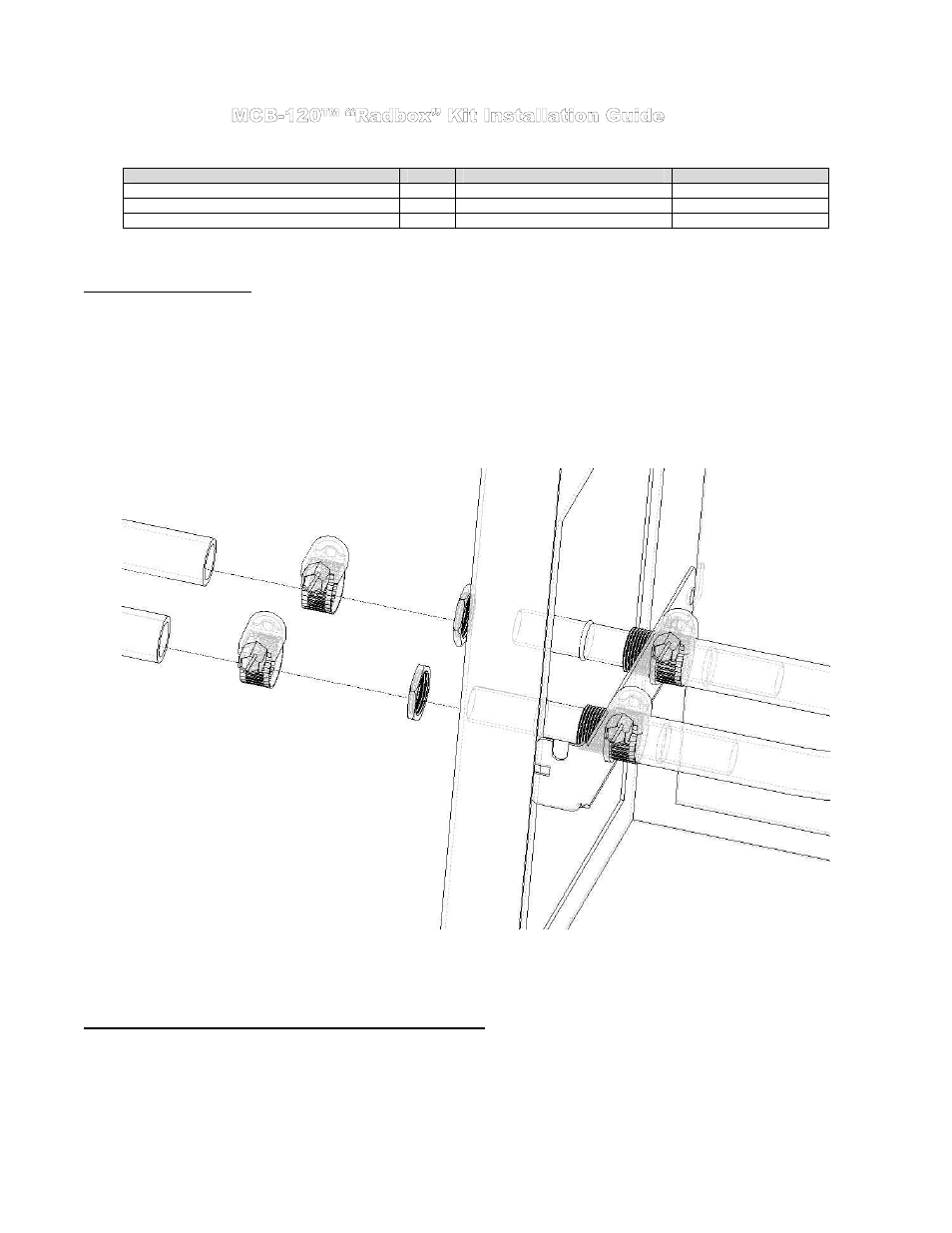

1. PCI pass-thru kit installation
o Insert the PCI bracket into an available opening, and secure it to the chassis.
o Insert your fan electrical connector through the slotted hole of the PCI bracket now. Only 3-pin connectors (the type that
connect to the motherboard) are small enough to pass through the slotted hole. 4-pin Molex connectors (the type that
connect to your power supply) will require that the terminals be removed from the Molex housing first.
o From inside of the chassis, insert the pass-thru adapters through each hole of the PCI bracket. The threaded portion of
the adapters should be exposed outside of the case.
o
Screw the nuts to the adapters. The nuts are designed to slightly overlap the edges of the PCI chassis opening, to
provide a more secure installation.
2. Housing / fan & radiator installation: please refer to diagram page 2.
