Swiftech MCW60 T User Manual
Page 4

3.
Mechanical Installation (all Radeon X1600 and earlier, using a 2-hole mount)
The MCW60-T back-plate is shipped in a 4-hole mount configuration which is the most common usage for this product.
As a result, the 2-hole mount necessitates that the posts be disassembled and reconfigured as follows.

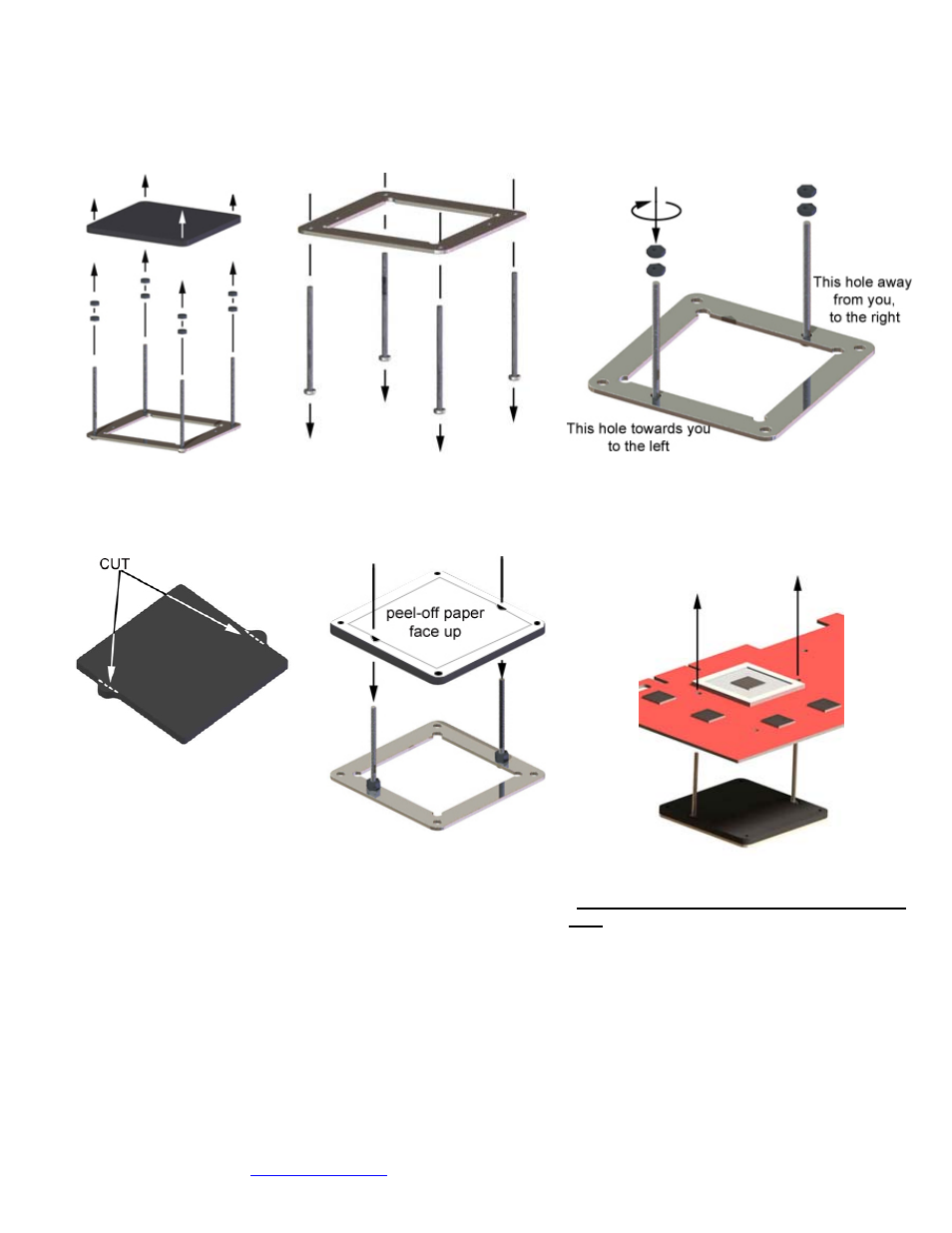

Step 1
Step 2
Step 3
Remove gaskets and nuts
Remove screws
Position plate as shown, insert screw in each of
the 2 diagonal holes, and fasten with 2 nuts each.
Step 4
Step 5
Step 6
Re-cut the two ears of the
center gasket
Push the gasket down the posts
as shown and then peel-off the
paper
Apply the supplied thermal compound to the
GPU and then insert the back-plate with its gasket
thru the board.
