AMD® socket 462 – Athlon®, Duron®, MP, XP

Preamble:

It is necessary to remove the pre-installed hold-down plate prior to installation. Simply unscrew the 4 button head screws
holding the assembly together using the provided 5/64 Allen wrench, remove the hold-down plate, and re-install the screws
with the provided nylon washers instead as shown below.

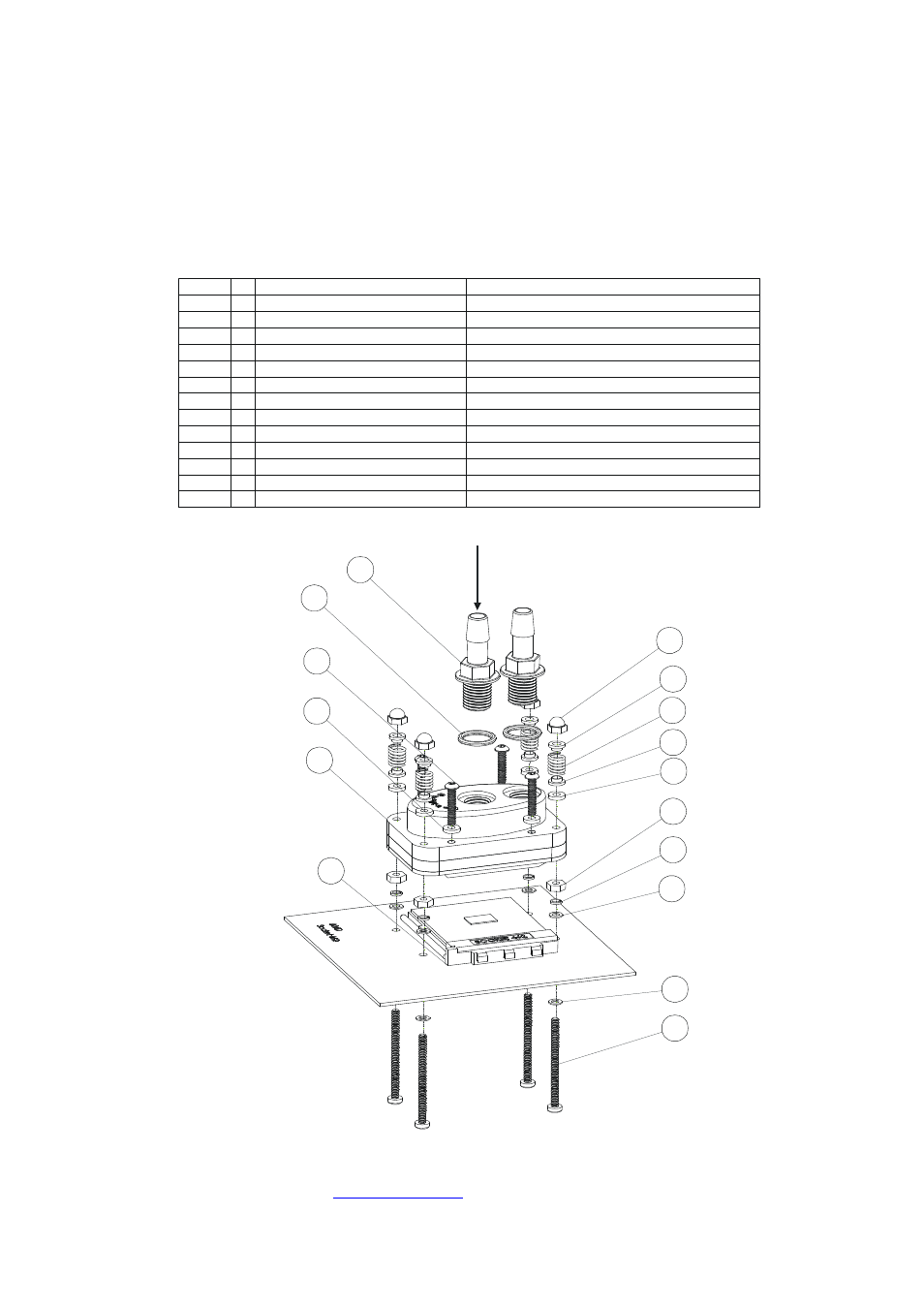

ITEM #QTY. PART NO.

DESCRIPTION

A

1 socket462

B

1 storm-assy2

C

2 1-4-straightx3-8-barb

1/4" NPSM Barb fitting

D

2 O-RING-9557K473

1-4'" NPSM barb fitting O-Ring

E

4 92949A151

6-32 x 3/4" button socket head screw

M

8 16FW006062

.31x.14x.06 nylon washer

F

4 6-32-Acorn-nut

G

4 SPRING6

70927compressed-to-0337

H

8 12SWS0444

NYLON SHOULDER WASHER

I

4 6-32-nut

6-32 nut

J

4 LOCK-WASHER#6

K

8 FW140X250X0215FB BLK

black fiber washer

L

4 6-32X1.750

6-32 x 1 3-4" philips screw

C

D

F

H

G

H

M

B

E

M

I

J

K

K

L

A

Inlet
