Intel® Xeon™ Socket 603/604
Use all parts from “common parts pack” except Philips screws: replace with the enclosed 6-32 1 7/8” long screws,
instead of the 1 ¾” long supplied in the common parts pack.
The following parts are only compatible with Xeon processors operating at 533Mhz and below, and are not compatible
with Intel Xeon “Nocona” class processors (800Mhz Front Side Bus) which require a different retention mechanism
available in option.

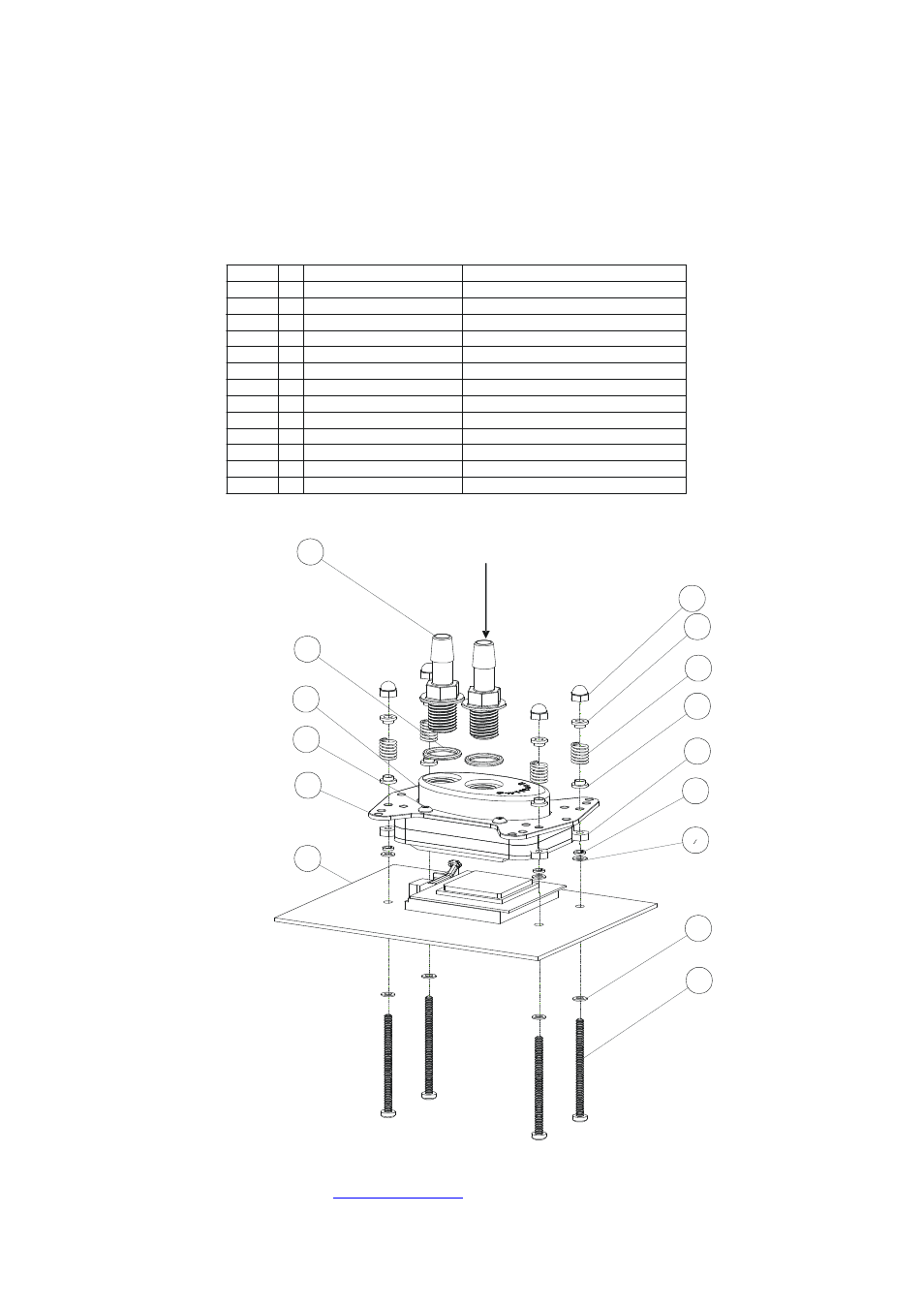

ITEM #QTY. PART NO. DESCRIPTION
A 1 Socket-603-604-dual
B 1 storm-assy2
C 1 STORM-HOLD-DOWN-R1Storm Universal hold-down plate
D 2 1-4-straightx3-8-barb 1/4" NPSM Barb fitting
E 2 O-RING-9557K473 1-4'" NPSM barb fitting O-Ring
F 4 92949A151 6-32 x 3/4" button socket head screw
G 4 6-32-Acorn-nut
H 4 SPRING6 70927compressed-to-0337
I 8 12SWS0444 NYLON SHOULDER WASHER
J 4 6-32-nut 6-32 nut
K 4 LOCK-WASHER#6
L 8 FW140X250X0215FB BLKblack fiber washer
M 4 6-32x1.7-8-philips
D
E
B
C
A
G
I
H
I
J
K
L
L
M
F
Inlet
