Swiftech FS020 ALL MODELS User Manual
Page 7
Swiftech Inc., 1703 E. 28
th
St., Signal Hill, CA 90755 T. (562) 595-8009 F. (562) 595-8769
Subject to change without notice
- 7 -

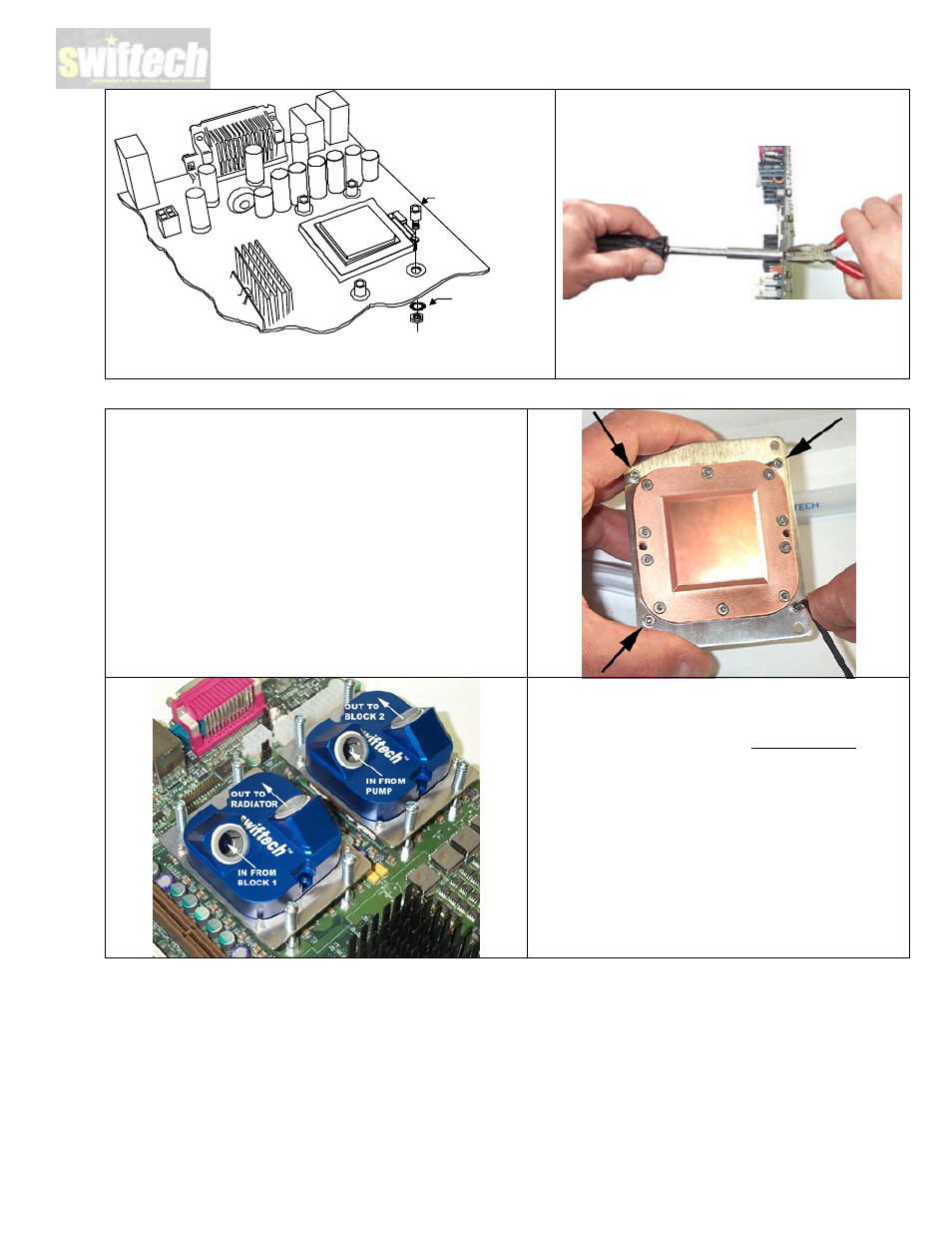

Fiber washer
and Hex lock-nut
on back side of
the MB
Standoff
Install standoff in each one of the four holes surrounding the
socket. Keep the standoff centered over the MB holes, and
secure with fiber washer and locknuts on backside of the MB.
Maximum torque not to exceed 16 in lb
Using a SMALL pair of pliers to hold the locknuts will prevent
excessive torque to the standoff, which could result in the
standoff stem breaking off.
Block orientation
The MCW5000-PX can be oriented in any direction that suits your needs.
Removing the 4 socket screws that attach the frame to the housing will
allow you to rotate the frame 90
°
, so that inlet and outlet face up and
down instead of left an right.
Install the block onto the CPU, and gradually tighten the screws
in a crisscross pattern until you feel that they reach the bottom of
the standoff. A “finger-tight” lock is sufficient, do not jam the
screw into the standoff ! Conversely, adjustments such as
tightening the screws only partially are strictly prohibited. Such
attempts will result in improper contact between the CPU core and
the heat sink, and result in CPU overheating.
