OM-SC-G 19
Parts List

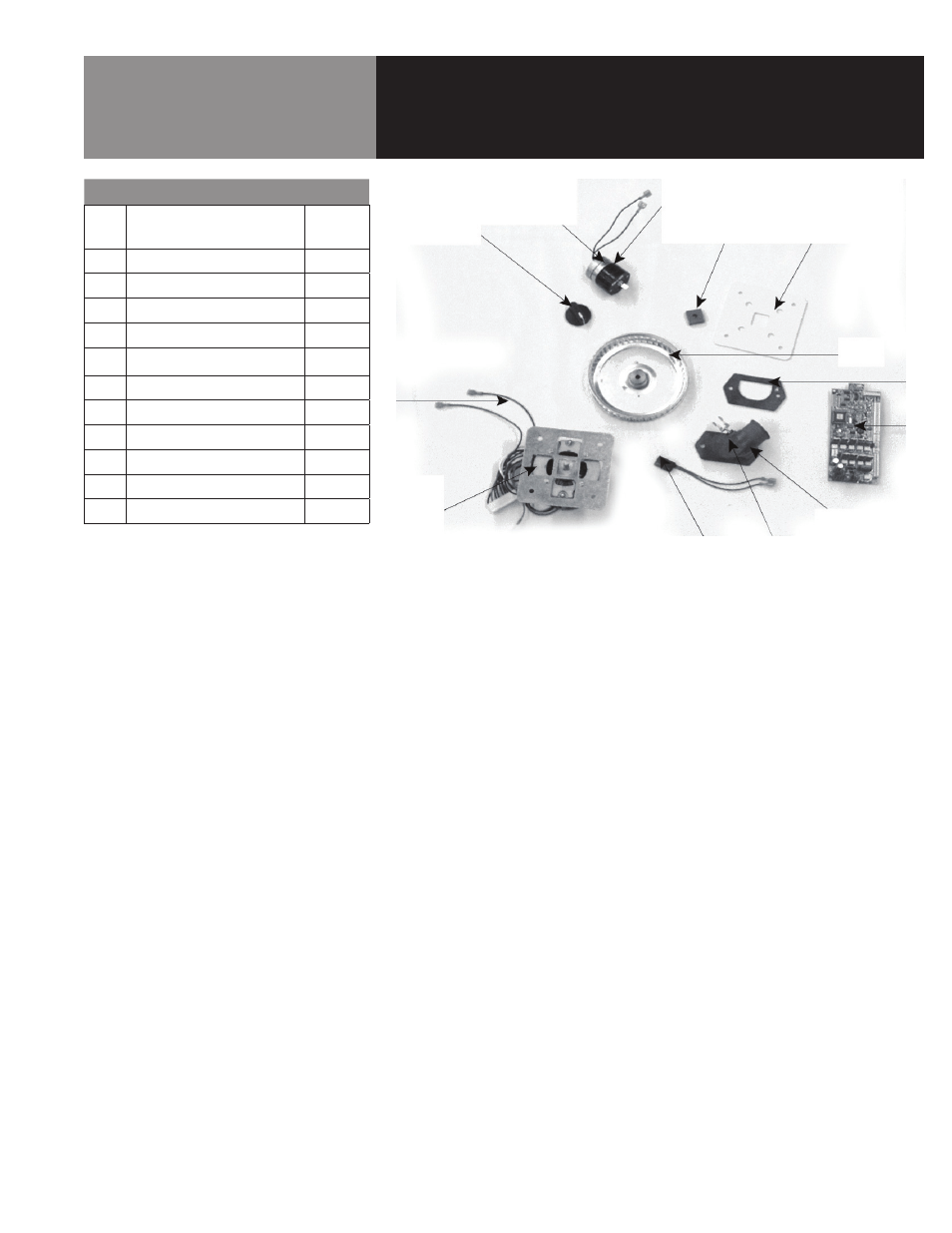

Steam Motor & Controls
Key Description Part #
1 FAN MOTOR W/MOUNTING
PLATE 096740
2 MOTOR SHAFT SEAL 096868
3 MOTOR INSULATOR 094135
4 FAN 096790
5 TIMER 096826
6 CONTROL BOARD 141082
7 TIMER KNOB 123100
8 DOOR SWITCH 096857
9 STEAM PORT KIT* 141617
10 READY THERMOSTAT 088865
11 STEAM PORT GASKET 099250
12 TIMER FASTENER NUT 101145
* = Includes steam port, ready thermostat and
steam port gasket
8 10
9
2 3 7
5
14
1
4
13
6
12
