4-7
To view received statistics per port
1. Select Individual Port Overview from the Receive
Statistics Graph screen to display a list of ports.
2. Select a port number, for example, Port 1.
The screen displays a graph at the port level, similar to
Figure 4-5.

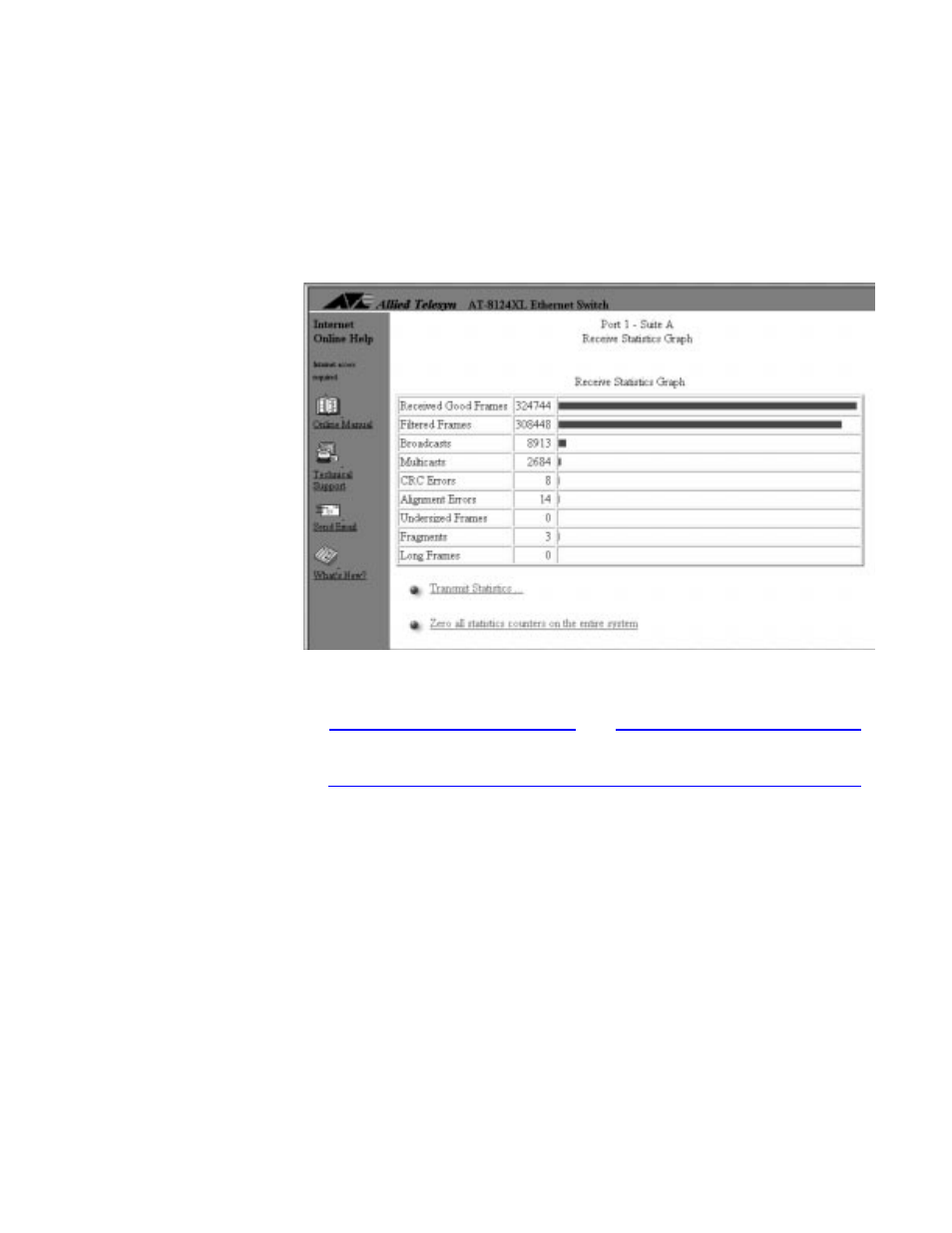

Figure 4-5 Graph of a Port’s Received Frames
Note
You may also view an individual port’s receive statistics through the
Port status and configuration> menu.
To view received statistics per frame type
Select a frame type (e.g., Filtered Frames, Forwarded
Frames , and so on) from the switch-level graph (Figure 4-4
on page 4-5) that lists all frames.
Omega displays that frame’s statistics according to ports,
similar to Figure 4-6.
Return to main menu.
