$70654#8VHU·V#*XLGH
3-19
'HILQLQJ#WKH
9/$1V
Menu: Virtual LANs
To define VLANs
In this procedure, you will configure two VLANs: East and West.
1. Select Virtual LANs from the main menu to display the
Virtual LAN Menu .
2. Select Virtual LAN definitions to display the VLAN
Definition Menu .
As this screen shows, there is one VLAN on the list: Default
VLAN.

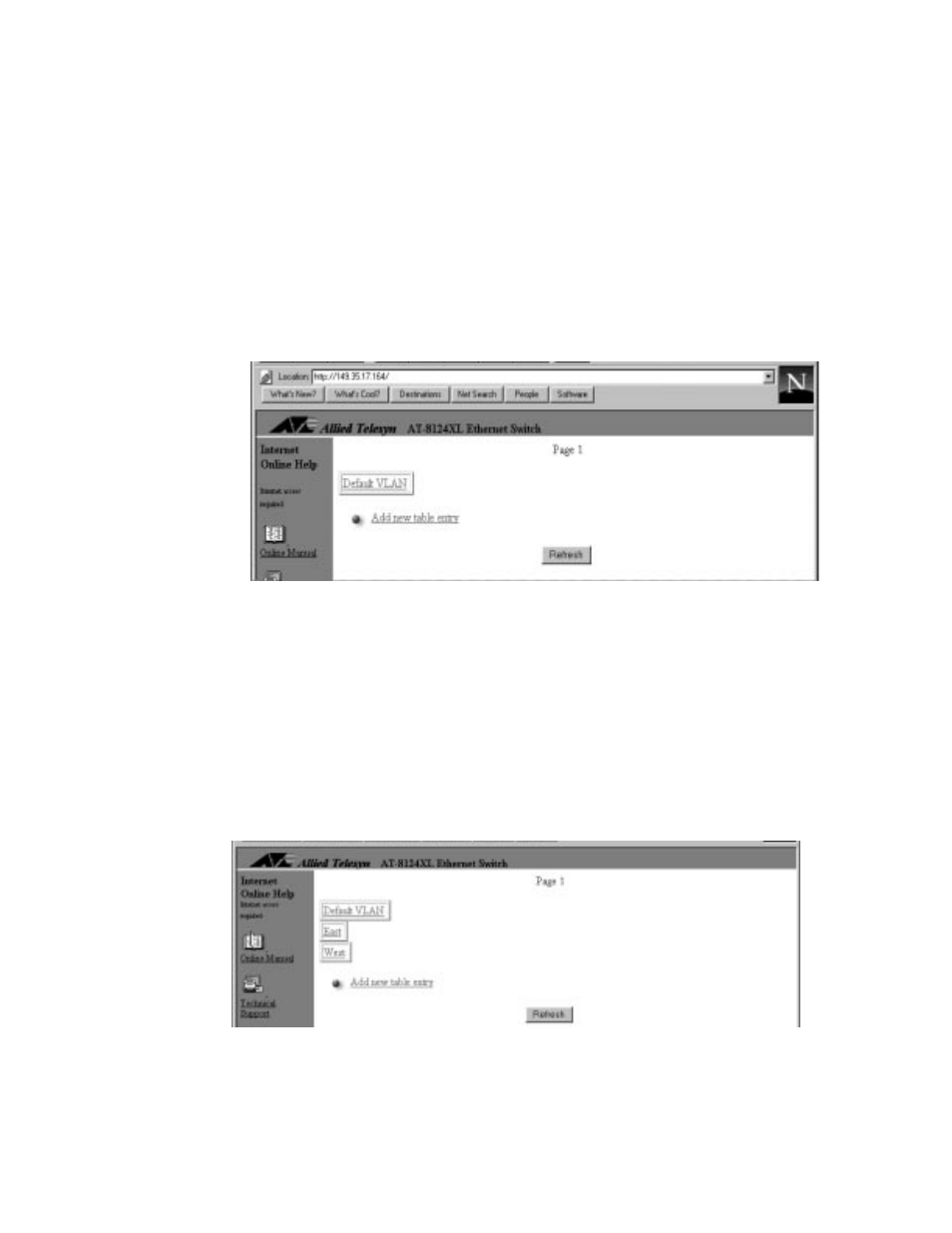

Figure 3-8 VLAN Definition Menu
3. Select Add new table entry to display the next screen.
4. Enter the name East in the type-in field.
5. Repeat the procedure from the beginning to define another
VLAN, West.
6. Go to the VLAN Definitions Menu to display the VLANs you
just defined. Your VLAN list may now look like the following
screen:
The screen displays up to four VLANs and expands to another
page as the VLAN list grows. VLANs East and West don’t have
ports assigned at this time.
