Chapter 4
Switch Configurations
This chapter provides network configuration examples using the
switch models described in this guide.
The Switch in a Standalone Configuration

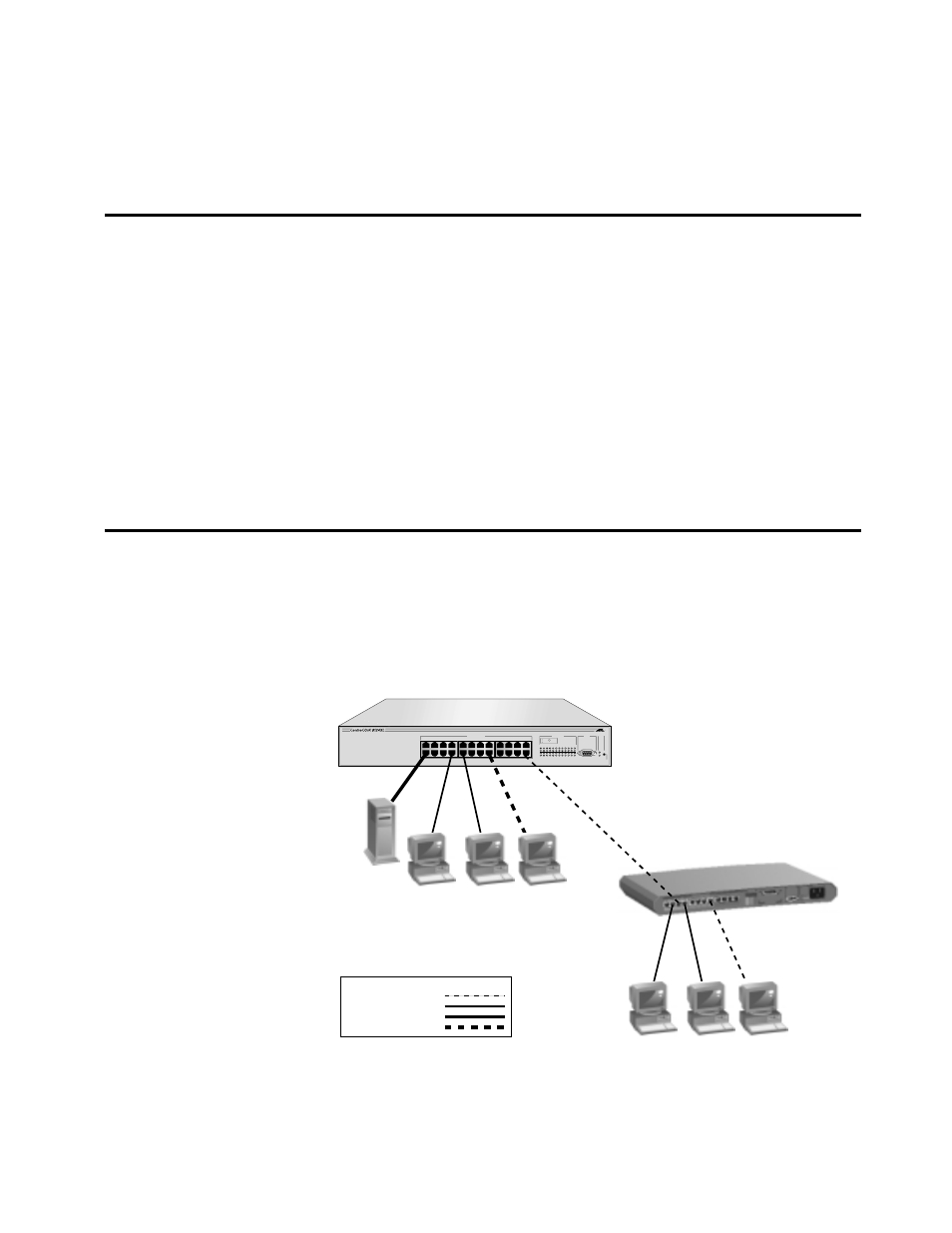

Figure 4-1 shows the AT-8124XL used as a standalone switch for a
group of heavy traffic users. Switching is brought to the desktop
either through a single end-station per switch port or through a
multi-port hub. A 100 Mbps server is connected to a port, providing
end stations high-speed accessibility to its applications.
Figure 4-1 The AT-8124XL Switch in Standalone Configuration
RS-232 TERMINAL PORT STATUS
RESET
FAULT
POWER
10BASE-T / 100BASE-TX
FAST ETHERNET SWITCH PORT ACTIVITY
1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 10 12 14 16 18 20 22 24
LINK / RECEIVE 100M
10BASE-T / 100BASE-TX 1X 3X 5X 7X
2X 4X 6X 8X
9X 11X 13X 15X 17X 19X 21X 23X
10X 12X 14X 16X 18X 20X 22X 24X
Legend
Shared 10/100 Mbps Link
Dedicated 10 Mbps Link
Dedicated 100 Mbps Link
10/100 Mbps Link
AT-8124XL
Hub
Workstations
Server
Workstations
