Figure8: sc connectors, Figure9: sc connector with lock – Allied Telesis AT-MR912TX User Manual
Page 31
AT-MR912TX Hub Installation Manual
11

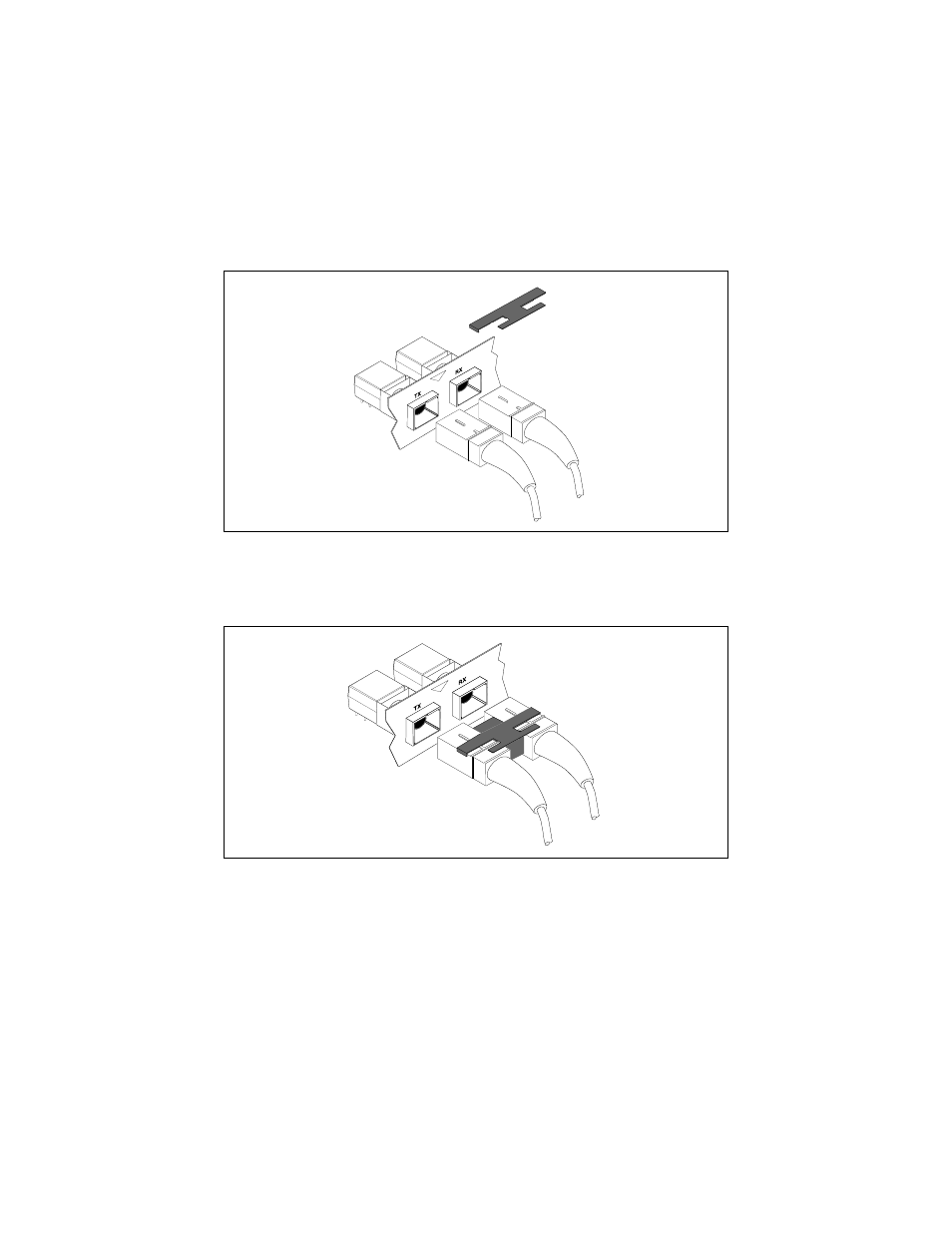

Figure 8 shows an SC connector matrix with the locking device removed and
suspended over the connectors.
Figure 8: SC Connectors
Figure 9 shows an SC connector group with the locking device installed.
Figure 9: SC Connector With Lock
