AT-MR420TR and AT-MR820TR Installation Guide
29
10Base2 Backbone
A maximum of 30 AT-MR420TR/AT-MR820TR Micro Repeaters can
be connected in a network using 10Base2 (thin Ethernet). When you
use the BNC port, you avoid using transceivers to complete the linkage.
See Figure 18.

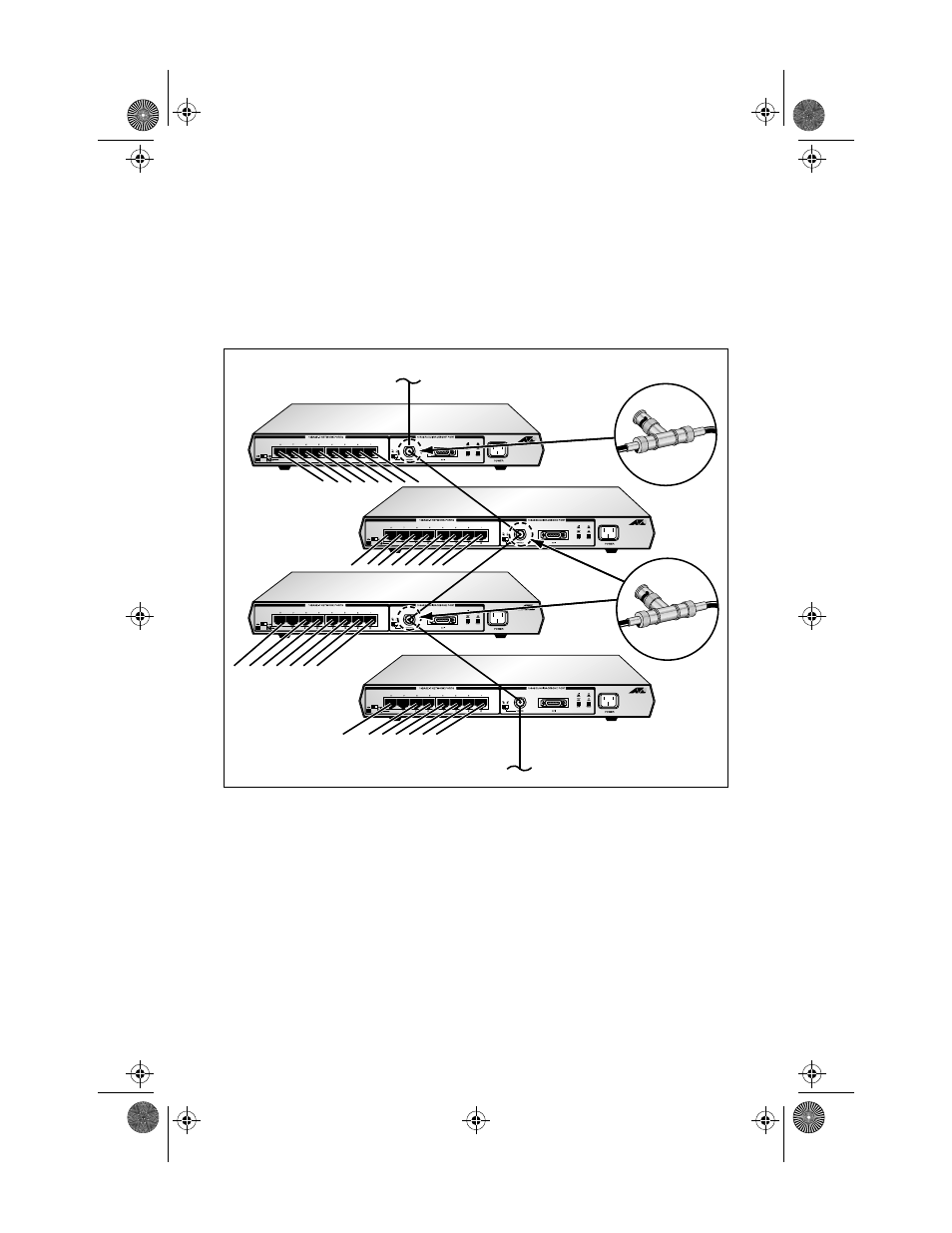

Figure 18: AT-MR820TR on a Backbone Using the BNC Network Port
MRx20TR(STP/UTP)_BookA Page 29 Thursday, April 3, 1997 5:24 PM
