Installation
10
LED Status Indicators
The front panel indicators are grouped into the following categories:
❑ Network Load
❑ Port Status
❑ Hub Status
Network Load Indicators
Eight Network Load LEDs indicating the percentage of network
utilization, are located on the front panel. Figure 5 shows these LEDs.

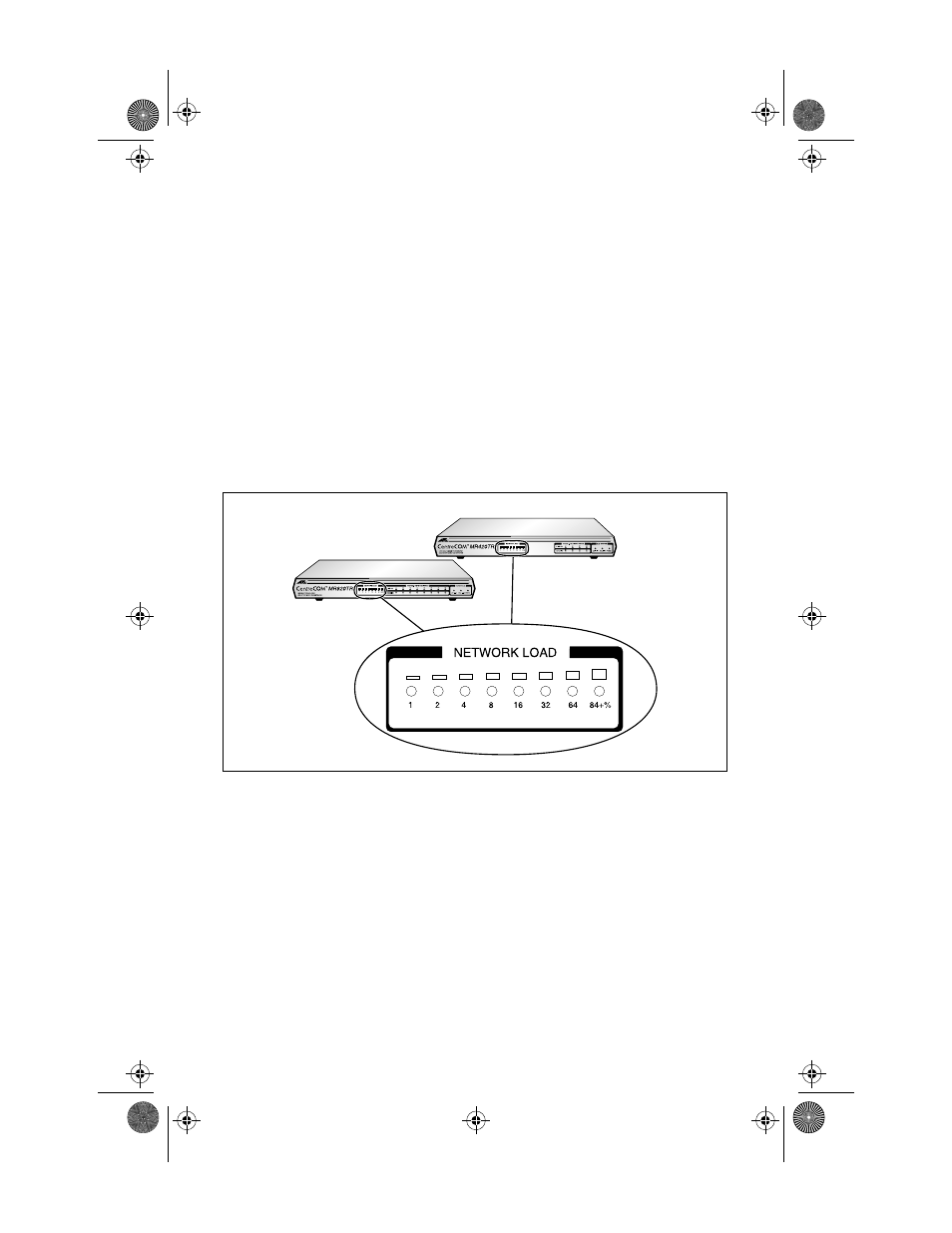

Figure 5: Network Load Indicators
Port Status Indicators
Two Port Status indicators are associated with each 10Base-T (RJ45)
network port. Located on the front panel of the repeater, these LEDs
indicate whether the port is linked, receiving data, or both. See
Figure 6.
