Product Description
2

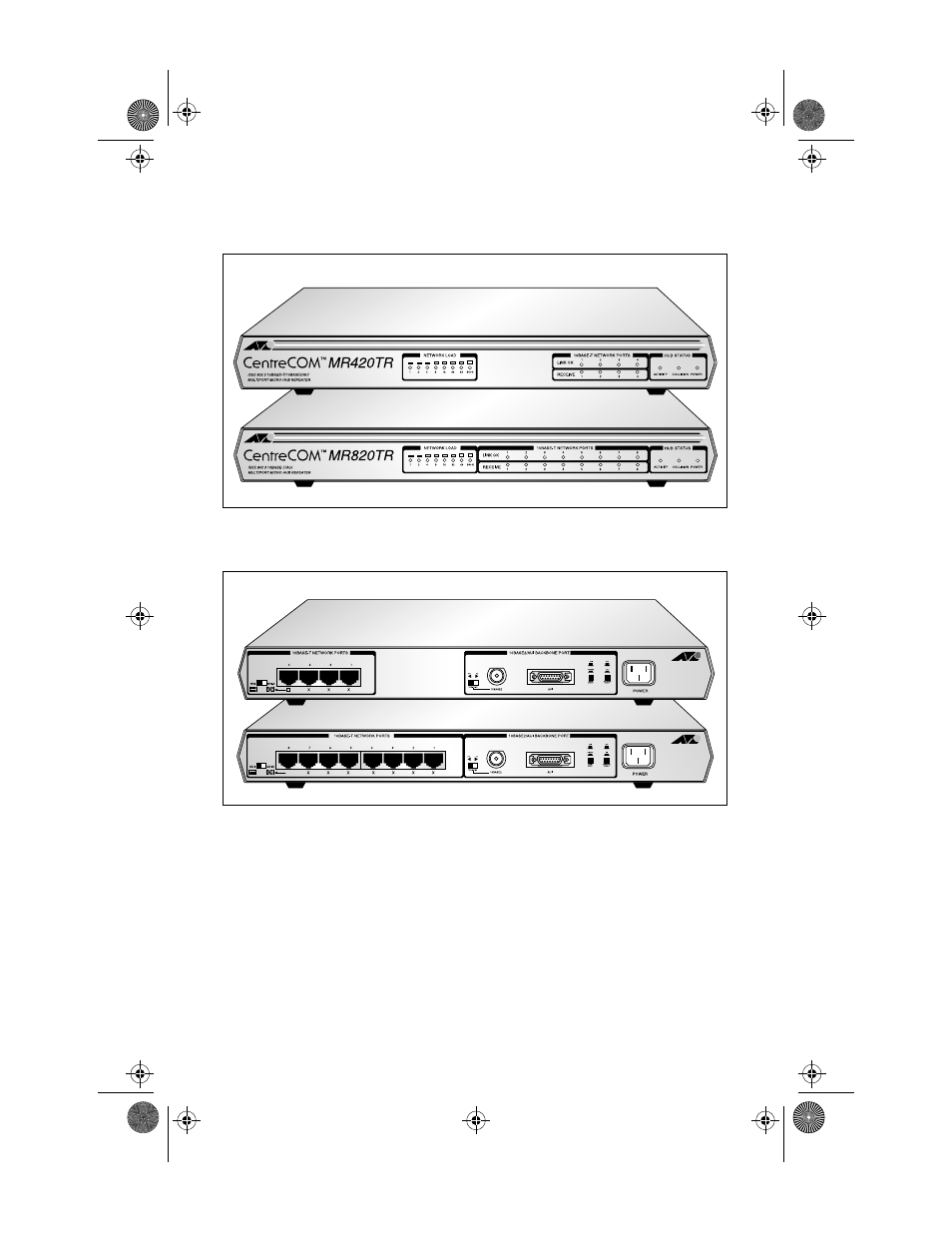

Figure 1: AT-MR420TR and AT-MR820TR Front Panels
Figure 2: AT-MR420TR and AT-MR820TR Rear Panels
On the back panel are four/eight STP/UTP RJ45 network ports,
including Port 4/8, an uplink port, as well as the 10Base5 and 10Base2
backbone network ports, Figure 1 and Figure 2 also show the three-pin
AC power receptacle.
