Chapter 2: Installation
72
Cabling a Dual SC Connector
To connect a fiber optic cable to a dual SC connector, perform the
following procedure:
Warning
Class 1 laser product.
1
Warning
Do not stare into the laser beam.
2

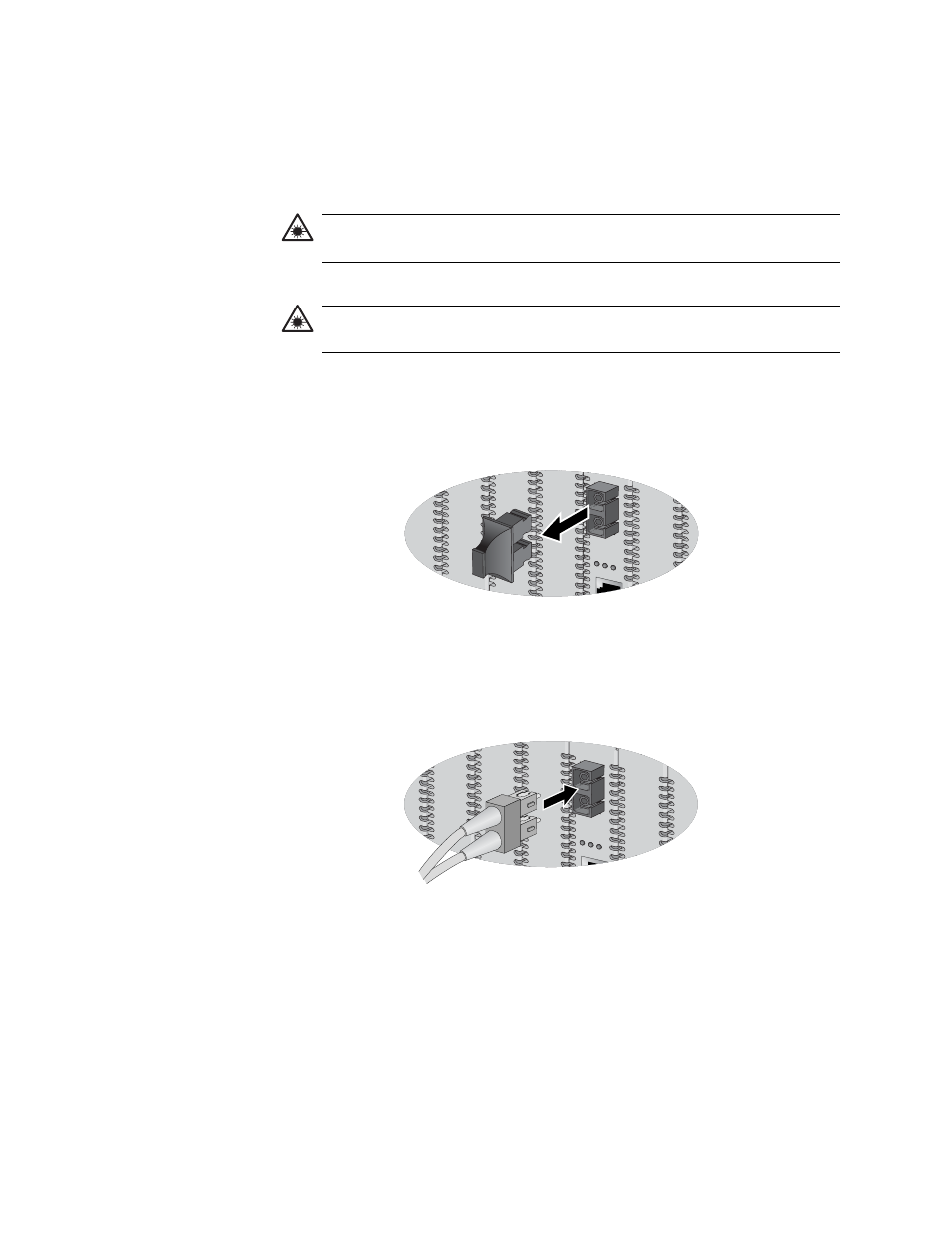

1. Remove the dust cover from the fiber optic port, as shown in
Figure 26. Removing the Dust Cover from a Dual SC Fiber Optic Port
2. Connect the appropriate optical cable to the port, as shown in
Figure 27. Connecting to the Dual SC Fiber Optic Port
3. Connect the other end of the optical cable to the link partner.
4. Power ON the end-nodes.
5. When the connection is established, the LK LED for the fiber optic port
should show green. If the LED is OFF, refer to “Troubleshooting” on
page 83 for instructions.
284
T
X
LK
AT FD
T
X
M
M
R
X
285
LK
AT
T
LK
AT FD
T
X
M
M
R
X
