Chapter 2: Installation
68
7. Slide the line card into the slot until the card’s faceplate is flush with
the front of the chassis, as shown in Figure 20, Figure 21, and
Figure 22.

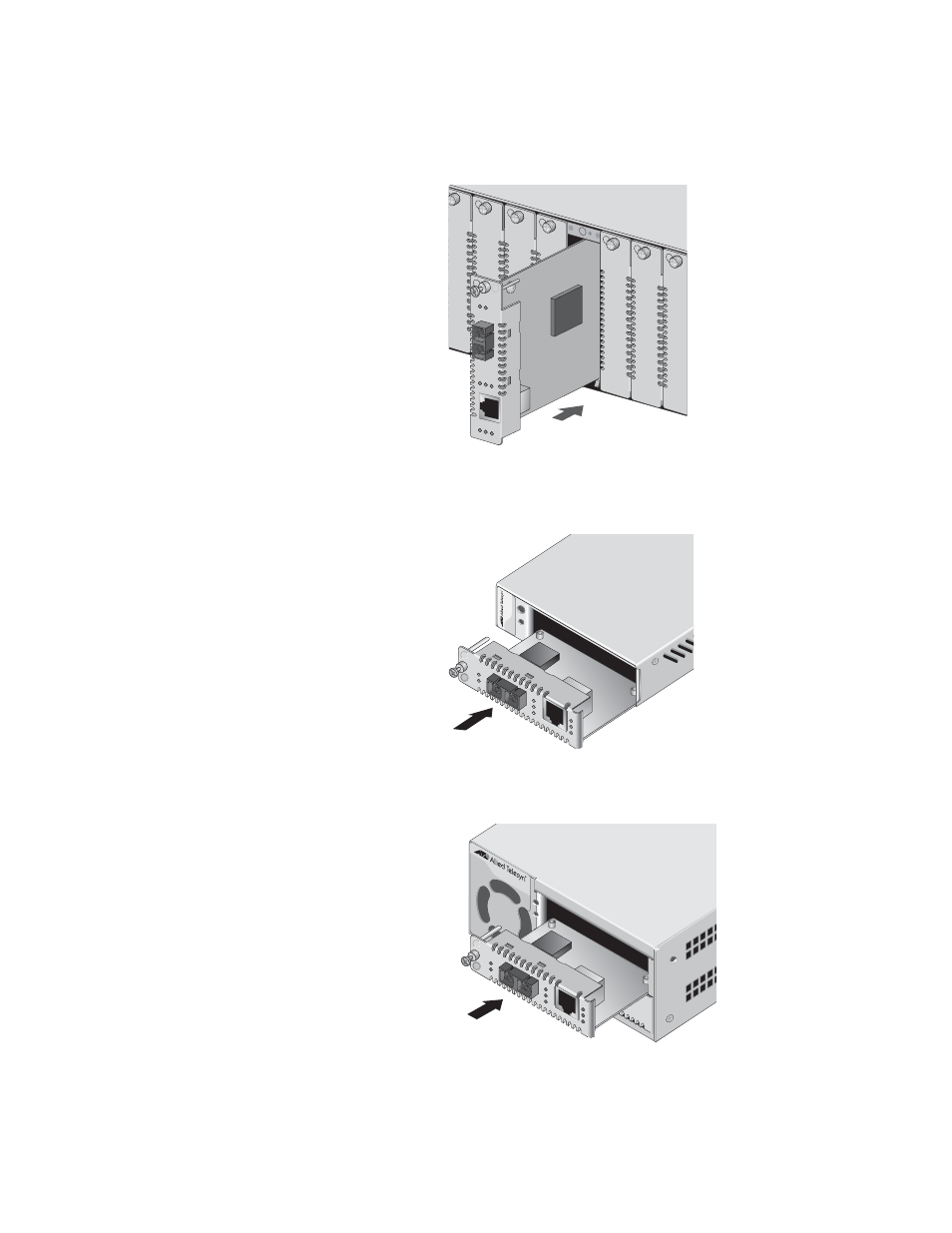

Figure 20. Inserting the Line Card in an AT-CV5000 Chassis
Figure 21. Inserting the Line Card in an AT-CV1000 Chassis
Figure 22. Inserting the Line Card in an AT-1200 Chassis
7
8
9
10
