Converteon Media Converter Line Cards Reference Guide
53
AT-CM2K0S
Line Card
The AT-CM2K0S line card, shown in Figure 11, feature only the
Diagnostic Mode DIP Switch.

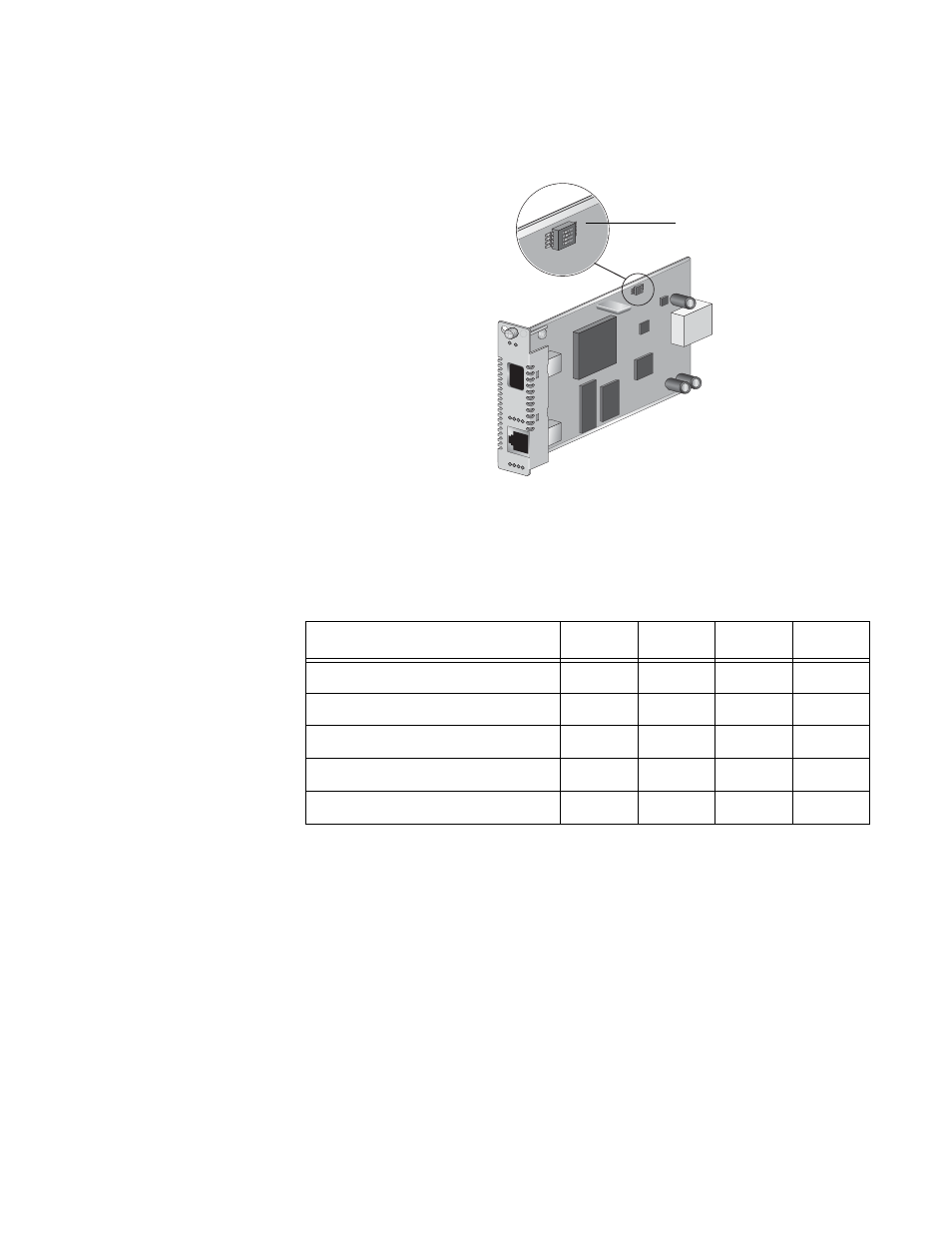

Figure 11. DIP Switch on an AT-CM2K0S Line Card
Table 16 lists the positions of the Diagnostic Mode DIP Switch for the
twisted pair port on the AT-CM2K0S line card.
“X” means the DIP switch position could be either ON or OFF.
Table 16. AT-CM2K0S – Diagnostic Mode DIP Switch Positions
Operating Mode DIP 1 DIP 2 DIP 3 DIP 4
Smart MissingLink (SML) OFF ON ON X
MissingLink (ML) OFF OFF ON X
OAM Bypass ON OFF OFF X
OAM Visible ON ON OFF X
Link Test (default) OFF OFF OFF OFF
536
3K
1 2 3 4
SW 2
AT-CM
2K0 S
LK AT
LK AT FD 100 0M
RDY
SFP
T
X
SML ML O AM 100 M
10/100/10 00
3K
1 2 3 4
SW2
Diagnostic Mode
DIP Switch
