Chapter 1: Converteon™ Fast Ethernet and Gigabit Ethernet Line Cards
54
AT-CV1KSS
Line Card
The AT-CV1KSS line card, shown in Figure 12, features only the
Diagnostic Mode DIP Switch.

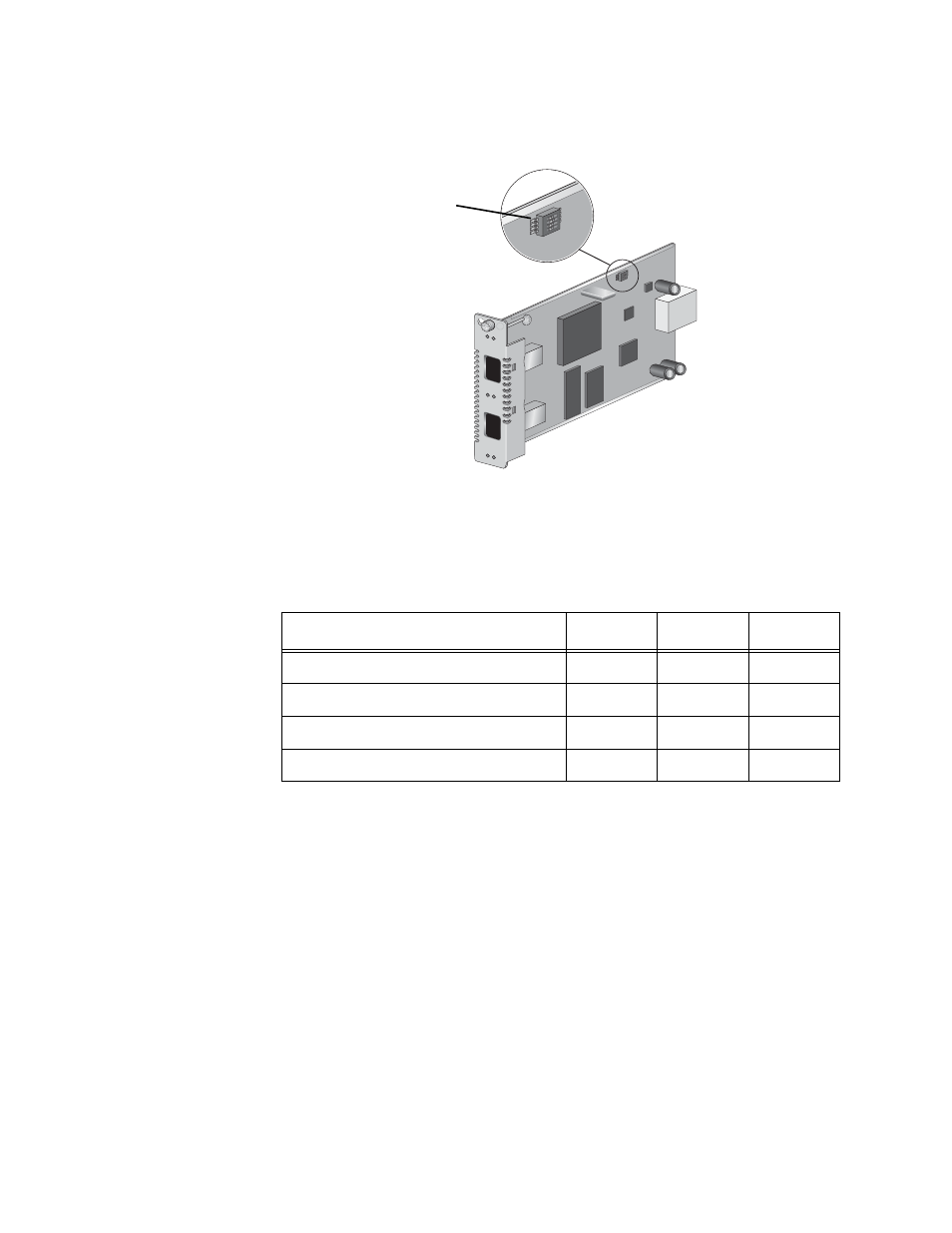

Figure 12. DIP Switches on an AT-CV1KSS Line Card
Table 17 lists the positions of the Diagnostic Mode DIP Switch on an
AT-CM2K0S line card.
“X” means the DIP switch position could be either ON or OFF.
Table 17. AT-CV1KSS – Diagnostic Mode DIP Switch Positions
Operating Mode DIP 1 DIP 2 DIP 3
Smart MissingLink (SML) OFF ON X
MissingLink™ (ML) ON OFF X
Link Test (default) OFF OFF X
Manufacturing Default Settings OFF OFF OFF
537
3K
1 2 3 4
SW 2
3K
1 2 3 4
SW2
AT-CV1
KSS
LK AT
LK AT
SML ML
RDY
S
F
P
S
F
P
Diagnostic Mode
DIP Switch
