8. Use a Phillips screwdriver to tighten the captive screw on the line card,
as shown in Figure 23.

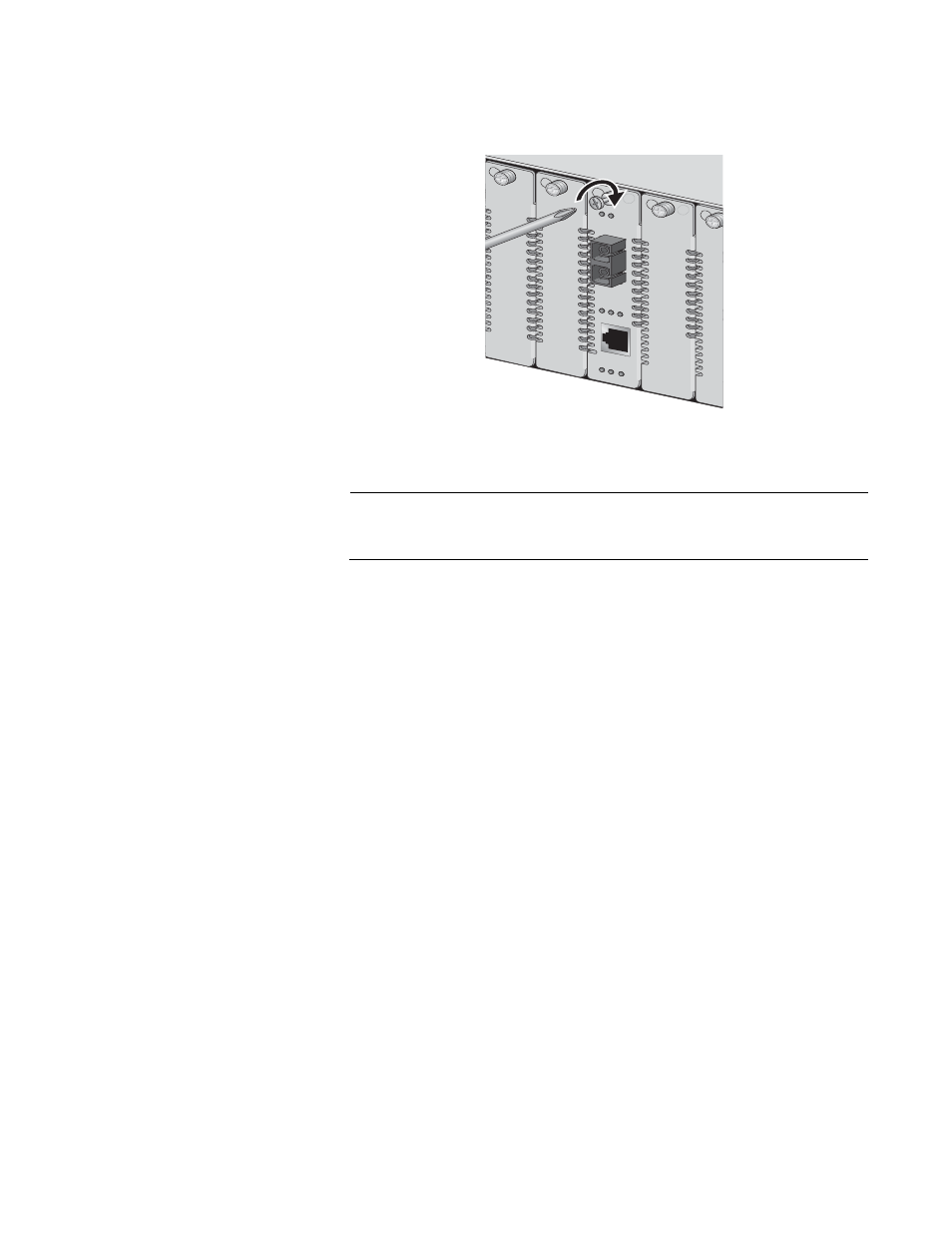

Figure 23. Tightening the Captive Screw
Note
Always tighten the captive screw to secure the line card to the
chassis.
9. If you purchased an AT-CV5M01 CPM card for the chassis, go to the
next procedure to install it. If you purchased additional line cards,
repeat this procedure to install the cards. Otherwise, go to “Cabling a
Converteon™ Line Card” on page 71.
