Chapter 1: Overview
18
Introduction
The AT-GS950/8POE switch features eight 10/100/1000Base-T auto-
negotiation ports, including four ports with Power over Ethernet (PoE)
capability, and two Gigabit ports. Figure 1 shows the front and back panels
of the AT-GS950/8POE switch. This switch supports auto-negotiation and
auto MDI/MDI-X on all local ports.
The AT-GS950/8POE switch is a WebSmart switch that is available
through a remote-web-based management session with a factory installed
IP address.
This switch can be installed on a desktop, in a rack, or mounted on a wall.

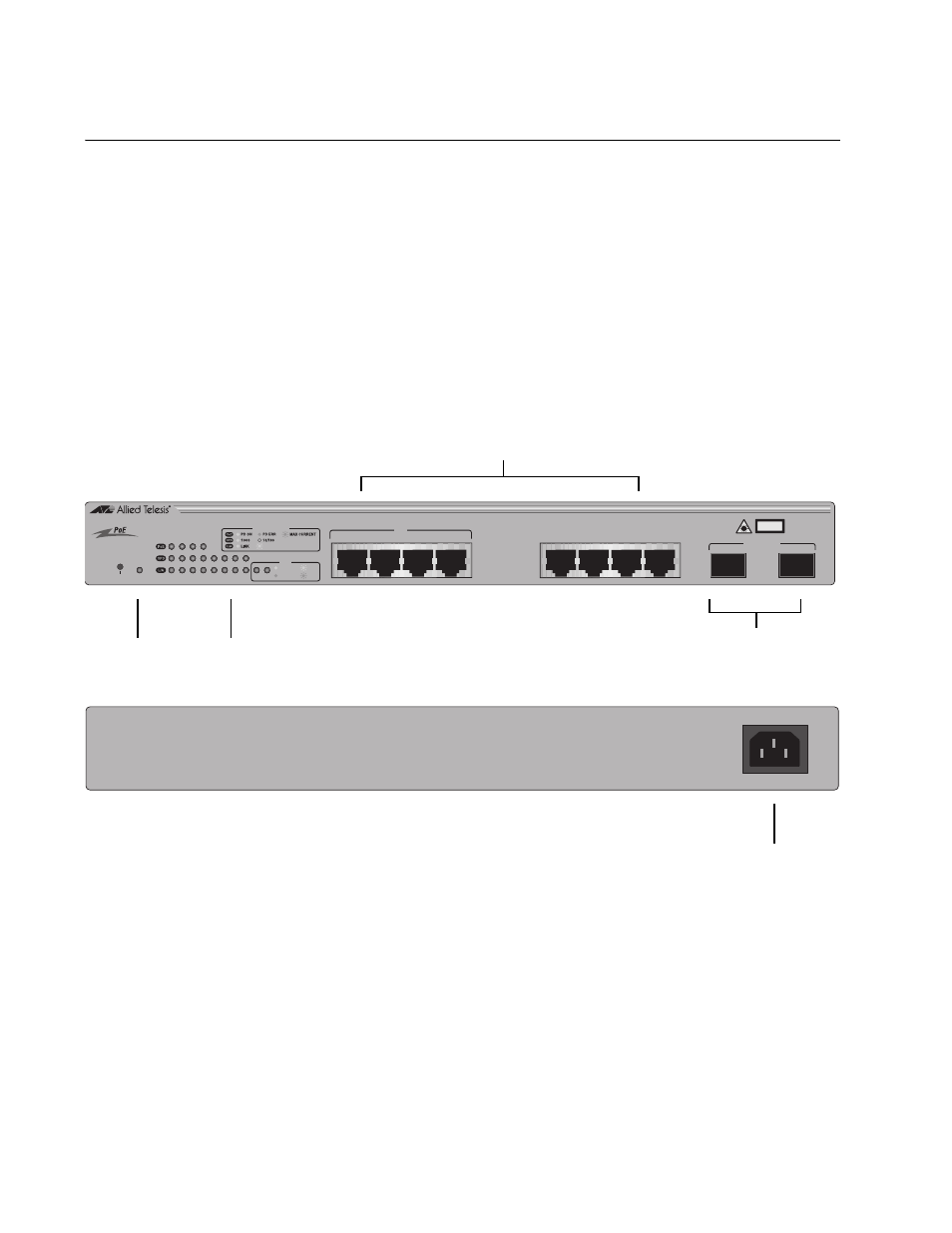

Figure 1. AT-GS950/8 POE Switch— Front and Back Panels
Features
The AT-GS950/8POE switch has the following features:
ˆ Eight 10/100/1000Base-T auto-sensing, auto-MDIX switch ports with
PoE available on ports 1 through 4
ˆ Two Gigabit Ethernet small form-factor pluggable (SFP) transceiver
slots for combo ports that support 100/1000Mbps
ˆ User-defined PoE power on four PoE ports
10/100/1000Base-T Ports
System
LED
SFP Transceiver Slots
AC Power
Connector
Port LEDs
