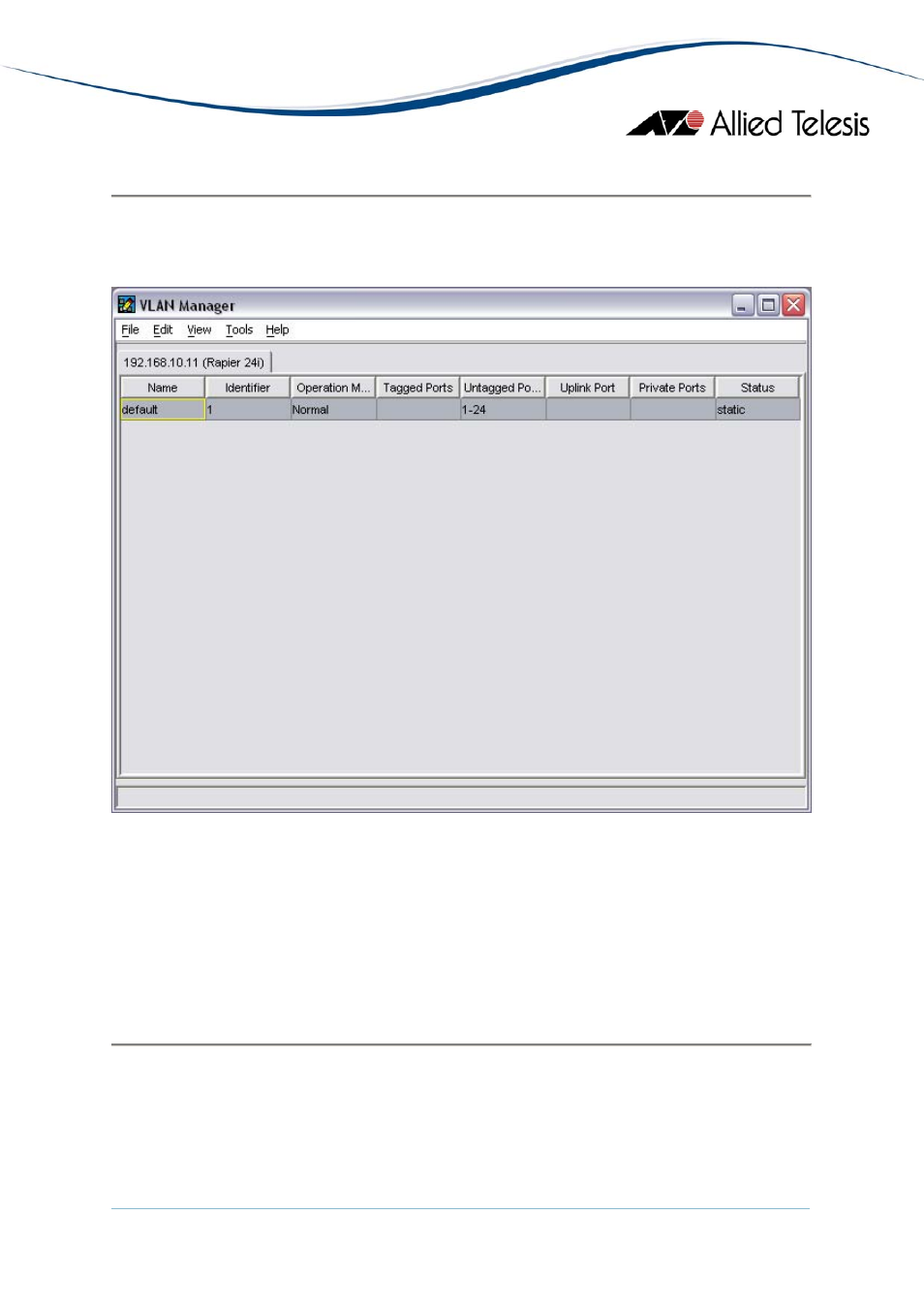

3.2 VLAN Information Window

When a target host is specified and VLAN Manager recognizes it as a device model that it
supports, the following window appears.

VLAN Information Window

The menu bar provides access to VLAN Manager's operations.

The VLAN Information Window displays the VLAN configuration of the device being

managed. Information is organized in a table format with each row representing one VLAN

definition and each column representing one attribute of the VLAN. VLAN attributes

displayed differ from one device series to another. Refer to Section 6 - Device Support
for the specific attributes displayed for each device series.

3 Main Window

AlliedView™-EMS 4.0.1 VLAN MANAGER USER’S GUIDE

Page 9 of 72
