Flagged
This port is a tagged member of the VLAN.
Note - For the AT-8600, AT-8700XL, AT-8800 and Rapier series, this port
is a private tagged member of the Private VLAN.
Note - For the AT-8900 and AT-9900 series, this port is either a private
tagged member of the Private VLAN or a core member of the Nested VLAN.
Selected
Note - For the AT-8600, AT-8700XL, AT-8800, Rapier, AT-8900 and
AT-9900 series, this port is an uplink untagged member of the Private VLAN.
Note - For the AT-9700, this port is a forbidden member of the VLAN.
Flagged
Note - For the AT-8600, AT-8700XL, AT-8800, Rapier, AT-8900 and
AT-9900 series, this port is an uplink tagged member of the Private VLAN.

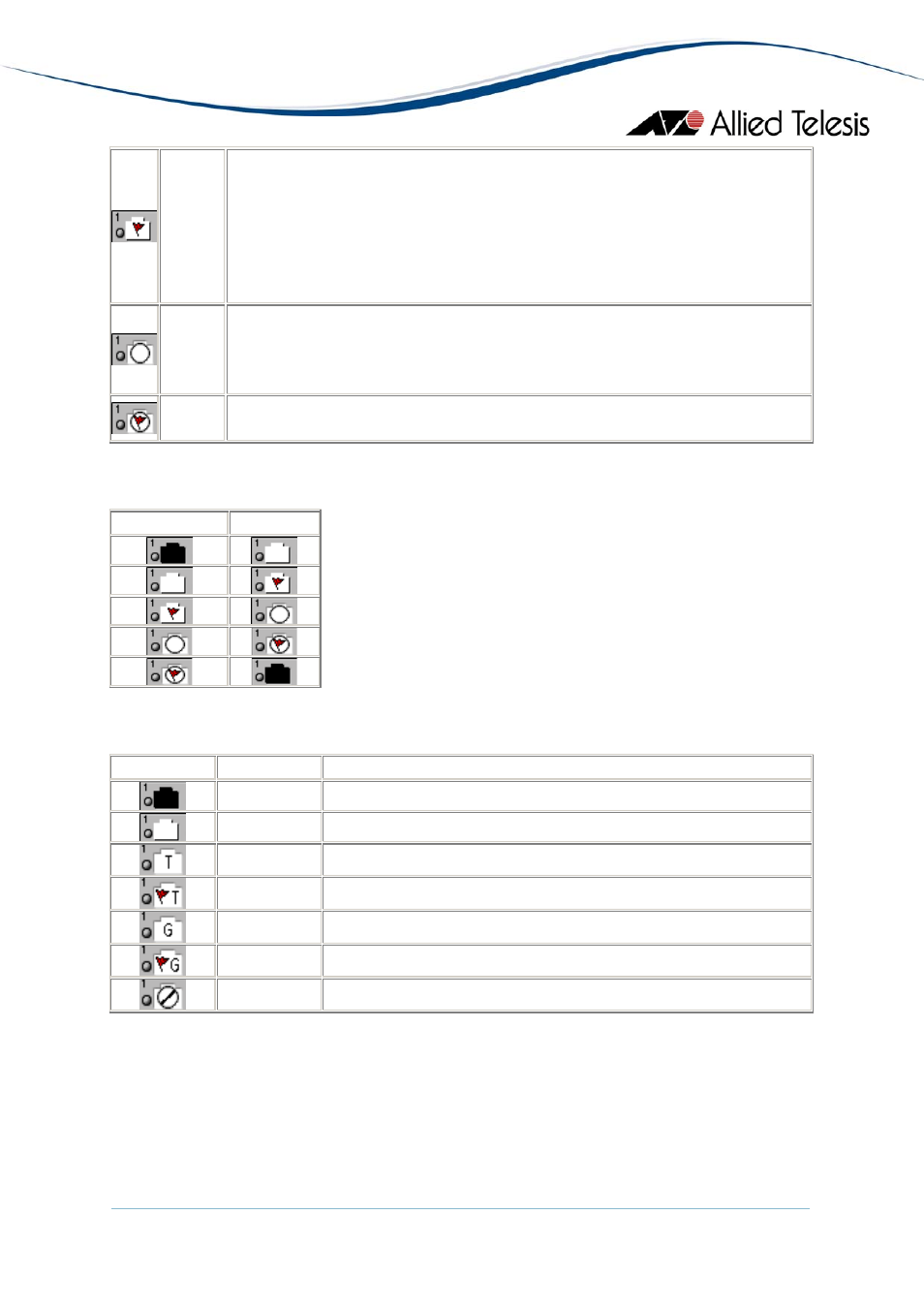

Clicking on a port will change its state as follows:
Current State New State
For the AT-8000S and AT-8000GS Series, a port can be in any of the following states:
Port Image State Description
Not Selected This port does not belong to the VLAN.
Selected This port is an access untagged member of the VLAN.
T-Selected This port is a trunk untagged member of the VLAN.
T-Flagged This port is a trunk tagged member of the VLAN.
G-Selected This port is a general untagged member of the VLAN.
G-Flagged This port is a general tagged member of the VLAN.
Forbidden This port is a forbidden member of the VLAN.
