AT-MC605 VDSL Ethernet Extender Installation Guide
35
Installing the AT-MC605 VDSL Ethernet Extender Subscriber Unit
The AT-MC605 Subscriber unit is normally used as a stand-alone device,
or can be used as a desktop device, or mounted to a wall.
Using the
Subscriber Unit
on a Desktop
To use the Subscriber unit on a desktop, perform the following procedure:
1. Remove all equipment from the package and store the packaging
material in a safe place.
2. Attach the four protective feet (provided) to each corner of the bottom
of the unit, as illustrated in Figure 6 , ”Attaching Protective Feet to the
Subscriber Unit”.

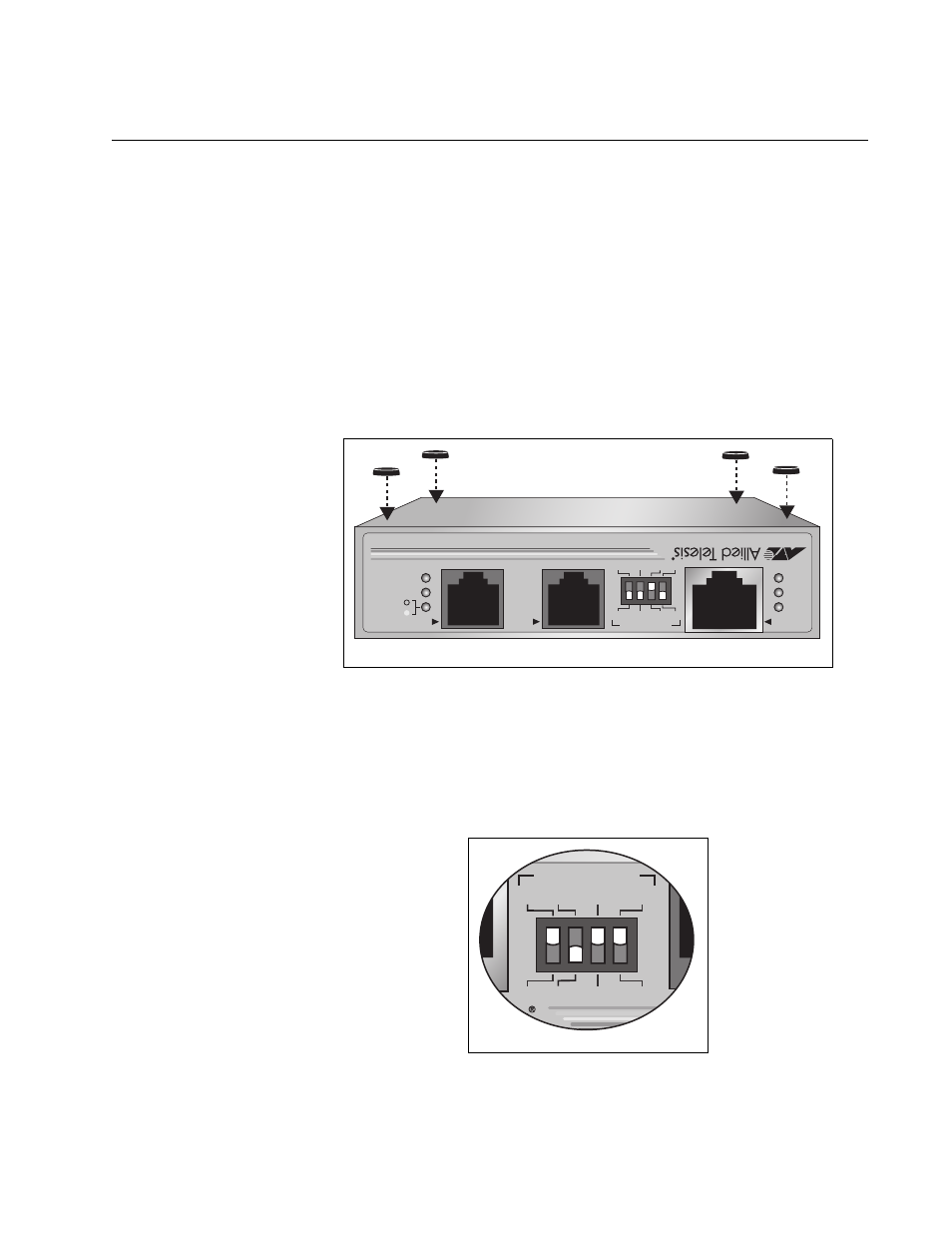

Figure 6. Attaching Protective Feet to the Subscriber Unit
3. Position the AT-MC605 Ethernet Extender on the desktop.
4. Configure the right VDSL CONFIG switch (SCBR/PROV) to the SCBR
position as shown in Figure 7.
Figure 7. Configuring AT-MC605 Ethernet Extender for Subscriber Mode
1592
VDSL LINE
10Base-T/
100Base-TX PHONE
LNK/ACT
100M
PWR
LINK
RATE
NO LIMIT FAST SCBR 6dB
RATE LIMIT INTL PRO V 9dB
AT-MC605 VDSL EXTENDED ETHERNET
VDSL CONFIG
PRO V
SCBR
1589
NO LIMIT FAST SCBR 6dB
RATE LIMIT INTL PROV 9dB
VDSL CONFIG
