RJ-45 Port Pinouts
The pin assignments of an RJ-45 10Base-T/100Base-TX connector and
port are illustrated in Figure 3.

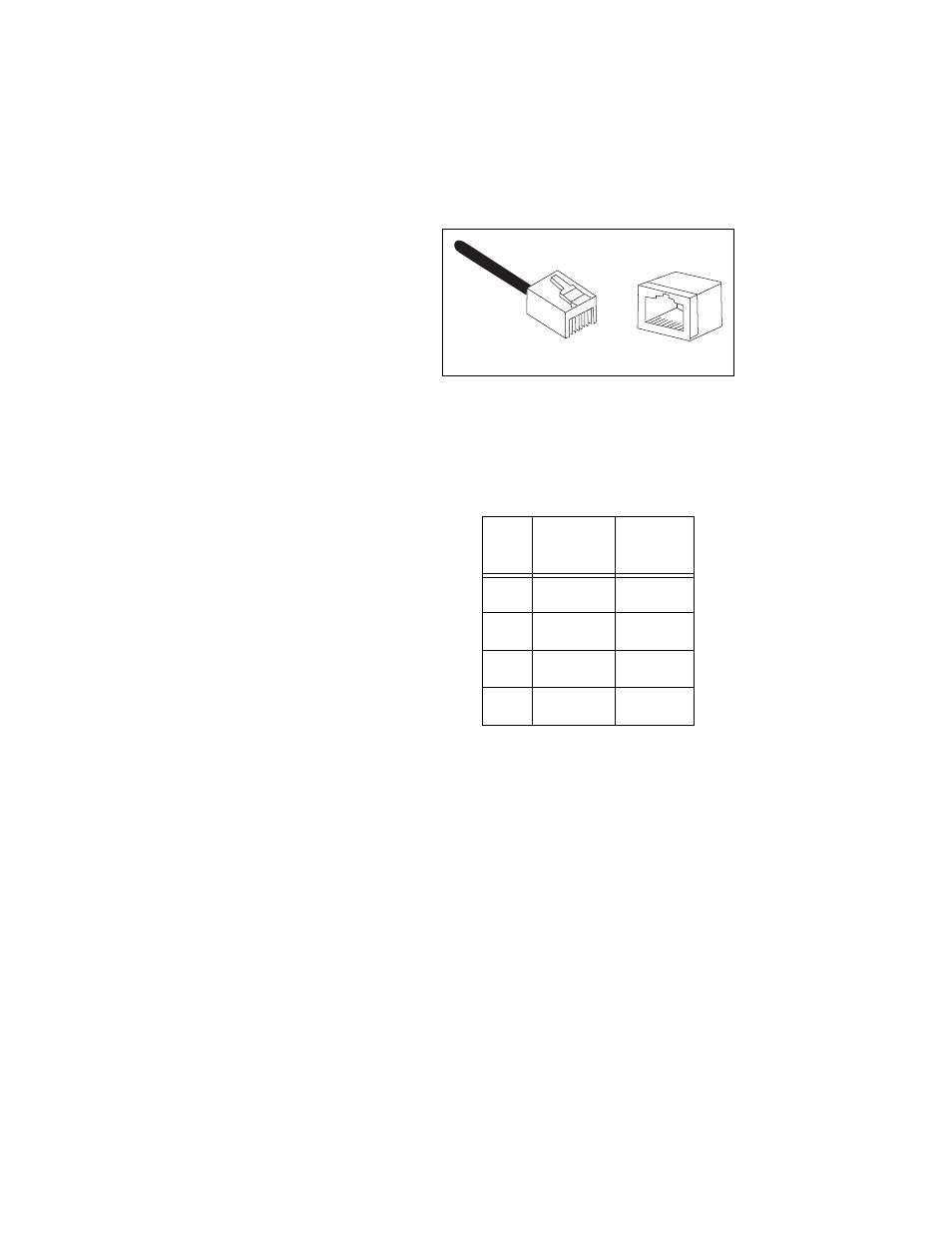

Figure 3. RJ-45 10Base-T/100Base-TX Connector Pin Assignments
Table 4 lists the RJ-45 10Base-T/100Base-TX connector pins and their
signals when the port is operating in either MDI or MDI-X configuration.
Table 4. RJ-45 Port Pinouts
Pin
MDI
Signal
MDI-X
Signal
1 TX+ RX+
2 TX- RX-
3 RX+ TX+
6 RX- TX-
8
8
1 1
