Chapter 2: Installing the Hardware
26
Replacing the Bracket
Depending on your PC, you may need to replace the bracket attached to
your adapter. The AT-2712FX/SC and AT-2712LX20/SC adapters are
shipped with the low-profile bracket attached to the adapter. The AT-
2912T adapter is shipped with the standard bracket attached to the
adapter.
The following procedures describe how to replace a bracket:
 “Replacing the Low-Profile Bracket” on page 26
 “Replacing the Standard Bracket” on page 28
In both procedures, the AT-2712FX/SC adapter is shown in the
illustrations. However, you can perform the procedures on all three
adapters.
Replacing the
Low-Profile
Bracket
To replace the low-profile bracket with the standard bracket, perform the
following procedure:
1. Remove the screws that attach the bracket to the adapter. See
Figure 5.

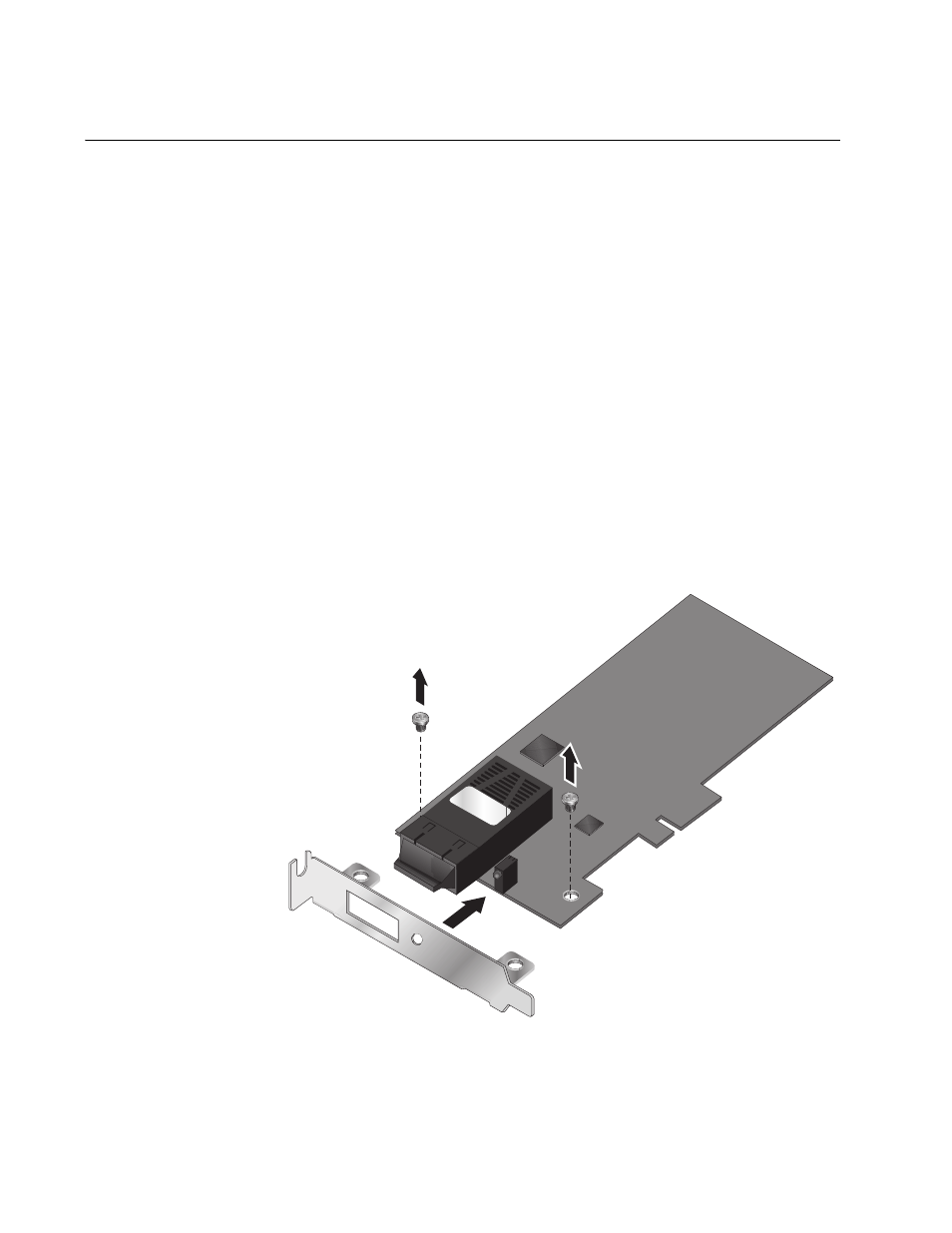

Figure 5. Removing the Low-Profile Bracket
1479
TX
RX
100
