Chapter 2: Installation
54
Starting a local management session
This procedure requires a terminal or a terminal emulator program and the
management cable that comes with the switch. To start a local
management session on the switch, perform the following procedure:
1. Connect the RJ45 connector on the management cable to the console
port on the front panel of the switch, as shown below.

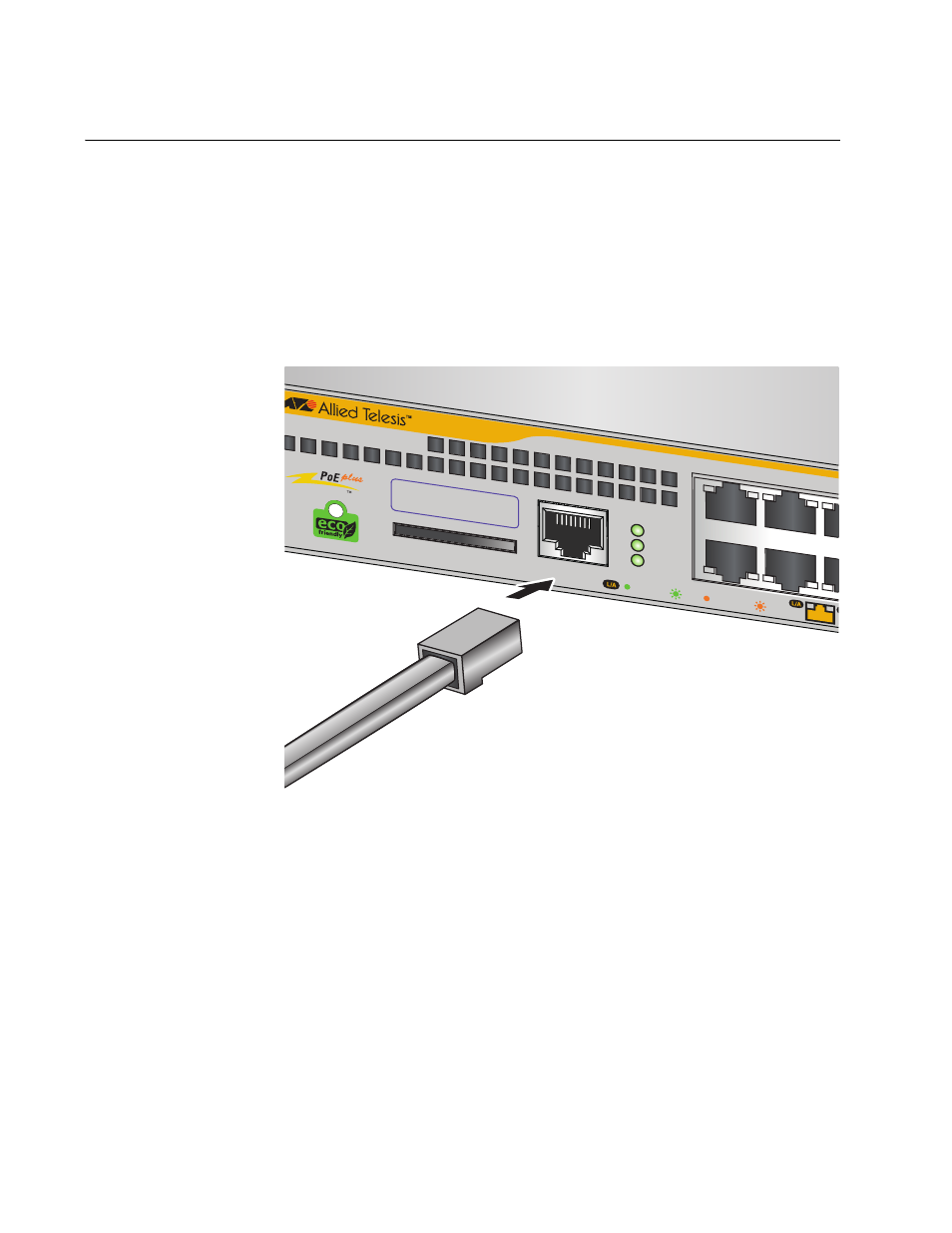

F IGURE 25. C ONNECTING THE MANAGEMENT CABLE TO THE CONSOLE PORT
OF AN X 230 S ERIES S WITCH
x230-10GP
CONSOL
E
RS-232
SD
FAULT
POWER
SD
1000 LINK
ACT
10/100 LIN
K ACT
2
4
1
3
MAC Address Lab
el
2. Connect the other end of the cable to an RS-232 port on a terminal or
PC with a terminal emulator program.
3. Configure the terminal or terminal emulator program as follows:

Baud rate: 9600 bps (The baud rate of the Console Port is
adjustable from 1200 to 115200 bps. The default is 9600 bps.)

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None
