Figure 19: attaching, Rack mount brackets to the at-x230-18gp switch – Allied Telesis AT-x230-18GP User Manual
Page 56
Chapter 2: Installation
46

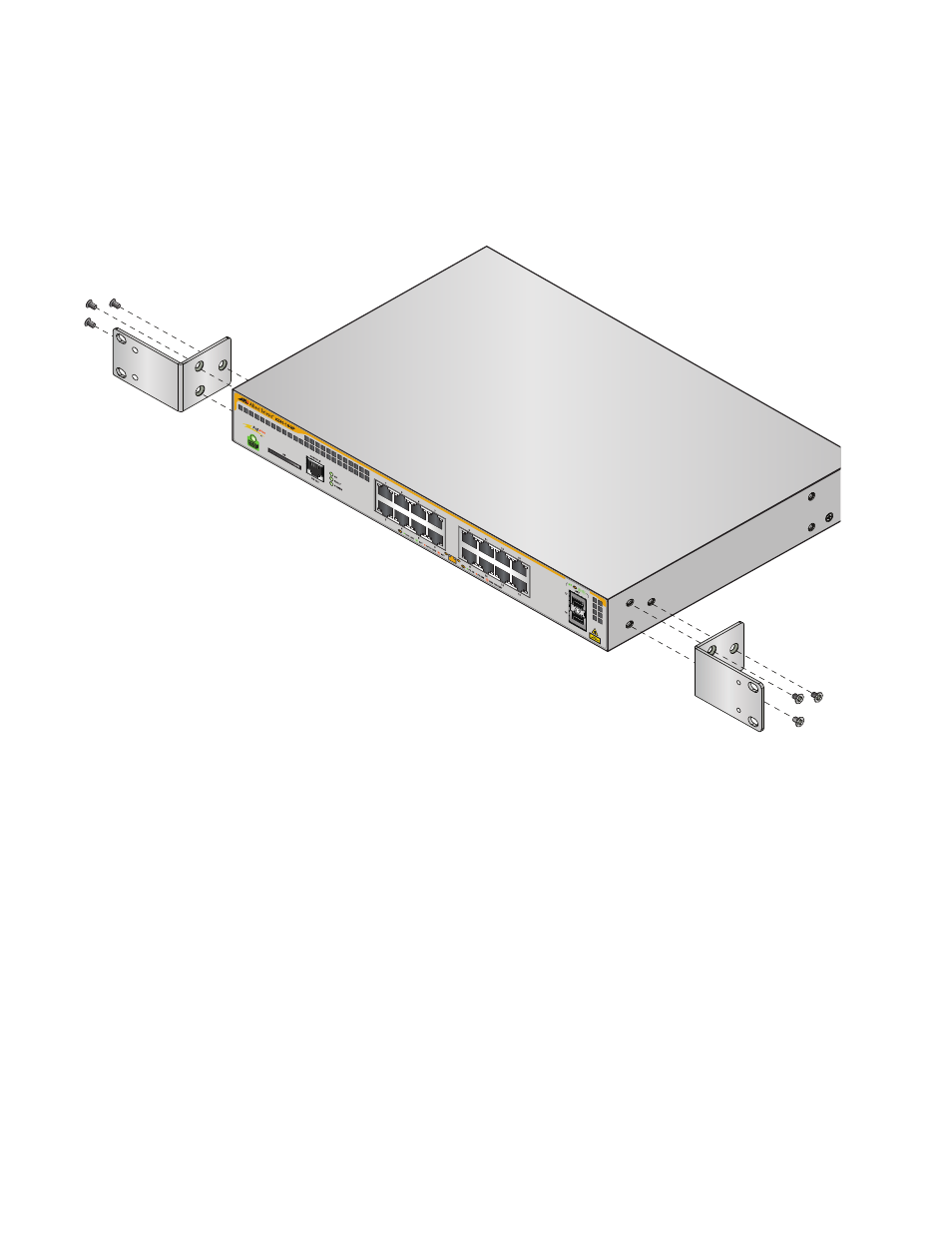

4. Attach two rack mount brackets to the sides of the switch using the six
bracket screws that come with the rack mount kit AT-RKMT-J13
(Figure 19).
F
IGURE
19. A
TTACHING
RACK MOUNT
BRACKETS
TO
THE
AT-
X
230-18GP
SWITCH
