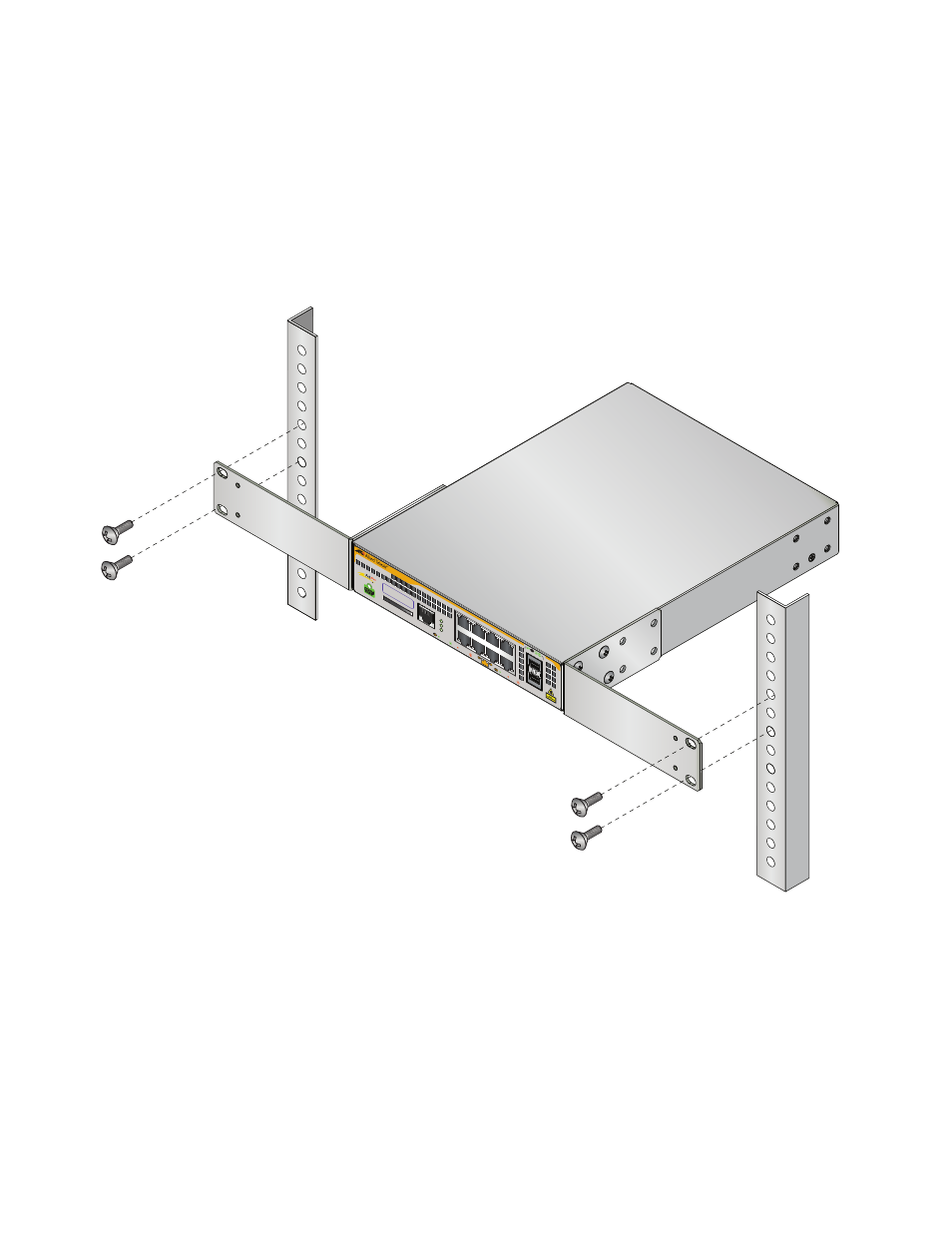

5. Mount the AT-x230-10GP switch in a 19-inch equipment rack using
four equipment rack screws (supplied with the equipment rack)
(Figure 17).
F
IGURE
17. M
OUNTING
AN
AT-
X
230-10GP
SWITCH
IN
AN
EQUIPMENT
RACK
