A.3.5 16772—tripod guy-wire kit, A.3.5 – Campbell Scientific TurfWeather Weather Station User Manual
Page 73
Appendix A. TurfWeather Equipment
second 16771 can be used to provide a wind sensor height of 255 to 312 cm
(98 to 120 in).
The 16771 includes:
•
32.5 cm (1/4 in) OD, 89 cm (35 in) long steel post with one end crimped
a. Do not use more than two 16771 extensions with the
16776 Tripod Assembly.
b. When two 16771 extensions are used, the 16772 Guy-
wire Kit should also be used.
A.3.5 16772—Tripod Guy-wire Kit
The 16772 is used to increase the tripod’s stability (see Section 5.4.3, Guy-
Wire Kit Installation). It is intended for permanent installations, installations
subject to consistently high wind speeds, or 16776 tripods using two mast
extensions.

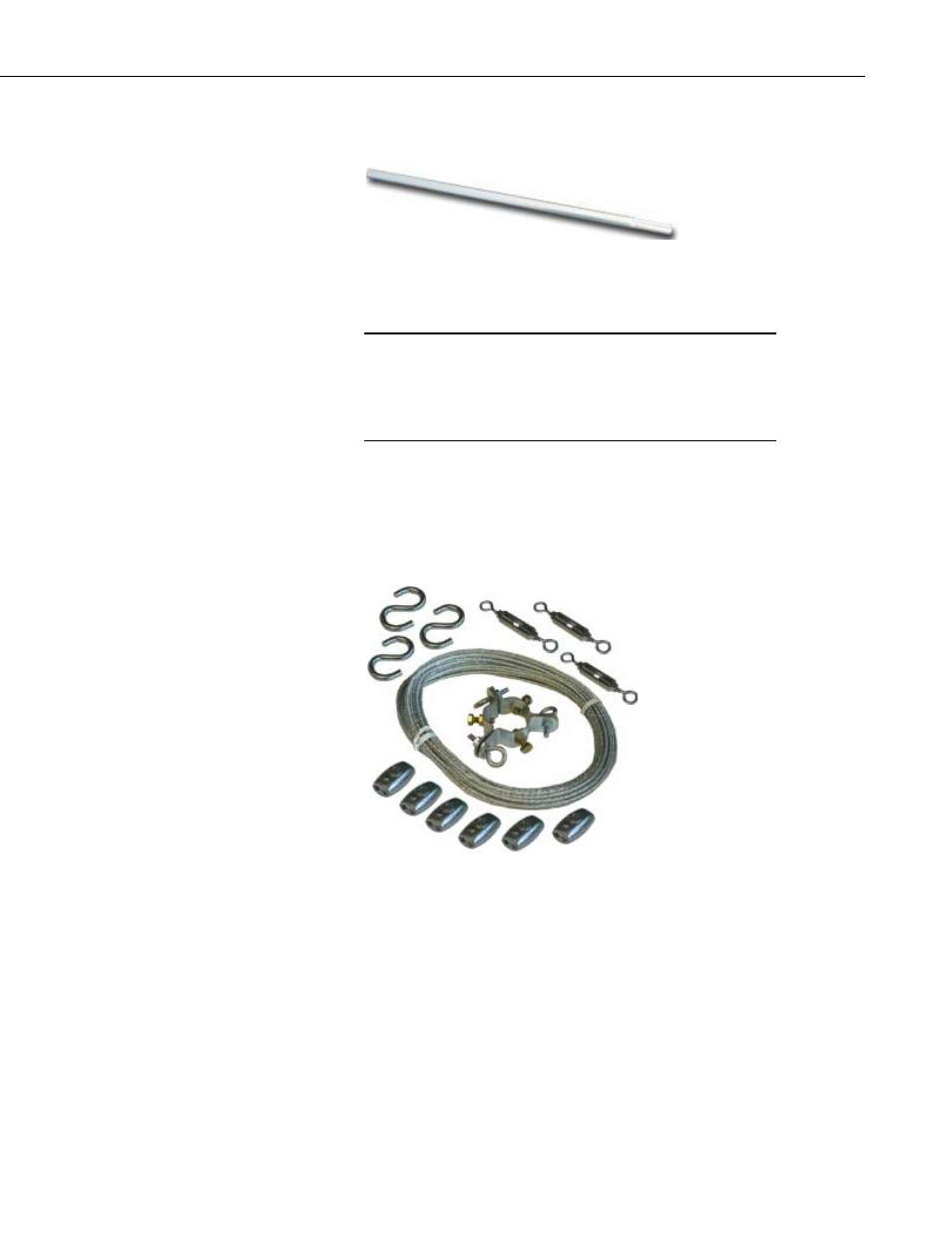

The 16772 includes:
•
Plastic-coated, steel guy-wire cable
•
Bracket for securing guy-wires to the 16776 mast
•
(3) S-hooks
•
(3) turnbuckles
•
(6) clamps
CAUTION
A-5
