Campbell Scientific 9522B Iridium Satellite Modem and COM9522B Interface Modem User Manual
Page 35
Appendix B. Hardware Installation

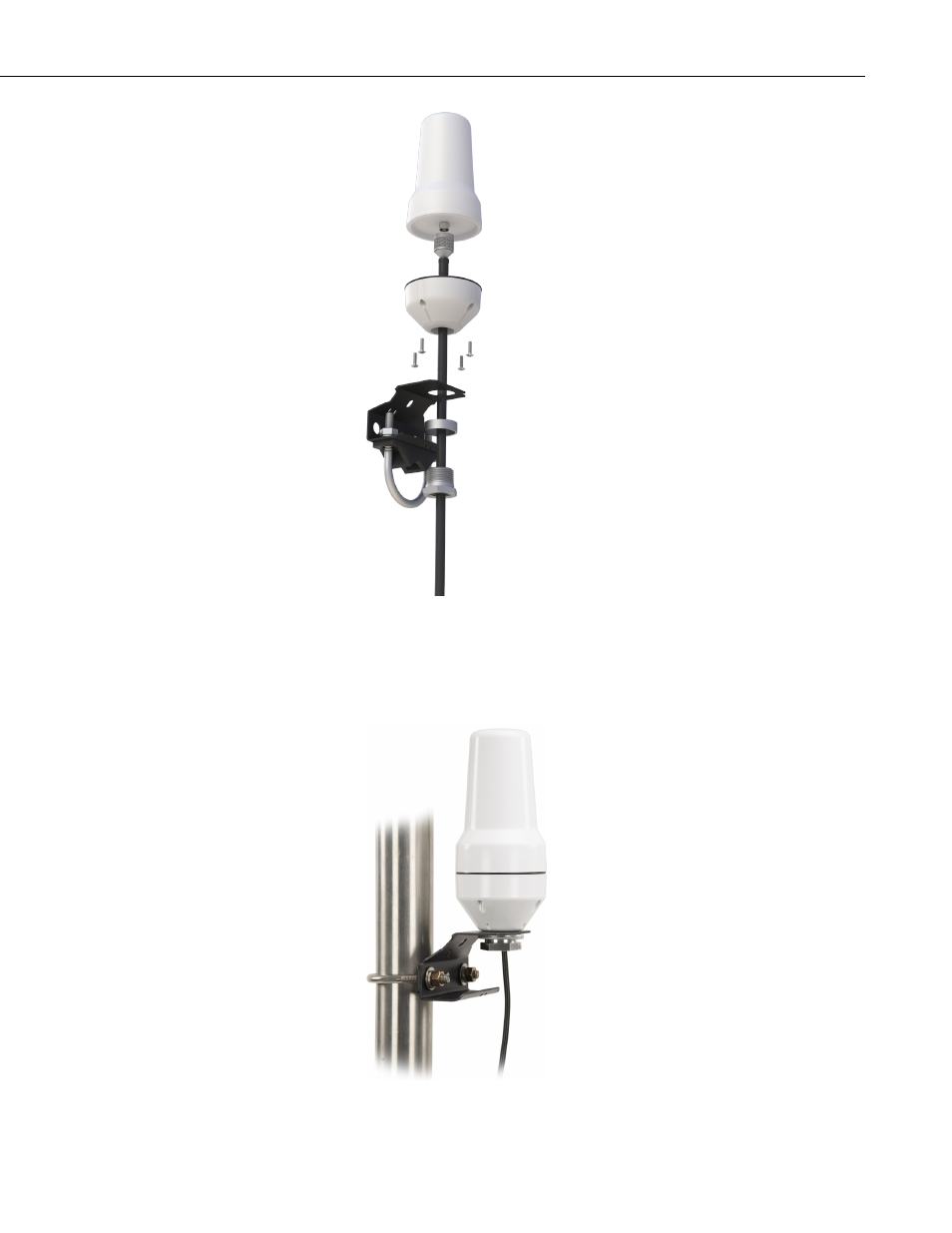

FIGURE B-4. Antenna, Mount, and Cable
Thread the antenna onto the 3/4 inch supplied nut, being sure not to cross the
threads (FIGURE B-5).
FIGURE B-5. Antenna Attached to Mount
B-3
